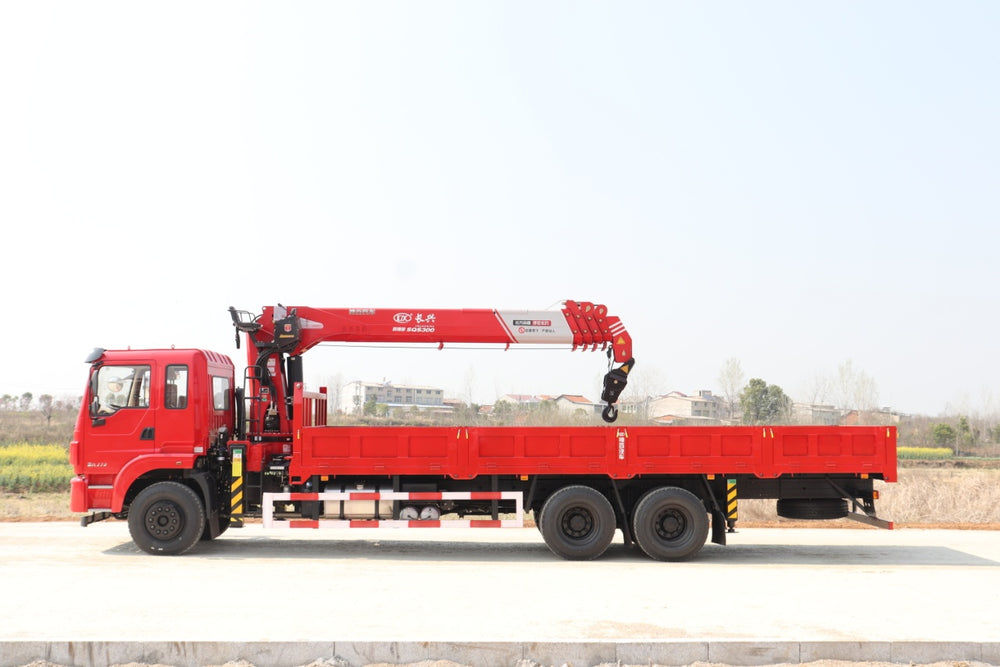

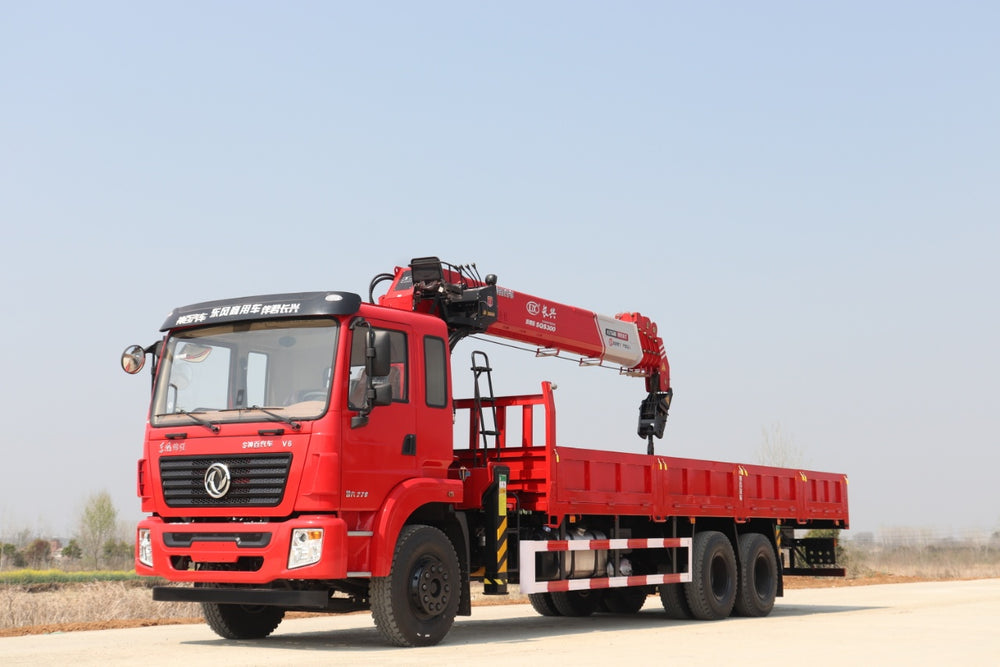

Dongfeng 6X4 | 12-Ton 5-Section Synchronized Crane Truck

Model: ABC5257JSQDJ  |  Chassis: DFV1253GSZ6D

🏗 Crane Specifications

Crane Model Changxing 12T 5-Section Synchronized Extension
Boom Length 19.9 m
Max Lift Height 22 m
Hydraulic Pump Dual pump system
Front Outriggers Dual-section composite
Rear Outriggers Single-cavity (OEM)
Operation Top-mounted + wireless remote (start/stop, auto hook retract)
Auxiliary Boom Through-type included
Radiator OEM factory-fitted

⚙️ Powertrain & Chassis

Engine Yuchai YCS06270-60 — 270 HP
Gearbox Fast 9-speed with synchronizer (9JS119TA)
Front Axle Dana 5.5T
Rear Axles Dana 11.5T dual rear axles (ratio 5.571)
Tires 11.00R20 steel wire
Fuel Tank 280L aluminum alloy
Main Frame 300mm (8+5+6), reinforced at crane mount

📐 Dimensions & Weight

Wheelbase Options 5900+1350 / 4750+1350 / 4350+1350 mm
Overall Length 12000 / 10925 / 10800 / 10300 mm
Overall Width 2550 / 2500 mm
Overall Height 3750 / 3850 / 3950 mm
Curb Weight 17,300 kg

📦 Cargo Bed Options

8500 × 2450 × 550 mm Standard long bed
7200 × 2450 × 550 mm Mid-length bed
6800 × 2450 × 550 mm Compact bed

Side panels: 3mm steel  |  Floor: 5mm diamond-plate  |  Full-fold steel crossbeams

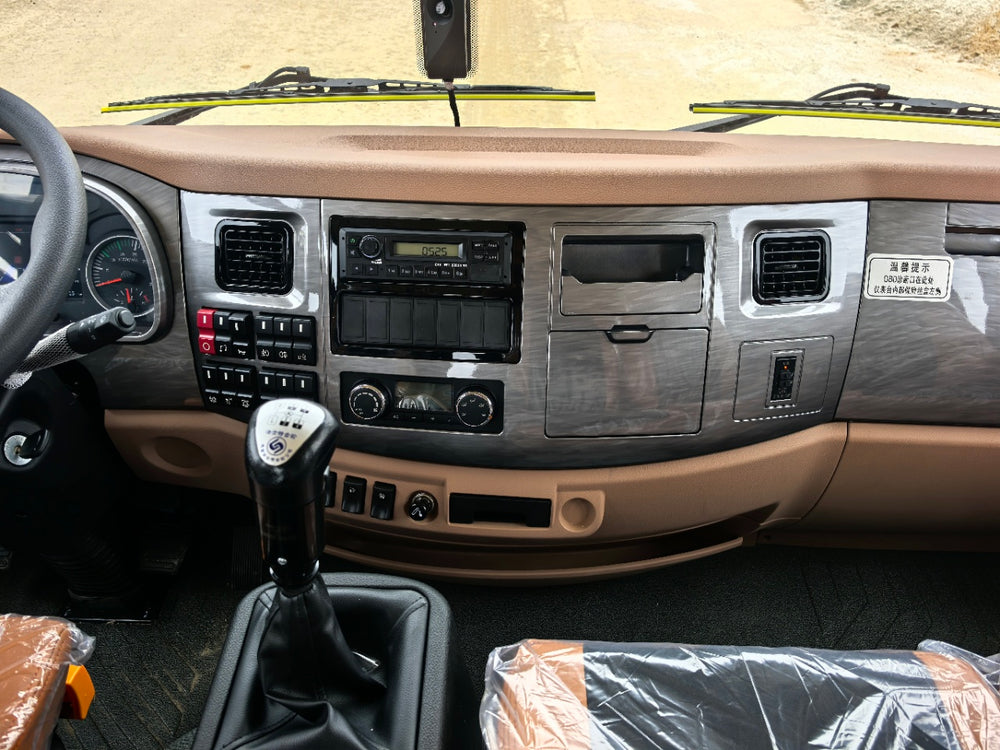

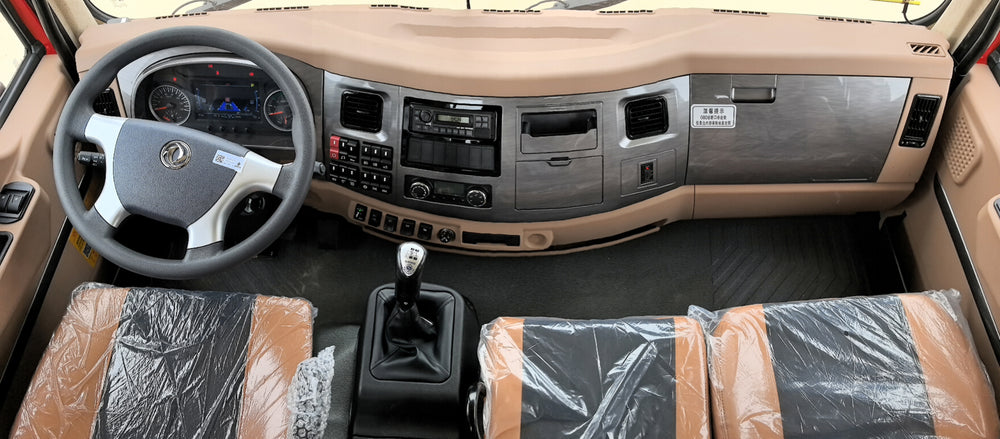

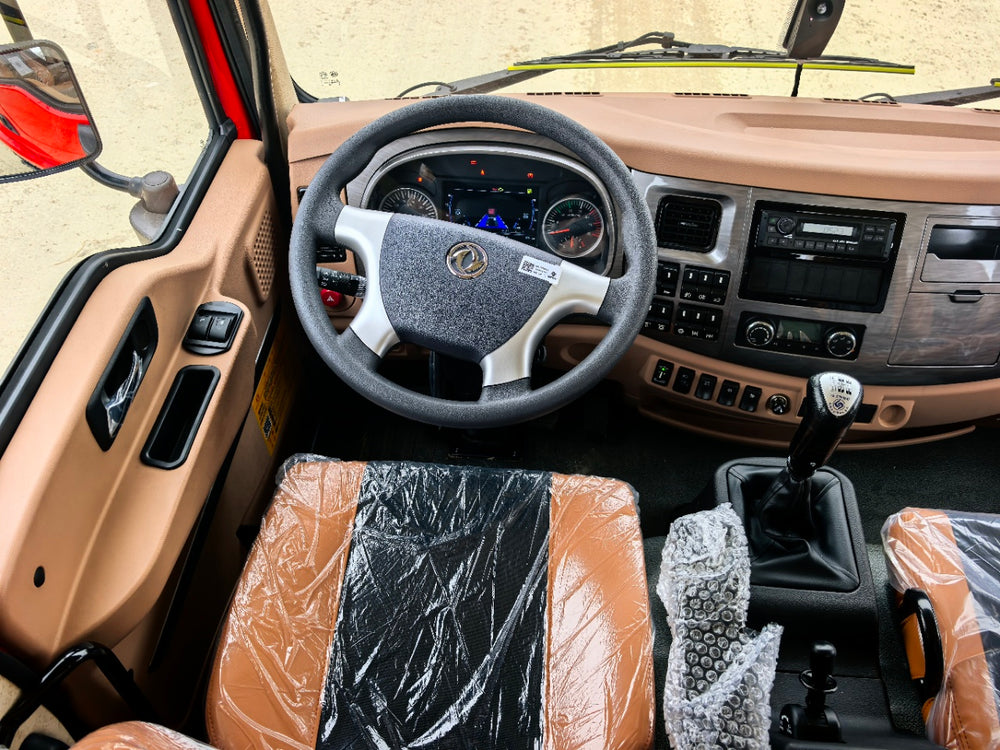

🚘 Cab — Jincheng V6 Luxury

  • Qixing Military-Grade V6 two-point floating cab with 4 overhead lifting rings
  • 3-seat layout, pass-through flat floor, thickened reinforced base (~50kg heavier than standard)
  • Huatai 6-direction adjustable suspension seat (adjustable firmness)
  • Color LCD instrument cluster | Black brushed aluminum panel
  • Electric windows | Central locking | OEM Payne A/C
  • Dual USB charging ports (fast + slow) | New-regulation dashcam
  • LED DRL | Full-steel bumper & grille | ABS
  • Seatbelt & door-open warning systems
  • Dedicated crane PTO + remote throttle
