FAW Jiefang JK6 240HP 4×2 Fresh Milk Tanker

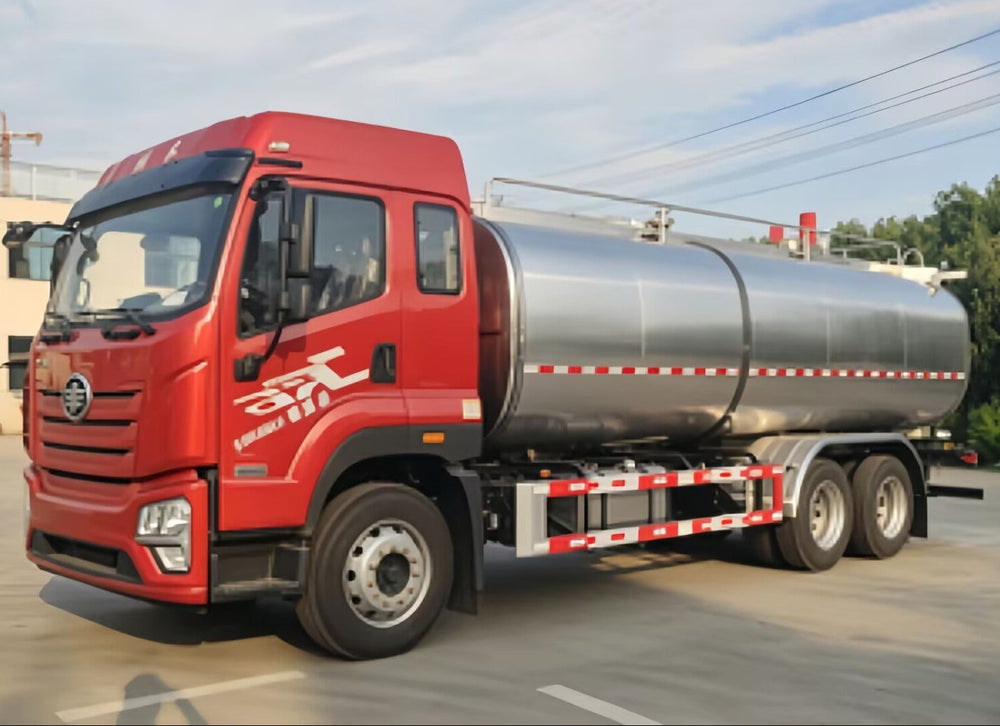

FAW Jiefang large fresh milk tank truck - front three-quarter view

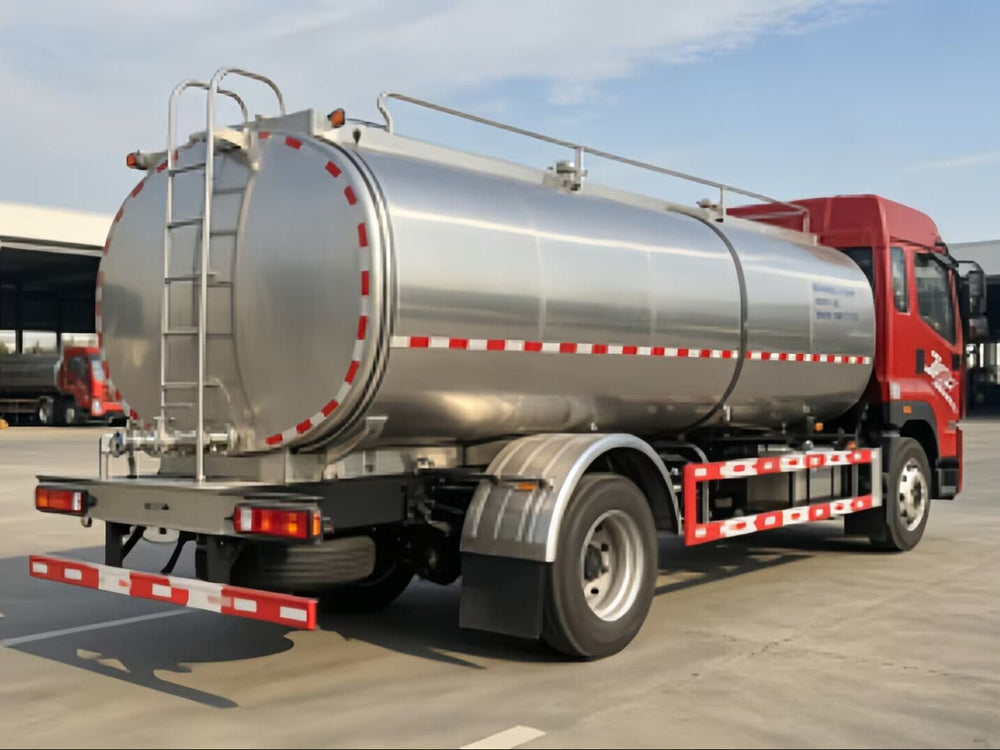

FAW Jiefang large fresh milk tank truck - rear three-quarter view

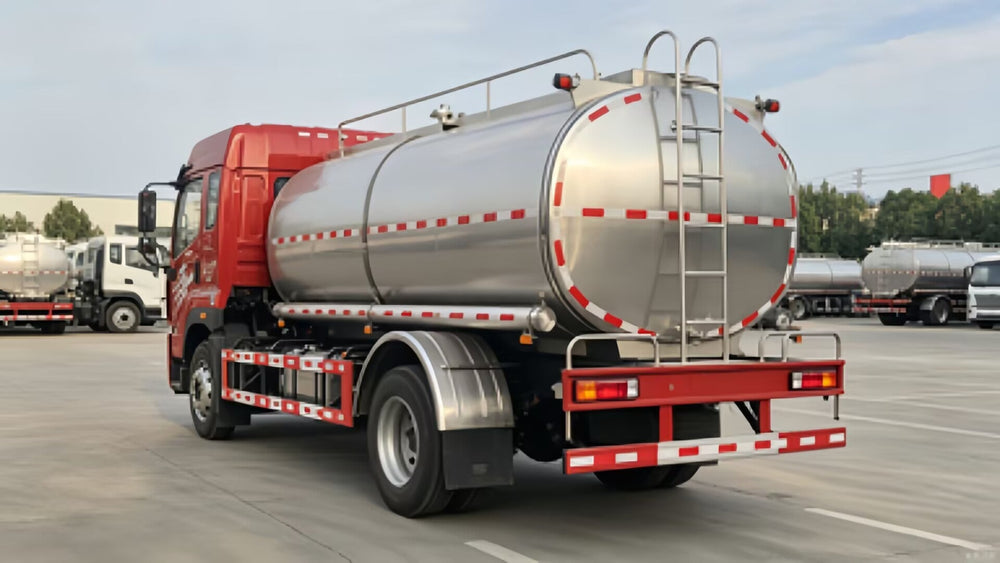

FAW Jiefang large fresh milk tank truck - rear side view
1 / 3
FAW Jiefang large fresh milk tank truck - front three-quarter view
FAW Jiefang large fresh milk tank truck - rear three-quarter view
FAW Jiefang large fresh milk tank truck - rear side view
Classification Item Technical Specifications & Details
## Chassis Basic Information Chassis Model FAW Jiefang JK6 Medium Duty Truck Chassis
Drive Mode 4×2 Rear Wheel Drive
Full Vehicle Type Food Grade Fresh Milk Transport Tank Truck
Rated Payload 10.27 tons
Gross Vehicle Weight 18000 kg
## Power Assembly System Engine Model Dachai CA6DH1-24E6 Diesel Engine
Rated Power / Horsepower 176 kW / 240 HP
Emission Standard National VI (Euro VI)
Transmission Gearbox 8-speed Manual Transmission
Fuel Type Light Diesel Oil
## Milk Tank Body Configuration Tank Volume 10.7 Cubic Meters (10.7m³)
Tank Main Material Food-grade 304 Stainless Steel, seamless integral forming, no dead corners, easy cleaning
Thermal Insulation Layer High-density Polyurethane Foam Insulation, constant temperature preservation, low temperature loss for long-distance dairy transport
Internal Structure Multi-group anti-wave baffles, effectively reduce liquid milk sloshing, improve driving stability
Tank Top Fittings Stainless steel manhole cover, anti-overflow valve, vacuum protection valve, full surrounding safety walking platform, climbing ladder
Loading & Unloading System Food-grade stainless steel centrifugal milk pump, large-diameter quick-connect pipeline, fast suction and discharge
Cleaning Function Reserved CIP in-place cleaning interface, compatible with dairy factory automatic circulation cleaning
## Chassis & Running Gear System Suspension Front & Rear Multi-leaf Spring Suspension with Hydraulic Shock Absorbers
Brake System Full Air Brake System, equipped with ABS Anti-lock Braking System
Wheel Layout Single front wheel, dual rear wheels, heavy-duty solid steel wheel hubs
Safety Auxiliary Red-white reflective warning strips, stainless steel side protection skirts, rear anti-collision buffer guard
## Cab Standard Equipment Cab Type Single Row Wide-body Comfort Cab
Exterior Configuration Integrated combination headlights, front fog lamps, large split wide-angle rearview mirrors, FAW brand logo
Interior Configuration Fabric upholstered seats, multi-speed windshield wipers, storage compartments, optional manual air conditioning, radio audio system
## Core Vehicle Advantages Selling Highlights 1. Original Dachai 240HP high-torque engine, strong climbing power, low fuel consumption

2. 10.7m³ large-capacity food-grade stainless steel tank, meet international food transportation sanitation standards

3. Thickened thermal insulation layer ensures raw milk constant temperature freshness for long haul

4. Built-in anti-wave partitions avoid milk loss and improve driving safety

5. Complete CIP self-cleaning structure, reduce manual cleaning labor cost

6. Large 10.27-ton rated load capacity, high efficiency for dairy farm milk collection and factory distribution
