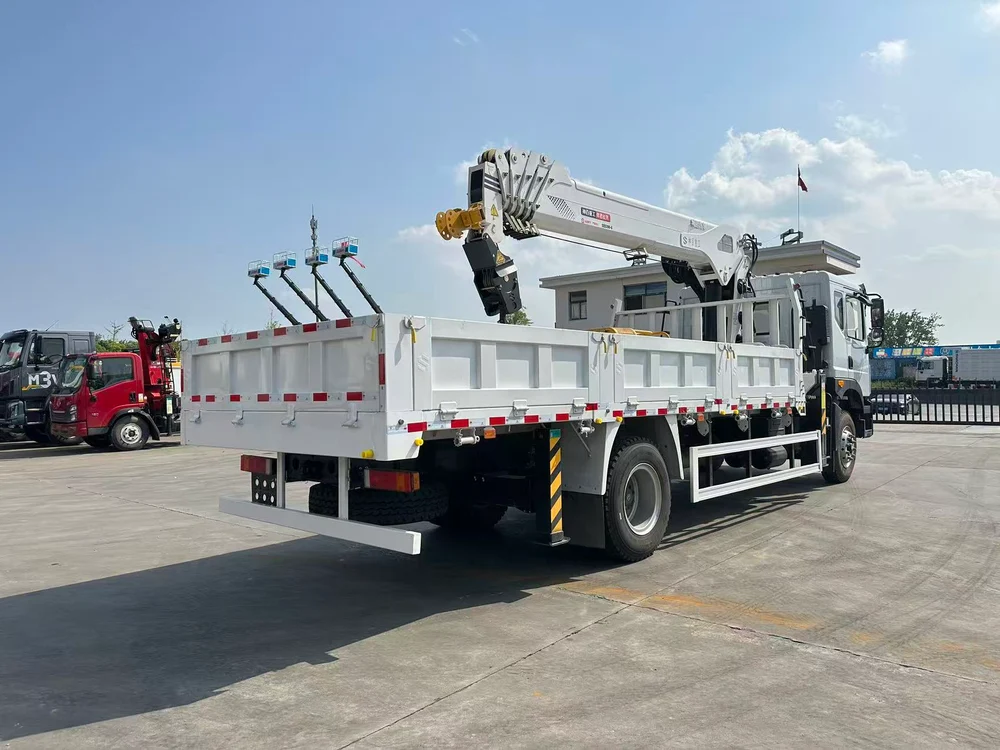

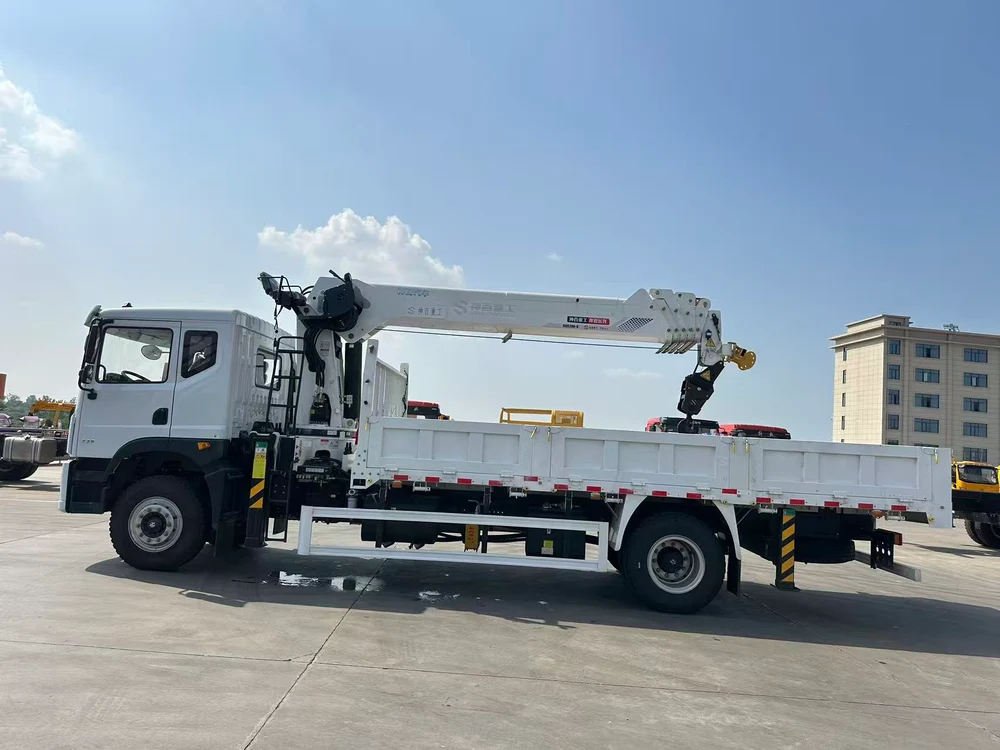

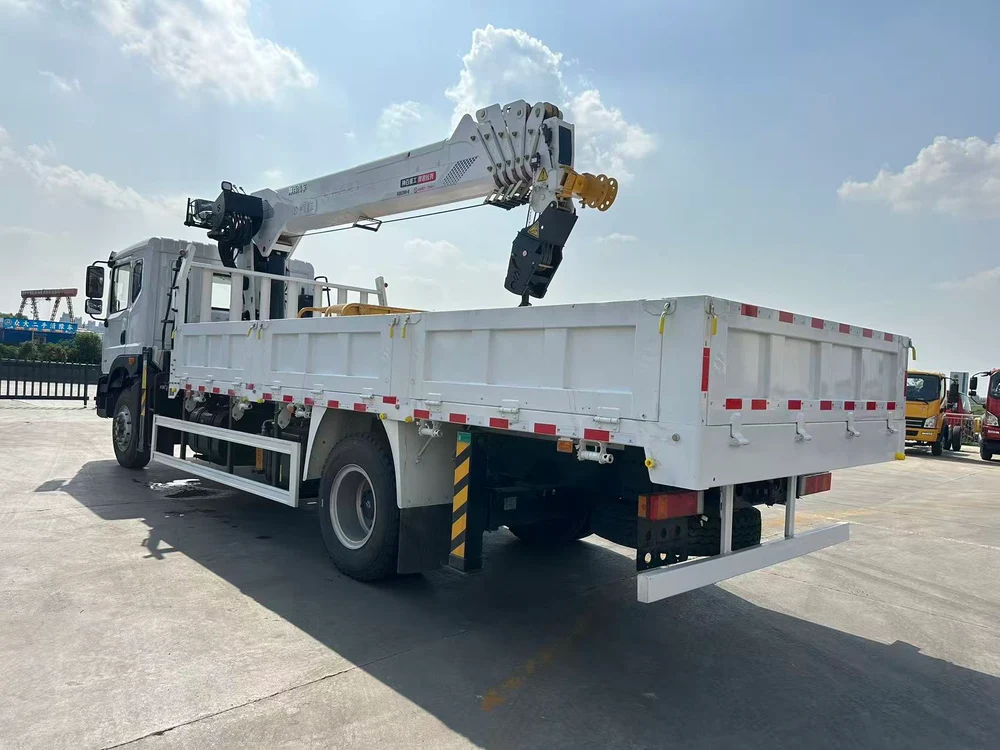

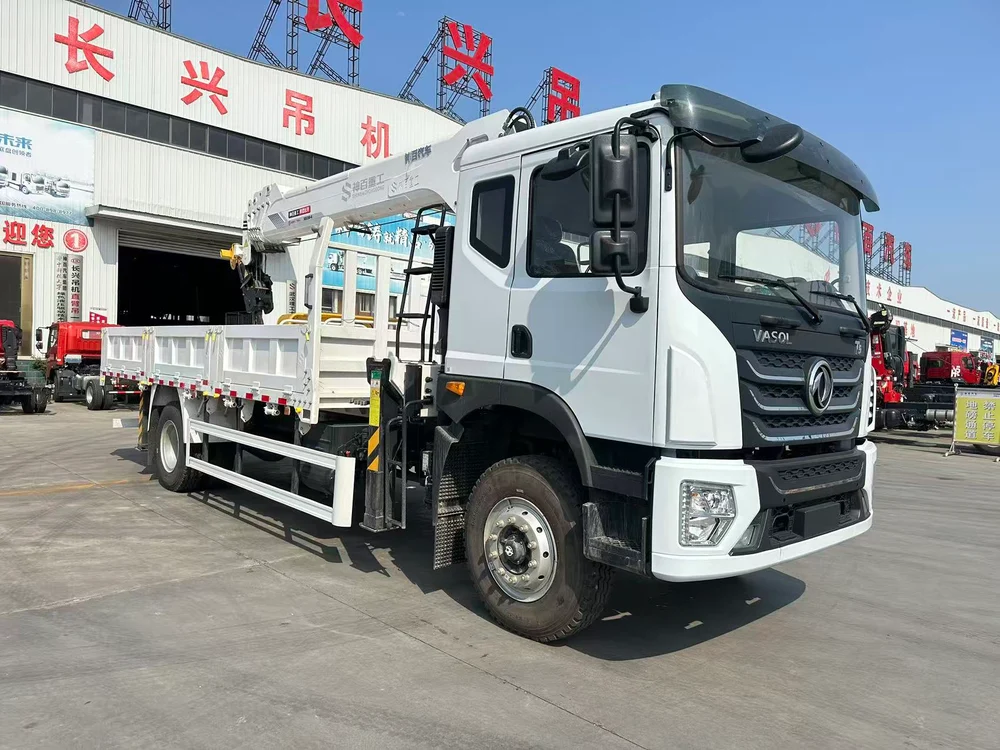

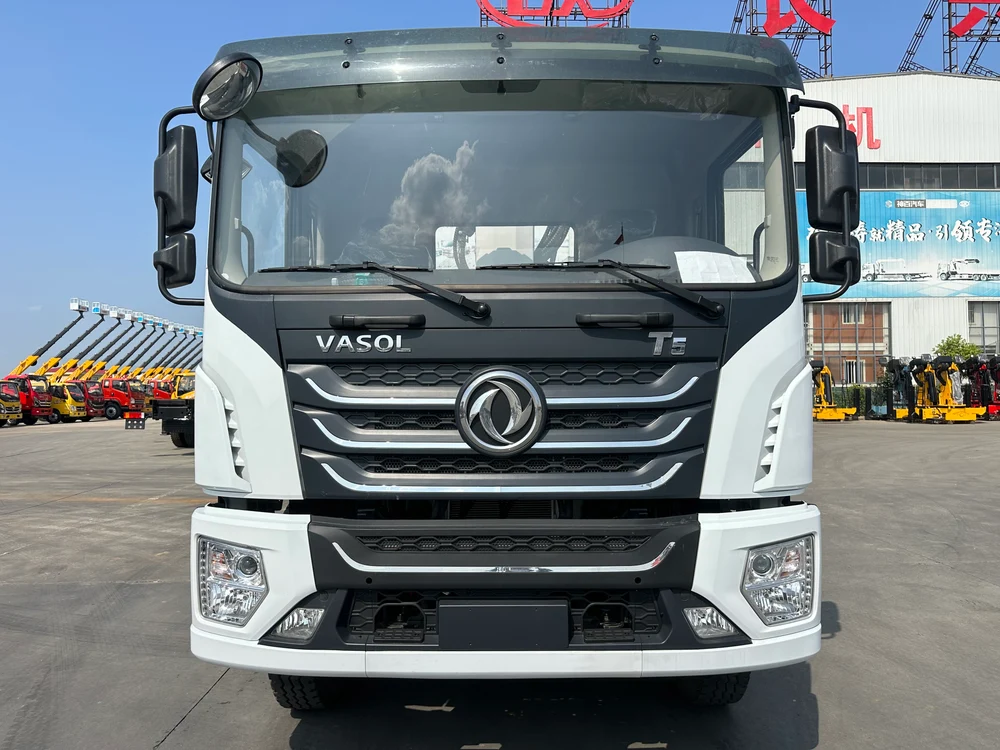

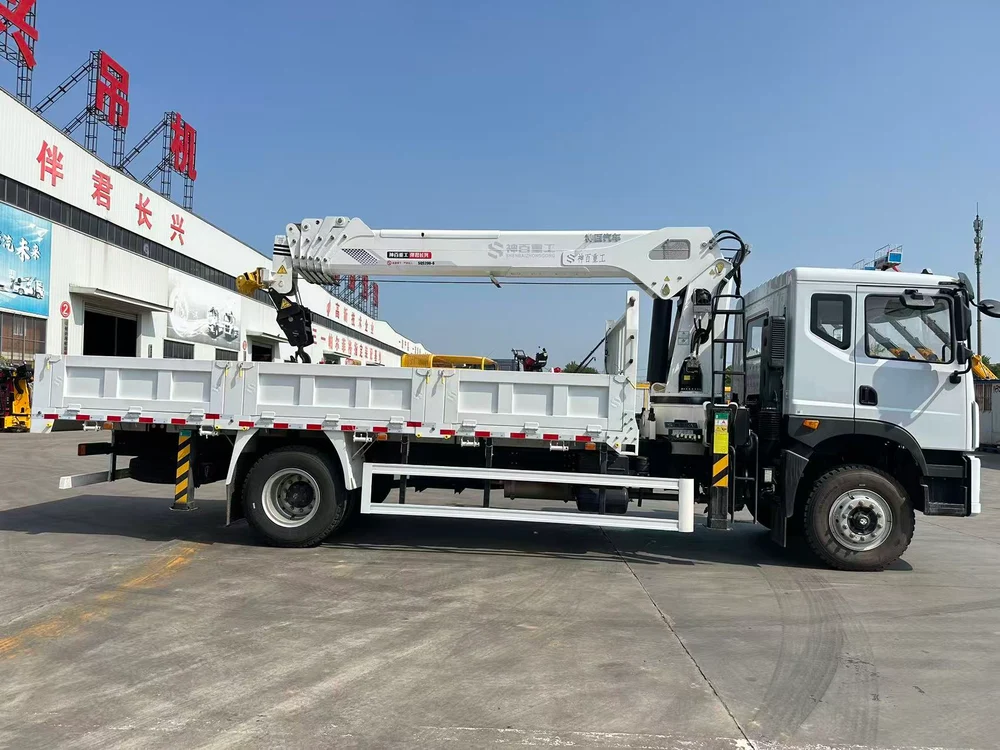

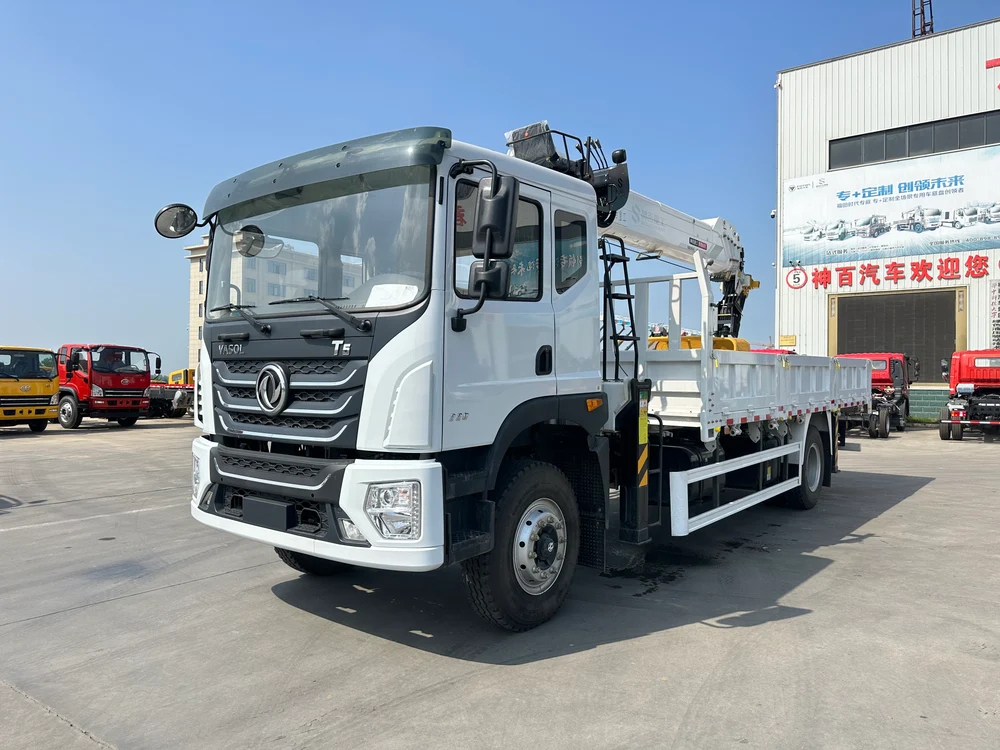

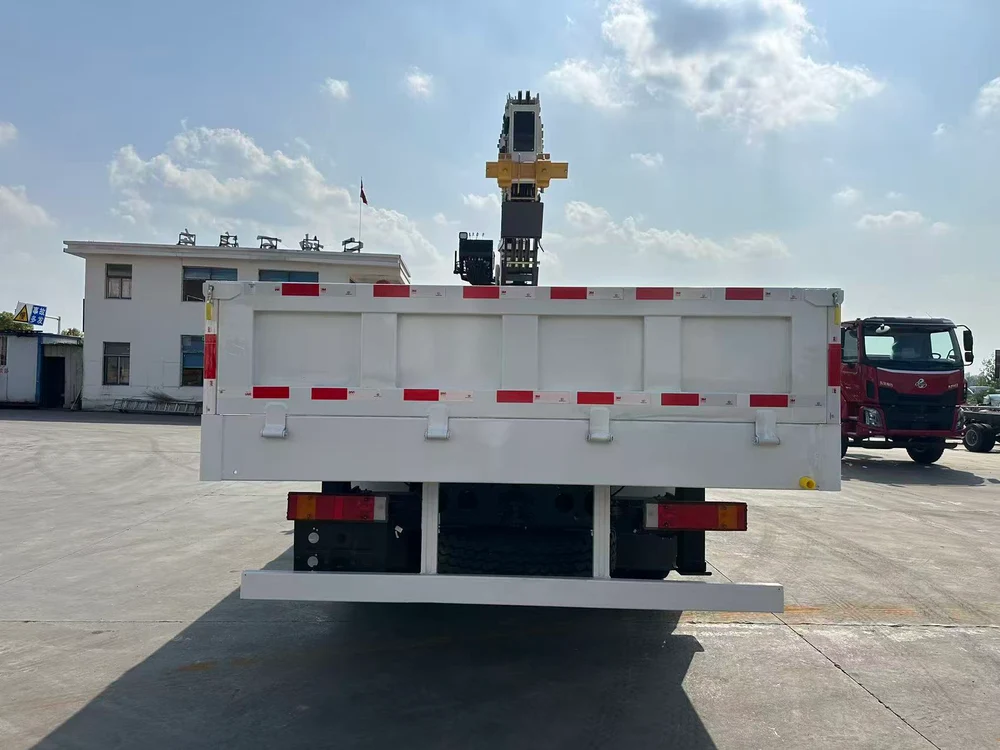

Dongfeng Euro3 4×2 Changxing 8Ton 6-section Telescopic Crane
Request a Quote Now
| Category | Specification Details | |
|---|---|---|
| （Euro3）Chassis Basic | ||
| Chassis Model | Original Dongfeng 4×2 Single Axle, Euro3 emission standard | |
| Drive Form | 4×2 Rear Wheel Drive | LHD/RHD optional for Central Asia |
| Wheelbase | 5100mm（4500mm） | |
| Overall Dimension | 8980×2500×3720mm | |
| Cargo Box Size | 5700×2380×600mm | |
| GVW/Curb/Payload | 15800KG / 10950KG / 4550KG | |
| Engine（Euro3） | ||
| Engine Model | Yuchai YC6J180-33 Inline-6 Diesel,Euro3 | |
| Power/Displacement | 132kW(180HP)/6.1L | |
| Max Torque | 650N·m@1400-1600rpm | |
| Fuel Tank | 240L Steel Fuel Tank | |
| Transmission | ||
| Gearbox | FAST 6-speed Manual Transmission | |
| Axle | Front 5T / Rear 10T Heavy-duty Rear Axle | |
| Tyre | 10.00R20 18PR All-steel Radial Tire(6pcs) | |
| Frame | 300mm thickened reinforced frame | |
| Brake | Full air brake + exhaust brake | |
| Cabin | ||
| Spec | Single row/half-row optional, factory A/C, power window | |
| Changxing Crane | ||
| Crane Brand | Shenbai Heavy Industry 8T 6-section telescopic boom | |
| Rated Lifting | 8Ton@2m min radius | |
| Max Lifting Height | 21.8m（6 节全伸） | |
| Max Working Radius | 19.8m | |
| Arm Structure | 2/3rd boom single extension,4/5/6th synchronous stretch | |
| Rotation | 360° full hydraulic continuous rotation | |
| Hydraulic System | Dual gear pump,6-control multi-way valve, domestic high-standard hydraulic parts | |
| Outrigger | Front composite double outrigger, full-span 8.2m lateral span; fixed rear outrigger | |
| Operation Mode | Under-cab control + optional top seat operation | |
| Crane Weight | 3450KG | |
| Optional | ||
| Upgrade | Import hydraulic valve group, winch speed control, self-unloading cargo box |
