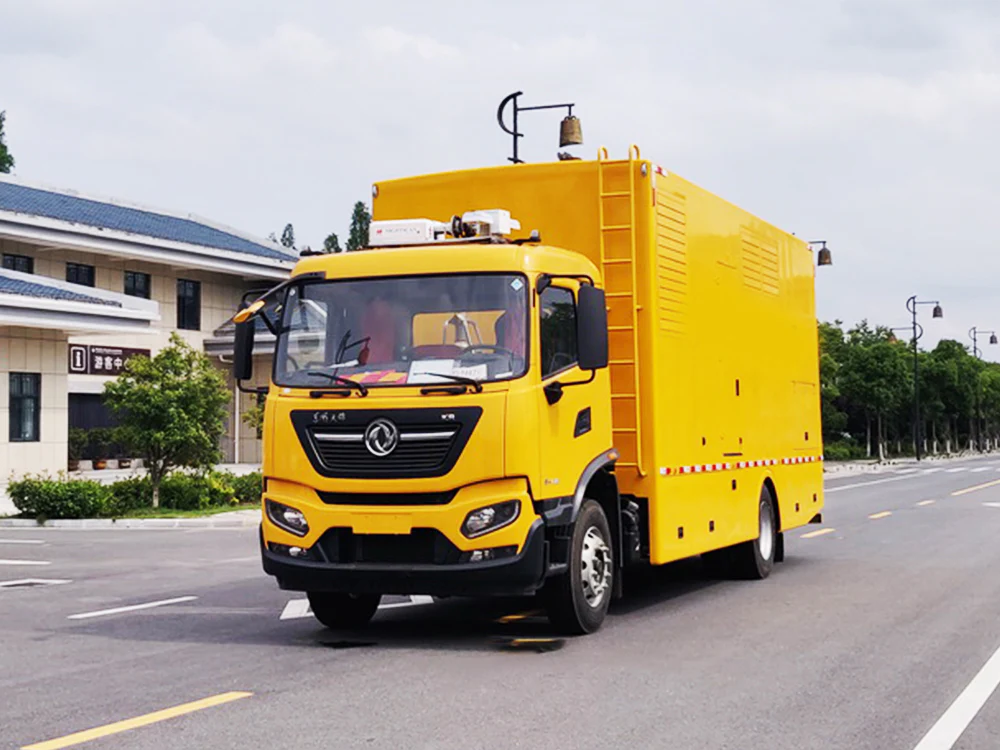

Dongfeng Kinland 4×2 Emergency Drainage Rescue Vehicle

Dongfeng Kinland 4×2 Emergency Drainage Rescue Vehicle
1 / 1
Dongfeng Kinland 4×2 Emergency Drainage Rescue Vehicle
Configuration Item Specification & Parameter
Vehicle Basic Parameters
Vehicle Model Dongfeng Tianjin 4×2 Drainage & Rescue Vehicle
Rated Drainage Flow 300m³/h ~ 1000m³/h (Optional)
Maximum Suction Lift ≥ 6m
Rated Head ≥ 20m
Drive Type 4×2 (Single Rear Axle)
Overall Dimensions (L×W×H) ≤ 9500mm × 2550mm × 3600mm
Curb Weight ≤ 12500kg
Gross Vehicle Weight ≤ 18000kg
Maximum Speed ≥ 90km/h
Minimum Turning Radius ≤ 8.5m
Gradeability ≥ 25%
Operating Temperature Range -40℃ ~ +50℃
Chassis System
Chassis Model Dongfeng Tianjin DFL1180BX6
Cab Type D530 Integrated Cab, Air Suspension Seat, Air Conditioning
Number of Axles 2
Wheelbase 4200mm
Tire Specification 11.00R20 Radial Tires (6+1 Spare)
Front Axle Rated Load ≤ 6500kg
Rear Axle Rated Load ≤ 11500kg
Suspension System Front: Leaf Spring + Shock Absorber; Rear: Leaf Spring + Stabilizer Bar
Brake System Dual Circuit Air Brake, ABS, ASR, Exhaust Brake
Steering System Hydraulic Power Steering
Engine System
Engine Brand Dongfeng Cummins / Dongfeng Chaochai (Domestic Top Tier)
Engine Type 4-Stroke, Water-Cooled, Turbocharged, Intercooled Diesel Engine
Number of Cylinders Inline 6 Cylinders
Displacement ≥ 6.7L
Rated Power 180KW ~ 320KW @ 2200rpm
Rated Speed 2200rpm
Maximum Torque ≥ 1100N·m @ 1200-1600rpm
Fuel System Electronic Fuel Injection, High Pressure Common Rail
Cooling System Forced Water Cooling, Large Capacity Radiator
Air Intake System Dry Air Filter, Double Stage Filtration
Exhaust System Vertical Exhaust Pipe, Spark Arrestor, Muffler
Fuel Tank Capacity ≥ 300L
Fuel Consumption ≤ 195g/KW·h
Emission Standard China VI / Euro V (Optional)
Drainage & Pumping System (Core)
Pump Brand Domestic Top Tier Pump Manufacturer / Imported Brand (Optional)
Pump Type Self-Priming Centrifugal Pump, Non-Clogging Design
Impeller Material High Chromium Cast Iron / Stainless Steel (Optional)
Pump Casing Material Ductile Iron
Rated Flow 300m³/h / 500m³/h / 800m³/h / 1000m³/h (Optional)
Rated Head 20m / 25m / 30m (Optional)
Maximum Suction Lift 6m (Static Water)
Self-Priming Time ≤ 60s (For 6m Suction Lift)
Drive Mode Engine Direct Drive / Hydraulic Drive (Optional)
Pipeline System Large Diameter Suction & Discharge Pipes, Quick Connect Couplings
Pipe Diameter DN200 / DN250 / DN300 (Corresponding to Flow)
Valve System Electric Control Gate Valves, Check Valves, Ball Valves
Filter System Suction Strainer, Double Stage Filtration, Anti-Clogging Design
Power Distribution & Control System
Control System Type Intelligent Digital Integrated Control System
Display Unit 7-inch Color Touch Screen, Real-time Data Display
Monitoring Parameters Engine Speed, Oil Pressure, Water Temperature, Fuel Level, Pump Flow, Pressure, Vacuum Degree, Battery Voltage
Protection Functions Overpressure, Underpressure, Overflow, Low Oil Pressure, High Water Temperature, Over Speed, Suction Loss Protection, Pipeline Blockage Protection
Alarm Functions Sound & Light Alarm for Abnormal Parameters, Fault Code Display
Starting System 24V DC Electric Starting, Dual Battery Pack (≥ 150Ah)
Emergency Stop Multiple Emergency Stop Buttons (Cab, Compartment, Outside)
Operation Mode Local Manual Operation, Remote Operation, Automatic Operation (Optional)
Remote Monitoring Support 4G Remote Monitoring, GPS Positioning, Operation Data Upload (Optional)
Compartment & Installation System
Compartment Structure All-Steel Welded Frame, Waterproof, Dustproof, Soundproof, Heat Insulation
Compartment Material Outer: Cold Rolled Steel Plate; Inner: Galvanized Steel Plate; Middle: Fireproof Sound-Absorbing Cotton
Sound Insulation Performance Noise Level ≤ 78dB(A) @ 1m, Rated Load
Ventilation System Forced Ventilation with Large Capacity Fans, Air Inlet/Outlet with Dust and Water Proof Filters
Rainproof Design Rainproof Louvers, Sealed Compartment Doors, Drainage System, Anti-Ponding Design
Installation Structure High Strength Steel Chassis Frame, Vibration Damping Mounts for Pump Unit and Engine
Compartment Doors Double Opening Rear Doors, Side Maintenance Doors, Lockable, Anti-Theft Design
Lighting System LED Interior Lighting, Work Lights, Emergency Lighting, Flood Lights for Night Operation
Hose Management Hose Compartment, Hose Reels, Quick Coupling Storage, Fixing Brackets
Lifting Points Multiple Lifting Lugs for Whole Vehicle Lifting
Safety & Protection System
Fire Protection System Automatic Fire Detection & Suppression System, Dry Powder Fire Extinguishers
Grounding System Reliable Grounding Device, Grounding Cable, Grounding Rod for Static Elimination
High Pressure Protection Pressure Relief Valve, Pipeline Burst Protection, Overpressure Alarm
Anti-Corrosion Protection Whole Vehicle Sandblasting, Anti-Rust Primer, Anti-Corrosion Paint, Salt Spray Resistant
Lightning Protection Lightning Protection Device for Electrical System
Safety Marking Standard Safety Warning Signs, Operation Instructions, Reflective Markings, Anti-Slip Stickers
Cab Safety Airbag, Seat Belt, Crash Protection Structure, Rollover Protection
Operation Safety Interlock Protection for Pump and Engine, Safety Guard for Rotating Parts
Optional Configuration
Pump Upgrade Higher Flow Pump (up to 2000m³/h), Higher Head Pump, Stainless Steel Pump for Corrosive Water
Operation System Wireless Remote Control, Automatic Drainage Control, PLC Intelligent Control System
Hose Configuration Large Diameter Suction & Discharge Hoses, Quick Connect Couplings, Hose Reels, Hose Storage Rack
Power Supply System On-board Generator Set (5KW-30KW), Independent Power Supply for Auxiliary Equipment
Low Noise Package Super Soundproof Compartment, Muffler, Noise Reduction to ≤ 68dB(A) @ 1m
Fuel Tank Upgrade Large Capacity Fuel Tank (≥ 500L), Long Endurance Operation
Cold Climate Package Engine Pre-Heating System, Compartment Heating System, Battery Insulation, Anti-Freezing System for Pipes
Hot Climate Package Enhanced Cooling System, Compartment Ventilation, Sun Protection Coating, Heat Insulation Upgrade
Video Monitoring System Interior & Exterior Cameras, DVR, Display, Night Vision Camera
Auxiliary Equipment Water Quality Detection Device, Sludge Suction Device, High Pressure Cleaning Device, Lighting Tower
