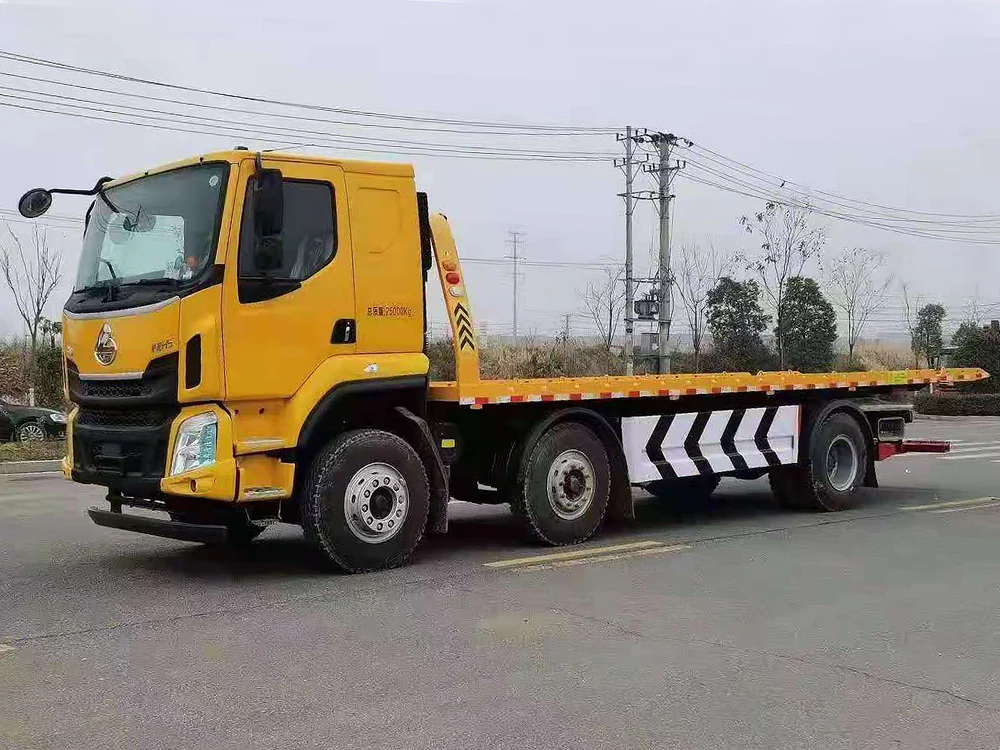

DONGFENG LIUZHOU MOTOR 6×2 (3-AXLE) Wrecker Truck
Configuration Item Parameter Value
1. Basic Vehicle Parameters
Product Name DONGFENG LIUZHOU MOTOR 6×2 (3-AXLE) Integrated Tow & Crane Wrecker Recovery Truck
Gross Vehicle Weight 24500kg
Curb Weight 14800kg
Overall Dimensions 12345×2550×3150mm
Wheelbase 2050+5350mm
Maximum Design Speed 89km/h
Maximum Gradeability 30%
Emission Standard China VI
Cab Capacity 3 Persons
Approach Angle / Departure Angle 20° / 6°
Front Overhang / Rear Overhang 1445mm / 3500mm
Axle Configuration 6×2 (3-Axle, 1 front steering axle + 1 steering drive axle + 1 rear drive axle)
2. Chassis Configuration
Chassis Model LZ1253H5CCT
Engine Model Yuchai YCK05260-61
Engine Type Inline 4-cylinder, 4-stroke, Water-cooled, Turbocharged Intercooled Diesel Engine
Maximum Horsepower 260HP (191kW)
Maximum Torque 950N·m @ 1200-1600rpm
Gearbox Model Fast JS95TE-C 9-speed Manual Gearbox with Overdrive
Power Take-off (PTO) Flange-type Hydraulic PTO, Matched with Gearbox
Front Axle 2×4.2T Forged I-beam Steering Front Axle, Disc Brake
Rear Axle 153/4.444 Single-stage Reduction Rear Drive Axle, 10-ton Grade, Drum Brake
Axle Ratio 4.444
Frame Structure Double-layer Reinforced Frame (8+8mm Thickness, 264mm Width)
Suspension System Front and Rear Reinforced Multi-leaf Springs (11/11/12+9 Leaves)
Tire Specification 10.00R20 18PR Steel Radial Tires
Braking System Dual-circuit Air Brake System, ABS (4S/4M), Automatic Brake Adjusting Arm
Steering System Hydraulic Power Steering with Integral Steering Gear
Fuel Tank 350L Aluminum Alloy Fuel Tank
Cab Configuration Liuzhou Motor M31B Wide-body Row-half Cab, Mechanical Semi-floating Suspension, Leather Airbag Driver's Seat, Factory Air Conditioning, Electric Windows, Central Locking, Electric Heated Rearview Mirrors, Multifunctional Steering Wheel, Cruise Control, Driving Recorder, V+ Telematics 3.0 System
3. Superstructure Special Configuration
Superstructure Model 16T Integrated Wrecker and Crane Superstructure
Crane Boom 2-section Hexagonal High-strength Steel Plate Telescopic Boom, 360° Full Rotation, Planetary Reduction Mechanism
Maximum Lifting Capacity of Crane 16 Tons
Maximum Working Radius of Crane Boom 12.5m
Tow Arm 3-section Telescopic and Liftable Tow Arm, High-strength Steel Welded Structure
In-situ Lifting Capacity of Tow Arm 16 Tons
Maximum Lifting Capacity at Full Extension 6.5 Tons
Maximum Towing Capacity 25 Tons
Maximum Traction Capacity of Drawbar 50 Tons
Effective Length of Tow Arm 1350mm-2800mm
Telescopic Stroke of Tow Arm 1750mm
Hydraulic System Imported Hydraulic Valve Group and Seals, Bilateral Linkage Operation Device, Wireless Remote Control Operation, Overload Protection Device
Hydraulic Winch 2 Sets of 10-ton Hydraulic Winches, 45m Steel Wire Rope (Diameter 18mm), with 20-ton Safety Hooks
Outriggers 4 Double-cavity Hydraulic Outriggers, Front Outriggers are Foldable, with Mechanical Locking Device
Flatbed 12P12 Pattern Steel Flatbed (8mm Thickness), Main Board Tail Can Be Hydraulically Flipped, Total Length 9.2m, Width 2.55m
Compartment Split-type Tool Compartment, Welded with High-strength Steel Plate, with Lockable Doors
Counterweight 1.5-ton Counterweight Installed on Front Bumper
Standard Configuration 1 Set of U-type Tire Holding Device, 5 Pairs of Tow Forks, 1 Pair of Tow Fork Seats, 2 Chain Hooks, 1 Hand Wash Box, 1 Set of Auxiliary Light Assembly, 1 Set of Auxiliary Brake Air Pipe Assembly, 1 LED Long-row Engineering Warning Light, Reversing Image System, 1 Set of On-board Special Tools, 4 Nylon Binding Belts, 2 Auxiliary Small Wheels
4. Performance Parameters
Maximum Lifting Height of Crane Boom 11.5m
Slewing Angle of Crane Boom 360° Full Continuous Rotation
Upward/Downward Inclination Angle of Tow Arm 7° / -7°
Folding Angle of Tow Arm -7° ~ 90°
Maximum Ground Clearance of Fully Retracted Tow Arm Upper Surface 850mm
Minimum Limiting Speed of Steel Wire Rope 5m/min
Rated Working Pressure of Hydraulic System 16MPa
Maximum Flow Rate of Hydraulic System 80L/min
Operating Temperature Range -20℃ ~ +45℃
