1. Complete Vehicle Basic Parameters

Parameter Value
Vehicle Type Guardrail Cleaning Truck
Complete Vehicle Model CL5080GQX6HL
Gross Vehicle Weight 8275 kg
Rated Load Capacity 3430 kg
Curb Weight 4650 kg
Number of Axles 2
Axle Load Distribution 3000 kg / 5275 kg
Cab Seating Capacity 3 persons
Fuel Type Diesel
Maximum Speed 105 km/h
Chassis Model BJ1088VEJEA-FK

2. Dimension & Wheel Parameters

Parameter Value
Overall Dimension (L×W×H) 6070 × 2260 × 3200 / 2600 mm
Wheelbase 3360 mm
Front Overhang / Rear Overhang 1130 mm / 1580 mm
Approach Angle / Departure Angle 20° / 15°
Front Track Width 1705 / 1730 mm
Rear Track Width 1615 / 1630 / 1715 / 1800 mm
Tire Specification 7.50R16LT 14PR
Number of Tires 6

3. Powertrain System

Parameter Value
Engine Model F2.8NS6B156
Engine Power Foton Cummins 156 HP

4. Water Tank System

Parameter Value
Tank Volume 3.5 – 4 m³
Tank Material Q235 Carbon Steel
Tank Wall Thickness 4 mm
Standard Functions Guardrail cleaning, road marking line cleaning, universal nozzle for guardrail base flushing

5. Auxiliary Engine & High-Pressure System

Parameter Value
Auxiliary Engine Model Yunnei Auxiliary Engine
Auxiliary Engine Rated Power 42 kW / 2400 r/min
Auxiliary Engine Working Speed 2400 r/min
High-Pressure Pump Type High-Pressure Water Pump
High-Pressure Pump Pressure 0 – 70 MPa
High-Pressure Pump Speed 800 – 1000 r/min
Nozzle Type High-Pressure Nozzle
High-Pressure Water Flow 38.5 L/min

6. Guardrail Cleaning Brush System

Parameter Value
Cleaning Brush Quantity 4 brushes

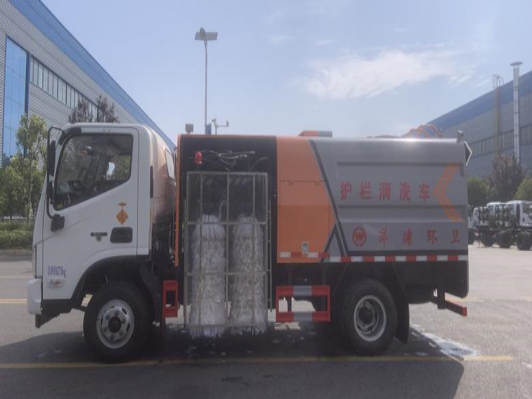

Brush Arrangement Mounted on one side of the frame behind the cab, double-sided cleaning design
Cleaning Brush Length 1200 mm
Brush Disc Diameter φ55 cm
Brush Discs per Roller 55 pieces
Brush Material Pure adhesive cloth strips
Brush Motor Speed 150 – 280 r/min
Cleaning Height Range 0.1 – 1500 mm
Working Cleaning Speed 3 – 15 km/h
Brush Adjustment Hydraulically driven lifting; inner/outer position auto-adjustable via hydraulic cylinder
Conical Brush Feature Conical brush discs at bottom for road marking line cleaning
Control Mode Electro-hydraulic control; all operations performed inside the cab
Nozzle Quantity 6 – 8 nozzles before and after brushes
Water System Dual high/low pressure water circuit system for flexible selection

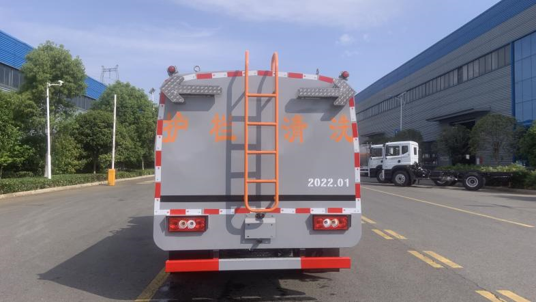

Safety Feature Vehicle speed reduction device during cleaning operation; LED arrow warning light at rear

7. Working Principle

Item Description
Cleaning Process Two-flush + two-brush double-sided simultaneous cleaning: front nozzles pre-wet guardrail → middle roller brushes scrub → rear nozzles rinse residual dust
Operation Flow Vehicle drives along guardrail at constant speed; auxiliary engine drives hydraulic pump; horizontal telescopic cylinder opens roller mechanism; lifting cylinder adjusts height; swing cylinder rotates outer roller 90° to clamp guardrail; gap adjustment cylinder sets distance; water pump activates spraying; roller motor drives rotation for continuous cleaning
Transition Maneuver At guardrail end or when relocating mid-section: swing cylinder rotates outer roller 90° outward, then vehicle drives away from guardrail

8. Chassis Standard Configuration

Parameter Value
Chassis Brand Foton Chassis
Steering System Power Steering
Cab Interior Air Conditioner
Brake System Air Brake
Engine Cummins 156 HP
Tires 7.50 Steel Wire Radial Tires
