FOTON Aumark R Series 240HP 9.85m Box Cargo Truck

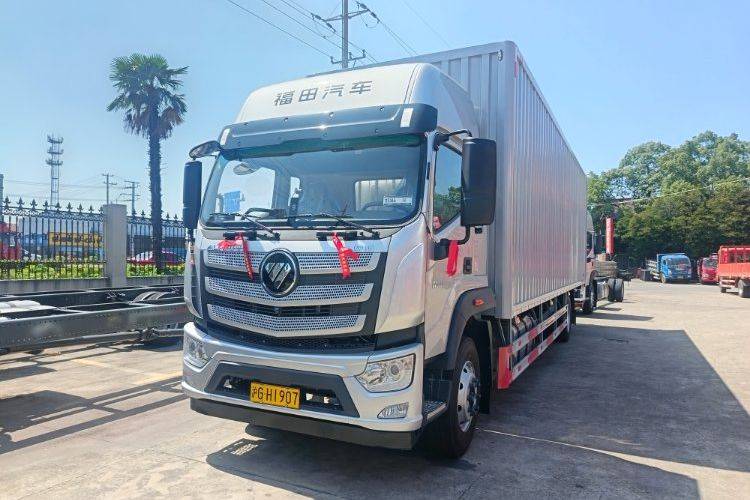

Foton Aumark S5 Box Truck - Front Quarter View (Silver)

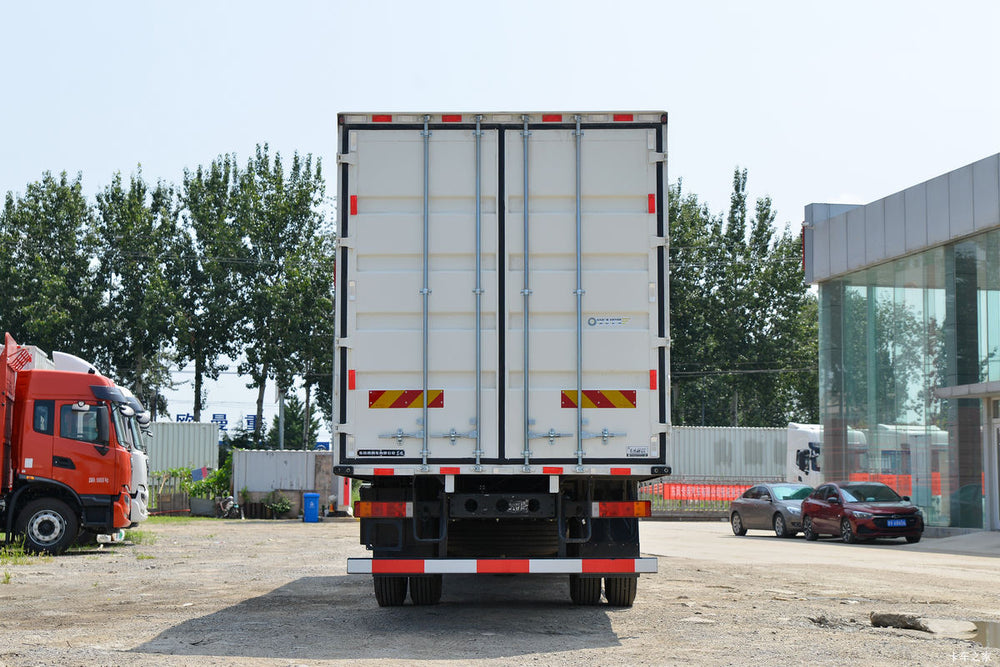

Foton Aumark S5 Box Truck - Rear View

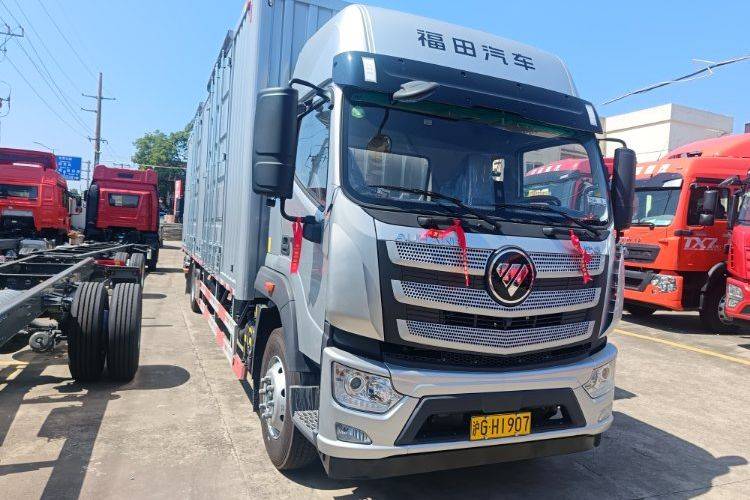

Foton Aumark S5 Box Truck - Front Side View (Silver)
1 / 3
Foton Aumark S5 Box Truck - Front Quarter View (Silver)
Foton Aumark S5 Box Truck - Rear View
Foton Aumark S5 Box Truck - Front Side View (Silver)
Category Item Specification Remarks
Basic Vehicle Information Brand & Model FOTON Aumark R Series 9.85m Box Cargo Truck FOTON's flagship medium-duty long-haul logistics truck
Drive Form 4×2 (1 front steering axle, 1 rear drive axle) Single axle configuration, compliant with national 18-ton total mass limit
Overall Outer Dimensions 12000×2550×3980mm Length×Width×Height
Cargo Box Inner Dimensions 9850×2450×2500mm Standard 9.85m long cargo compartment
Wheelbase 5700mm Optimized for 9.85m cargo box layout, stable high-speed driving
Gross Vehicle Weight 18000kg Legal maximum total mass for 4×2 medium-duty trucks
Curb Weight 7600kg Lightweight chassis design, maximized payload capacity
Rated Payload 10200kg Ideal for long-haul FTL, LTL logistics and express delivery
Seating Capacity 2-3 persons High-roof double sleeper cab, optional 3-seat configuration
Emission Standard China VI (Euro VI equivalent) Fully compliant with national latest heavy-duty truck emission regulations
Vehicle Type Fully enclosed box-type cargo truck For urban and intercity general cargo, industrial goods, cold chain (optional) transportation
Engine Parameters Engine Model FOTON Cummins ISD6.7NS6B240 Inline 6-cylinder diesel engine, dedicated for medium-duty logistics trucks
Displacement 6.7L Large displacement, reliable power output
Maximum Power Output 177kW / 240HP Peak power at 2500rpm
Maximum Torque 900N·m Peak torque at 1200-1800rpm, excellent low-speed torque performance
Intake Form Turbocharged intercooled, high-pressure common rail electronic fuel injection Fuel-saving, stable combustion, low emission
Emission Control System SCR+DOC+DPF+ASC China VI after-treatment system, stable operation without AdBlue fault
Rated Speed 2500rpm Standard rated speed for heavy-duty diesel engines
Transmission System Transmission Model Fast 8JS105TA 8-speed manual synchronized transmission 8 forward gears, 2 reverse gears, wide gear ratio coverage
Shift Mechanism Manual shift, full synchronizer Smooth shifting, easy operation for long-haul driving
Clutch Diaphragm spring dry clutch, 430mm diameter Durable for frequent start-stop operation
Chassis Configuration Chassis Brand FOTON Original Medium-duty Truck Chassis Factory original matching, reliable quality
Front Axle 4.5-ton rated load capacity, forged steel axle Lightweight, high strength, long service life
Rear Axle 10-ton rated load capacity, single reduction axle Final drive ratio 4.33, optional 3.91 for high-speed fuel saving
Tire Specification 11R22.5 18-ply steel radial tires, total 6 units Wear-resistant, puncture-resistant, suitable for long-distance high-speed driving
Fuel Tank Capacity 600L aluminum alloy fuel tank Large capacity, supports over 2000km continuous driving
Steering System Hydraulic power steering Light operation, precise control under full load
Suspension System Front leaf spring independent suspension, rear leaf spring non-independent suspension 3/4+1 leaf spring configuration, balance of riding comfort and load capacity
Brake System Full drum brake, dual-circuit pneumatic brake Standard with ABS, EBS, exhaust brake
Cab Configuration Cab Type FOTON Aumark R Series High-roof Double Sleeper Cab Four-point air suspension, hydraulic flip structure
Cab Interior Large windshield, wide field of view, double sleeper design Spacious space for long-haul driver rest
Standard Comfort Configuration Factory installed automatic air conditioning, power windows, central door lock, multifunctional steering wheel Standard factory configuration
Seats Air suspension driver seat, adjustable co-driver seat Effectively reduce driving fatigue during long-distance operation
Cargo Box Superstructure Box Material High-quality corrugated steel plate, galvanized anti-rust treatment Anti-impact, anti-rust, long service life
Box Structure Fully enclosed sealed cargo compartment, rear double swing doors, optional left/right side sliding doors Dustproof, rainproof, fully protect goods from damage
Cargo Volume Approximately 60.5m³ Large space for bulk cargo loading
Safety Fittings Full perimeter red-white reflective warning strips, rear anti-collision buffer beam, top wind deflector Comply with GB 7258 road transport safety standards, reduce wind resistance and fuel consumption
Optional Customization Stainless steel box, insulated cold storage box, hydraulic tailgate, multi-side door design For cold chain, fragile goods, special cargo transportation
Standard Safety Configuration Active Safety ABS anti-lock braking system, EBS electronic brake force distribution, ESC electronic stability control, tire pressure monitoring system (TPMS) Prevent wheel lock, skidding, greatly improve driving safety
Passive Safety Front crash buffer structure, 3-point safety belts for all occupants, anti-intrusion door beam Reduce injury risk in collision accidents
Lighting System Full LED composite headlights, side marker lights, rear brake & warning lights, clearance lamps Meet international road lighting requirements
Optional Upgrades & Export Customization Comfort Upgrade Reversing camera + 10-inch multimedia display, GPS navigation, cruise control, leather seats Eliminate rear blind spots, improve long-haul driving comfort
Safety Upgrade Lane Departure Warning System (LDWS), Forward Collision Warning (FCWS), Blind Spot Monitoring System Meet national heavy-duty truck safety regulations
Export Customization Right-hand drive (RHD) modification, overseas emission standard calibration, custom cargo box size, full set of export inspection documents For global long-haul logistics, cross-border transportation projects, supports customization for different countries' regulations
