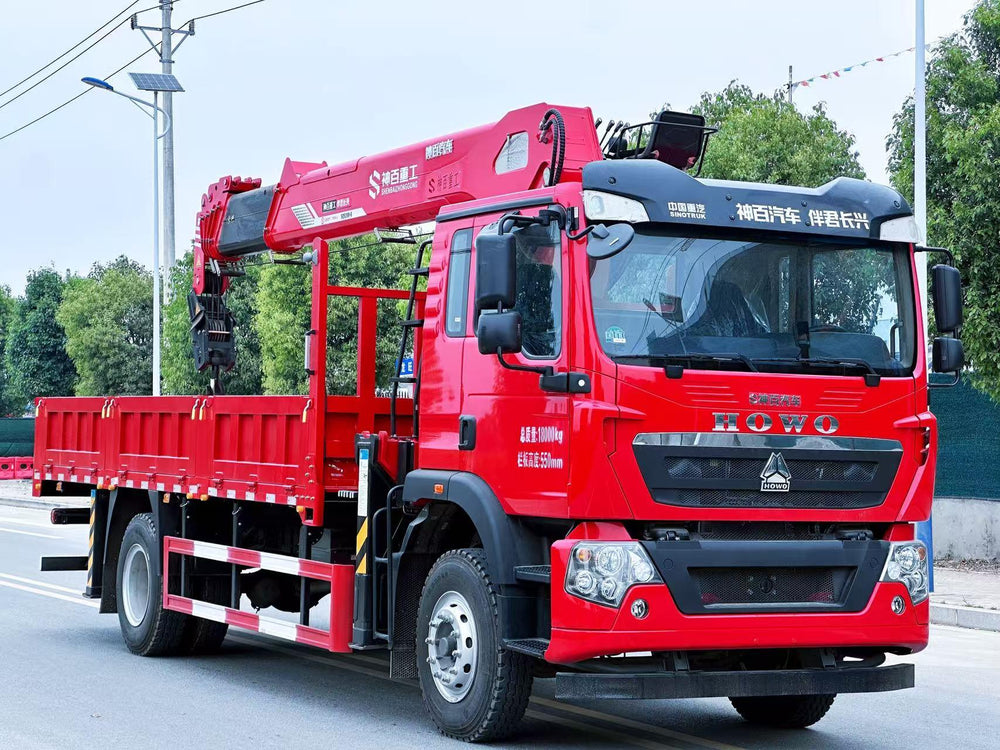

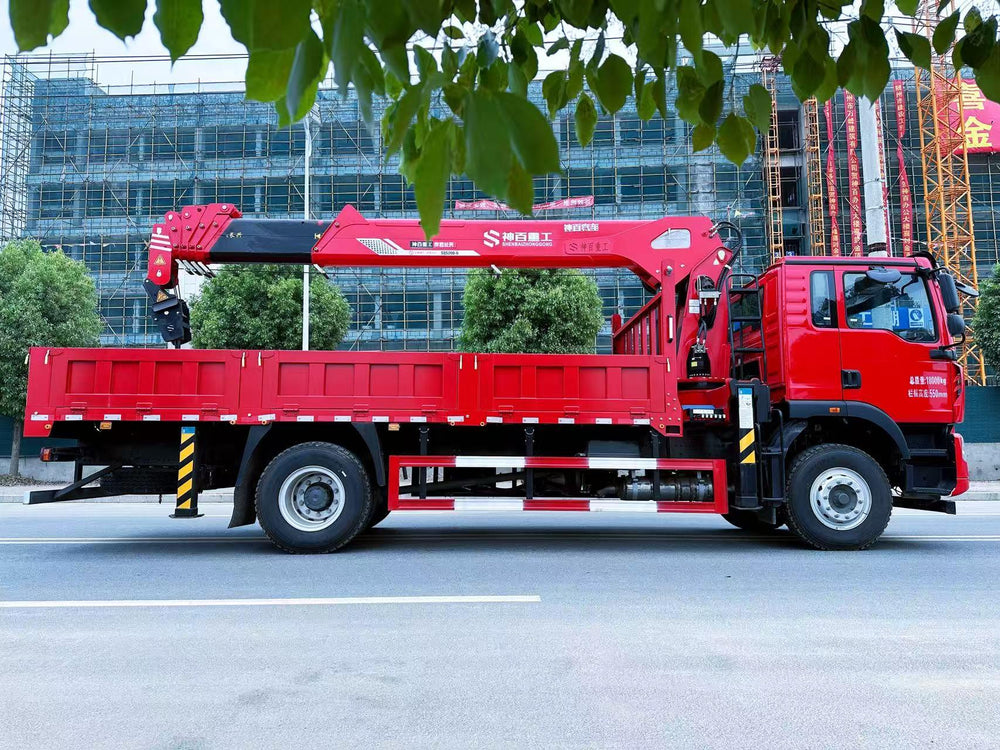

HOWO 4×2 8T Telescopic Boom Crane For Sale

HOWO 4×2 8T Telescopic Boom Crane For Sale
HOWO 4×2 8T Telescopic Boom Crane For Sale
1 / 2
HOWO 4×2 8T Telescopic Boom Crane For Sale
HOWO 4×2 8T Telescopic Boom Crane For Sale
Parameter Specification
Engine Model & Specification Weichai WP4.6NQ240E62, 240 Horsepower, 4.58L Displacement
Wheelbase 5000mm
Axle Ratio 5.29 (4.63 optional)
Gearbox HW95508STC2 HOWO 8-speed Gearbox with Synchronizer
Power Take-off (PTO) HW45ZC Flange-type PTO, Cable-operated PTO
Front Axle 7-ton SINOTRUK Reinforced Front Axle
Rear Axle 13-ton SINOTRUK Reinforced Engineering Version Rear Axle
Frame Structure Full 3-layer Frame (8+4+4/300)
Leaf Spring Configuration 10/9+8 Standard Multi-leaf Springs for Front/Rear Axles
Tire Specification 10.00R20 Tires, Mixed Pattern, 18PR
Cab Model HOWO TX-D Extended Cab (Semi-cab)
Steering Wheel Multi-functional Steering Wheel
Rearview Mirrors Electrically Adjustable + Heated Rearview Mirrors
Seats Main Driver Airbag Seat + Passenger Simple-type Seat, Middle Seat in Cab
Cab Suspension Front and Rear Spring Shock Absorption for Cab, 4-point Cab Suspension
Air Intake System Highway Version Air Intake System
Speed Limit 89km/h
Braking System ABS (4S/4M)
Central Control Screen 10.1-inch Full HD LCD Central Control Screen (MP5)
Bumper Full Metal Middle-position Bumper
Fuel Tank 200L Fuel Tank
Telematics System SINOTRUK Intelligent Connect D Version
Power Switch Mechanical Power Switch
Battery 120AH Battery
Core Advantage - Powertrain Matching Integrated development and matching of engine, gearbox and axle, with stronger whole vehicle adaptability
Core Advantage - Cab Safety Original German MAN Main Body Cab, 4-point suspension with world-leading collapse technology, which can effectively protect the life safety of drivers and passengers in emergency situations
Core Advantage - Driving Comfort Main driver adopts popular aviation airbag seat with multi-directional adjustment and lumbar support, humanized seat belt design, providing more comfortable driving experience
Core Advantage - Torsion Resistance Engineering vehicle leaf springs and four saddle bolts, with the best torsion resistance in the industry under complex road conditions
Core Advantage - Load Capacity 13-ton rear axle with speed reduction and torque increase, which can easily handle various complex road conditions
Crane Specification Changxing 8-ton 6-section Arm Crane, Boom Length 20 Meters
Crane Operation Mode Upper Operation, Dual Slewing, Dual-stage Outriggers
Crane Accessories With Radiator, Automatic Hook Retraction
Cargo Box Specification 5.9-meter Engineering Cargo Box, 3mm Side Plate + 5mm Bottom Plate, with Full Auxiliary Beam
