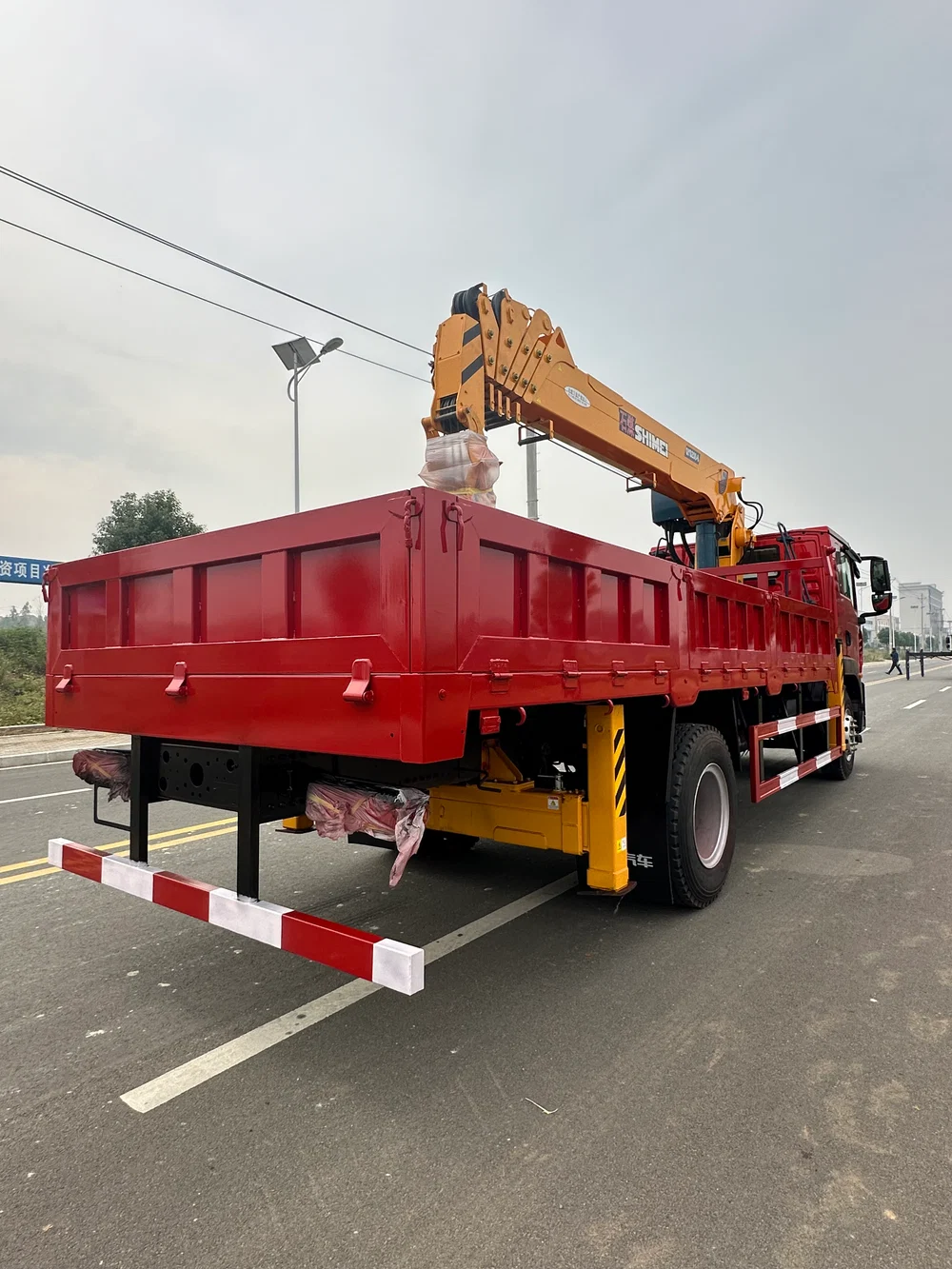

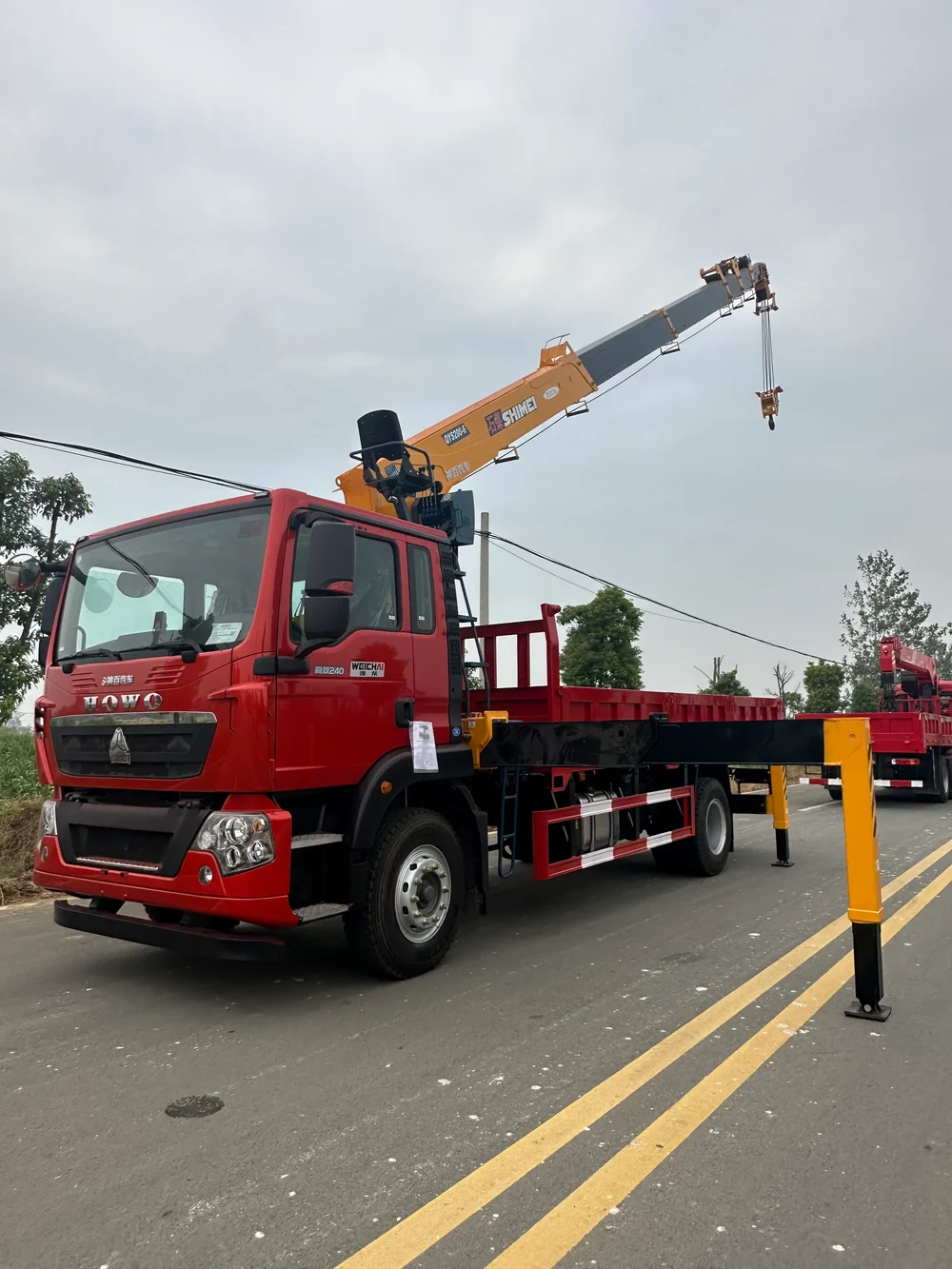

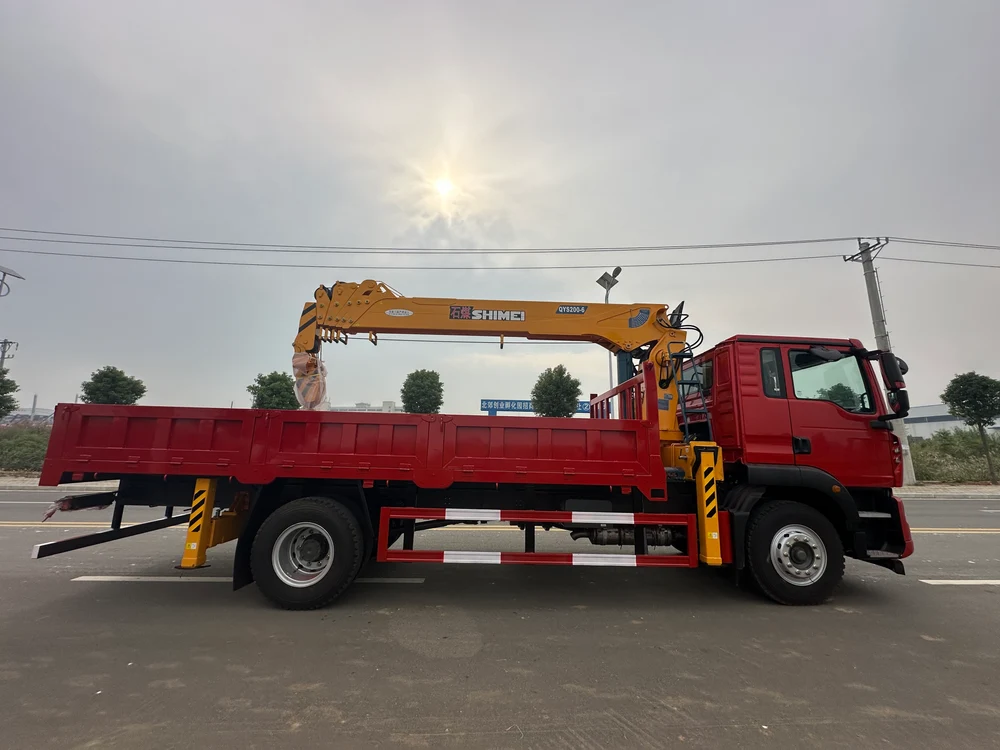

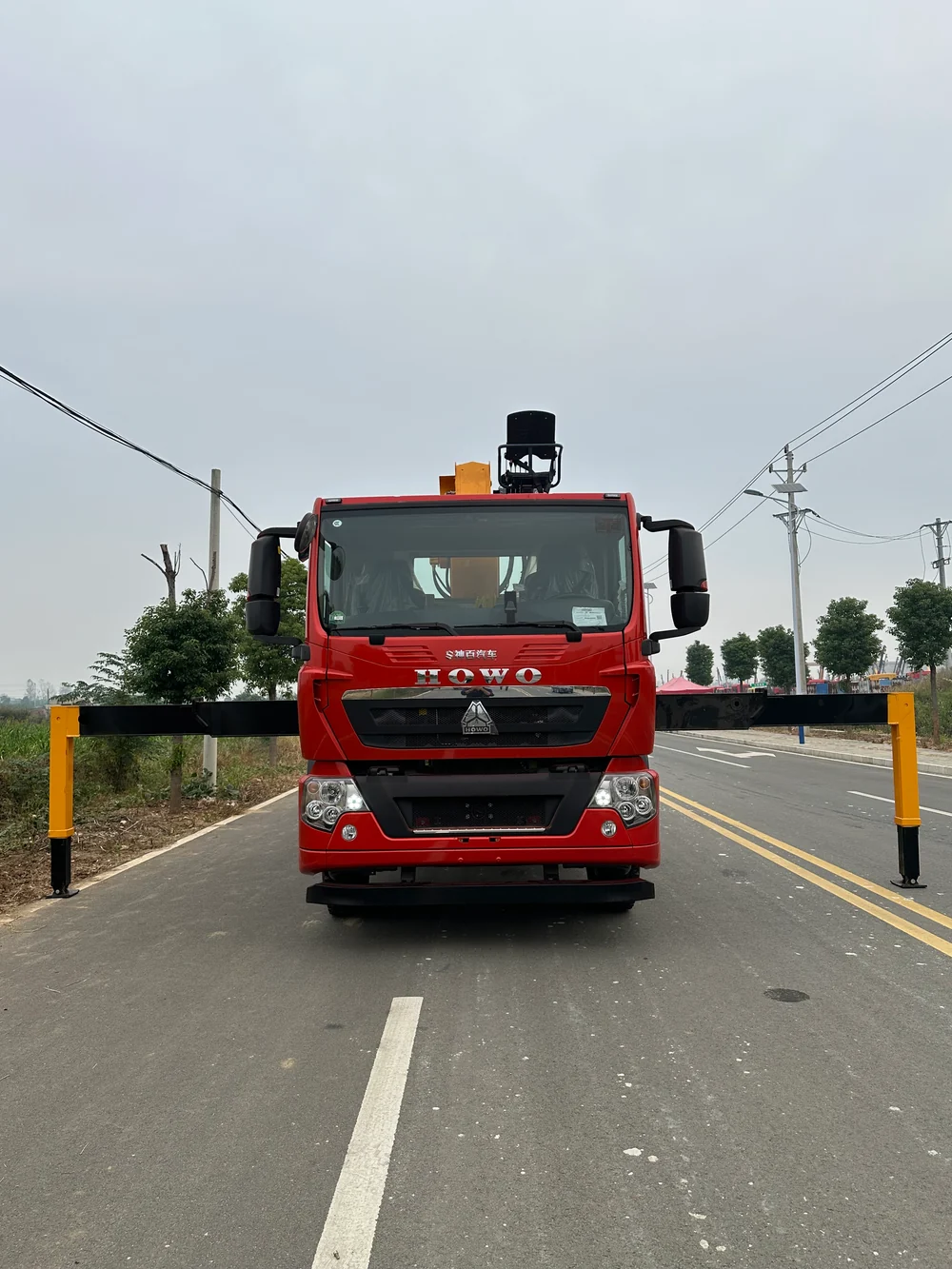

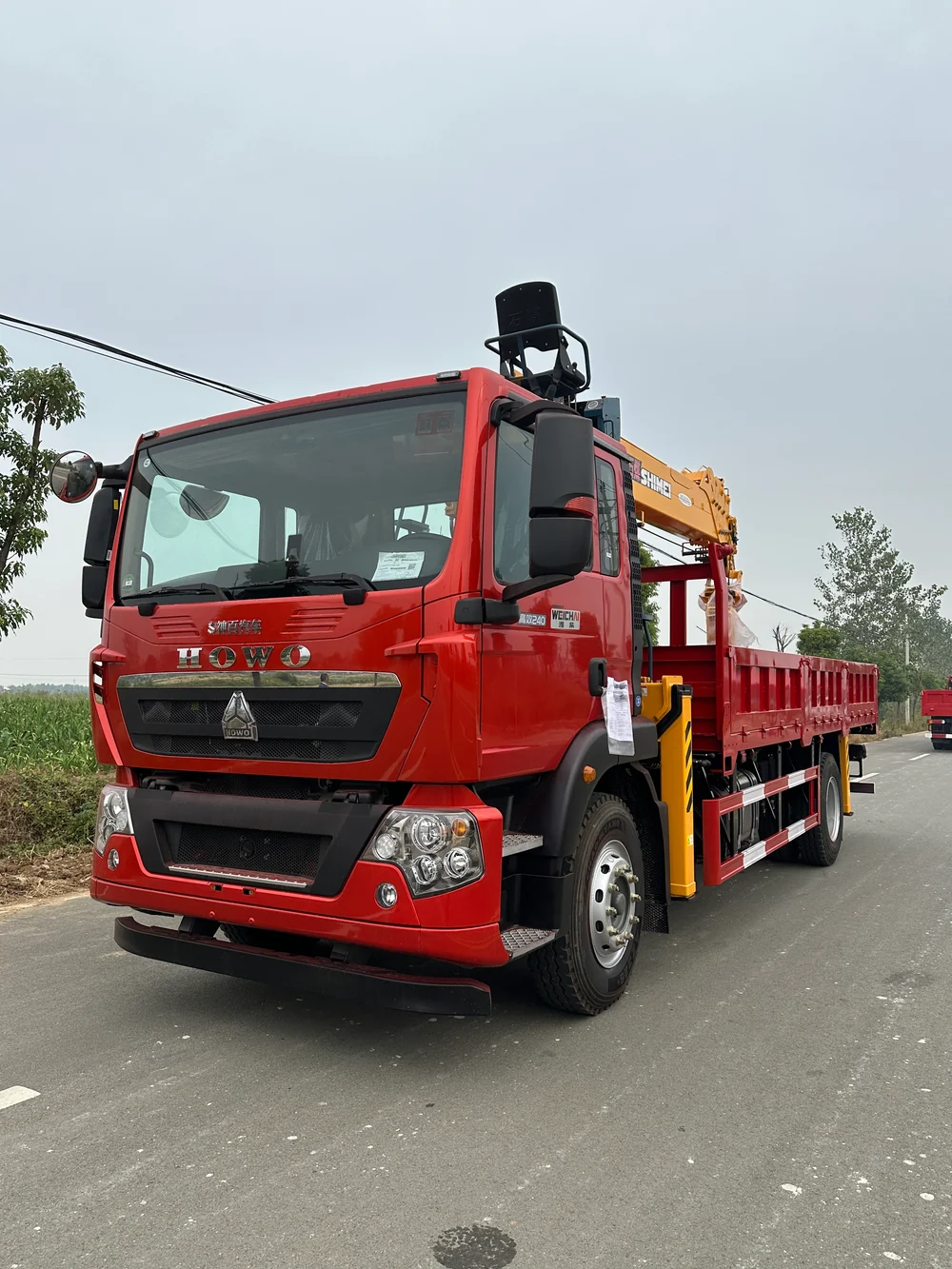

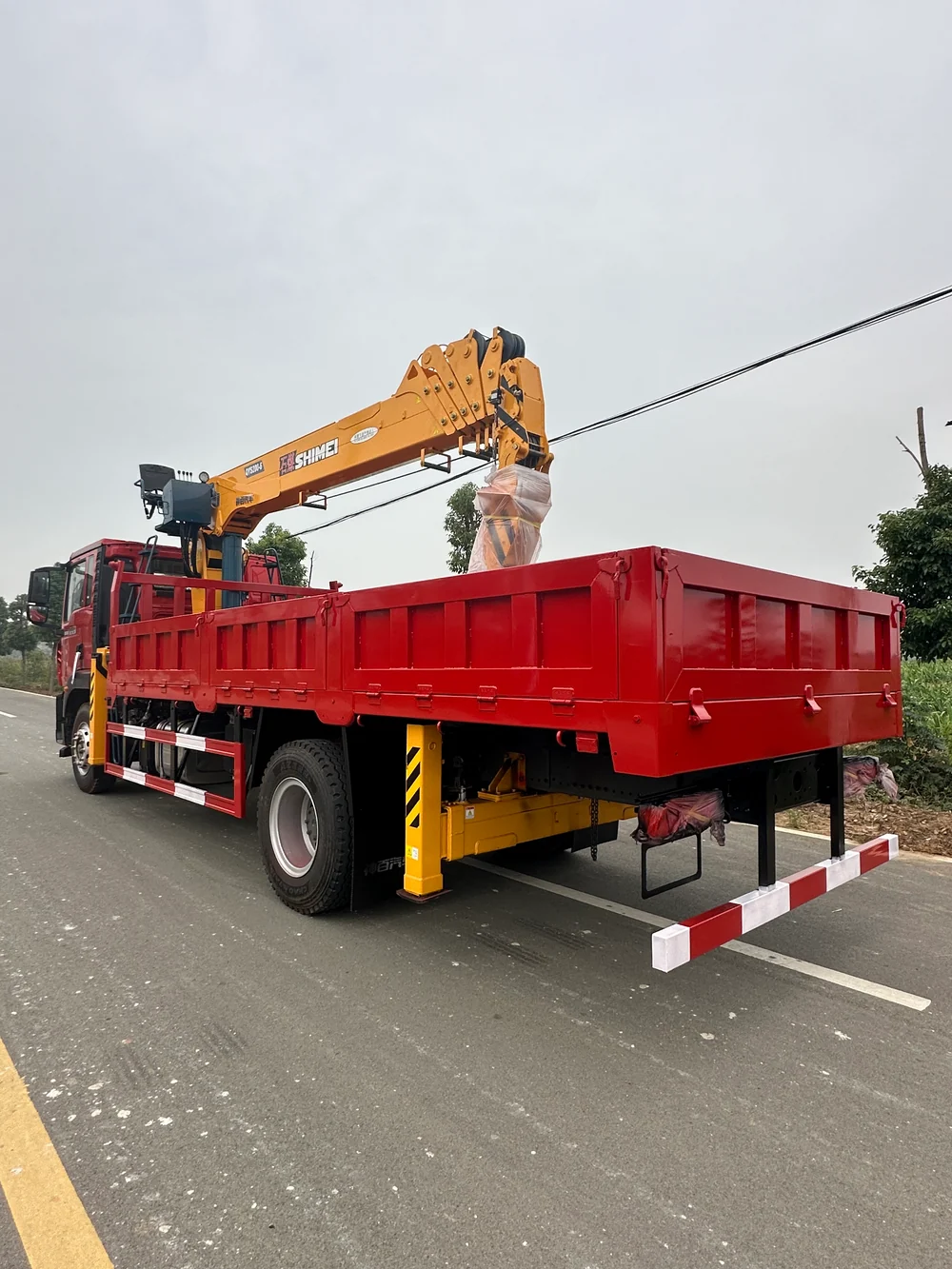

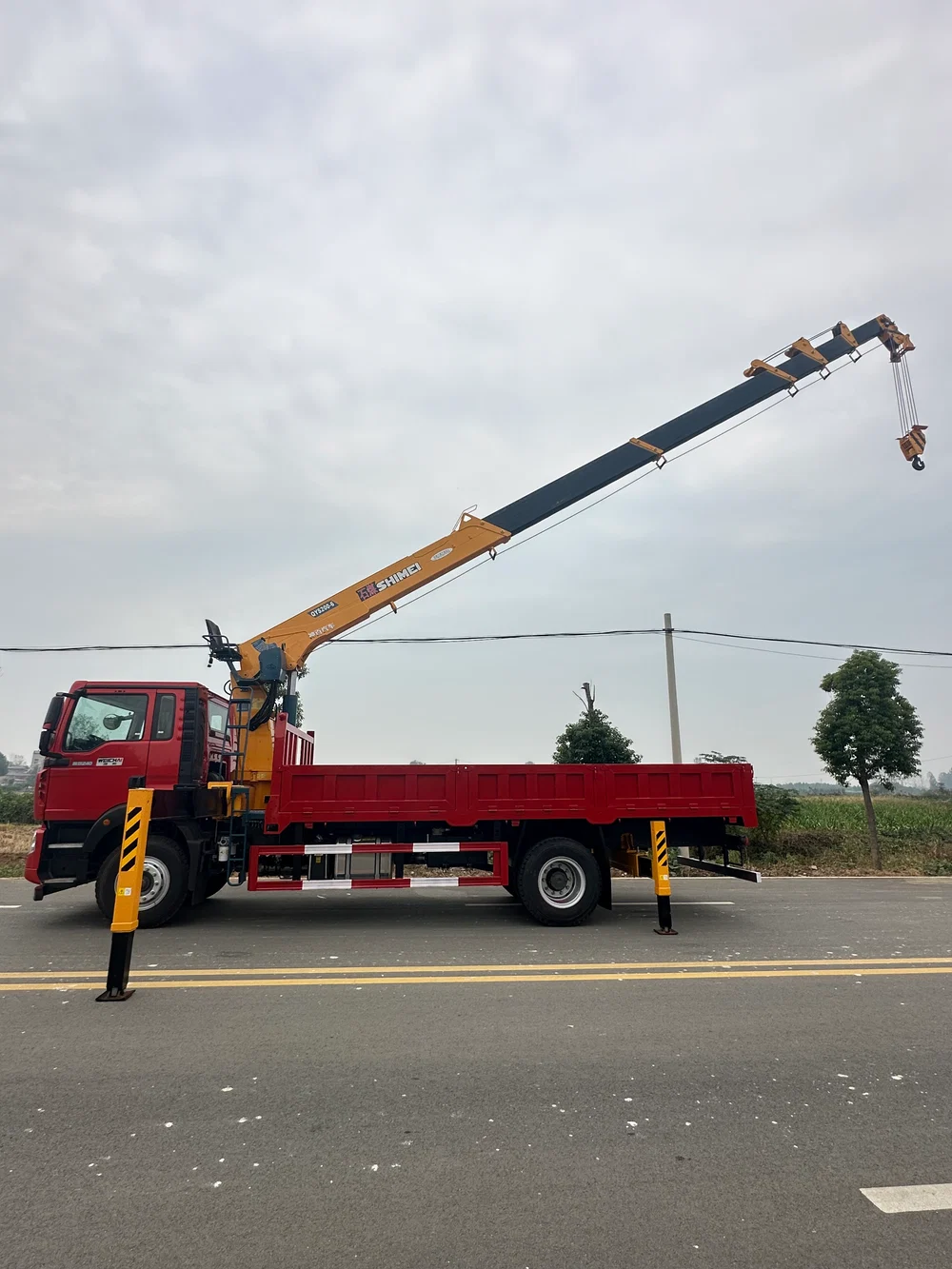

Howo 4×2 Shimei 8-ton 6-section Boom Truck Mounted Crane

Howo 4×2 Shimei 8-ton 6-section Boom Truck Mounted Crane
Howo 4×2 Shimei 8-ton 6-section Boom Truck Mounted Crane
Howo 4×2 Shimei 8-ton 6-section Boom Truck Mounted Crane
Howo 4×2 Shimei 8-ton 6-section Boom Truck Mounted Crane
Howo 4×2 Shimei 8-ton 6-section Boom Truck Mounted Crane
Howo 4×2 Shimei 8-ton 6-section Boom Truck Mounted Crane
Howo 4×2 Shimei 8-ton 6-section Boom Truck Mounted Crane
1 / 7
Howo 4×2 Shimei 8-ton 6-section Boom Truck Mounted Crane
Howo 4×2 Shimei 8-ton 6-section Boom Truck Mounted Crane
Howo 4×2 Shimei 8-ton 6-section Boom Truck Mounted Crane
Howo 4×2 Shimei 8-ton 6-section Boom Truck Mounted Crane
Howo 4×2 Shimei 8-ton 6-section Boom Truck Mounted Crane
Howo 4×2 Shimei 8-ton 6-section Boom Truck Mounted Crane
Howo 4×2 Shimei 8-ton 6-section Boom Truck Mounted Crane
Item Parameters
Whole Vehicle Announcement ABC5186JSQZZ6
Chassis Announcement ZZ1187K501GF1
Engine Weichai 240HP, 4.6L displacement
Wheelbase 5000mm/4700mm/4500mm
Final Drive Ratio 5.29, optional 4.63
Transmission & PTO HW95508STC2 gearbox + HW45ZC flange type power take-off
Axle 7-ton front axle, 13-ton engineering rear axle
Frame Three-layer integrated frame 8+5+5/303
Leaf Spring 11/9+8 pieces
Tire 10.00R20 mixed pattern, 18PR
Cab Howo TX5 TX-D cab
Cab Accessories Multifunctional steering wheel, manual rearview mirror, main airbag seat, auxiliary basic seat
Safety System 4S/4M ABS, speed limit 89km/h
Control & Display 7-inch HD MP5 central control screen
Fuel Tank 200L
Battery 120AH
Crane Brand & Model Shimei 8-ton 6-section boom crane
Max Boom Length 20m
Max Lifting Height 22m
Operation Mode Top operation
Boom Feature 2nd & 3rd section single extension
Support Leg Double hydraulic outriggers
Hydraulic System Hydraulic winch, piston motor, automatic hook retraction, one-key start-stop
Cargo Box 3-side & 5-bottom reinforced engineering box
Core Advantages Integrated chassis matching, MAN four-point suspension crashproof cab, comfortable aviation seat, high torsion resistance leaf spring, powerful 13-ton rear axle
