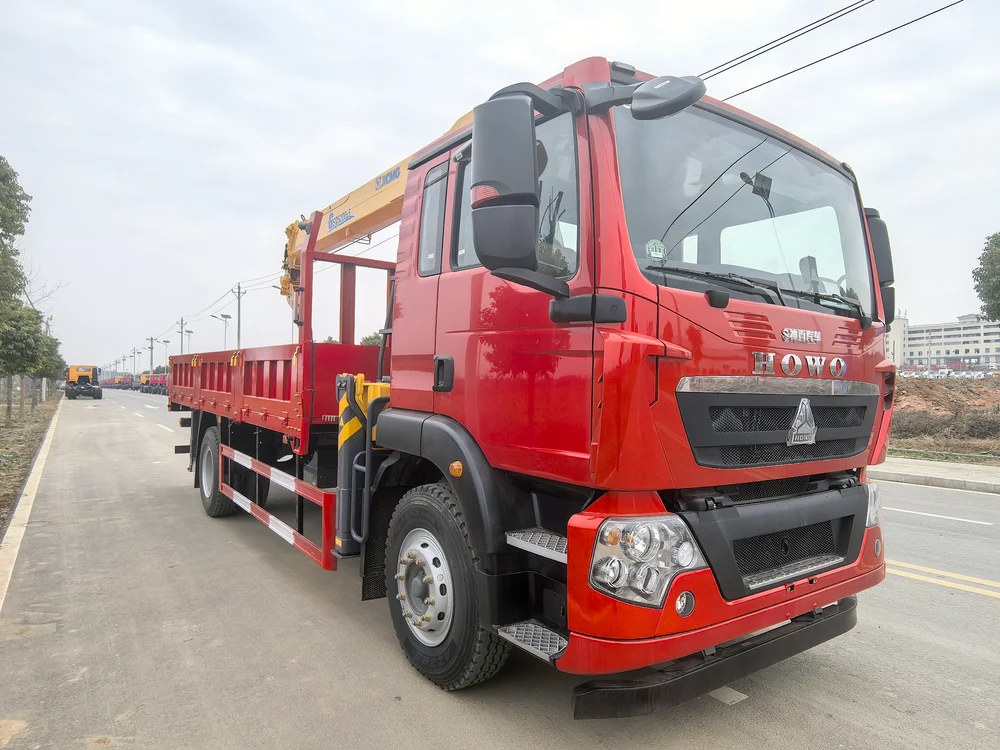

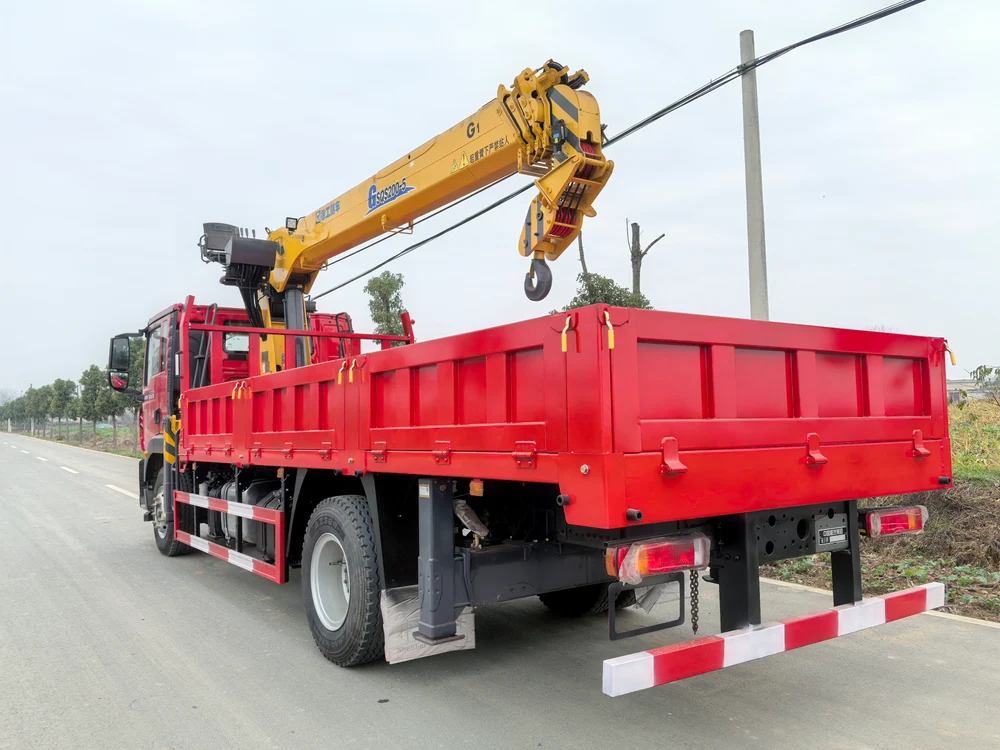

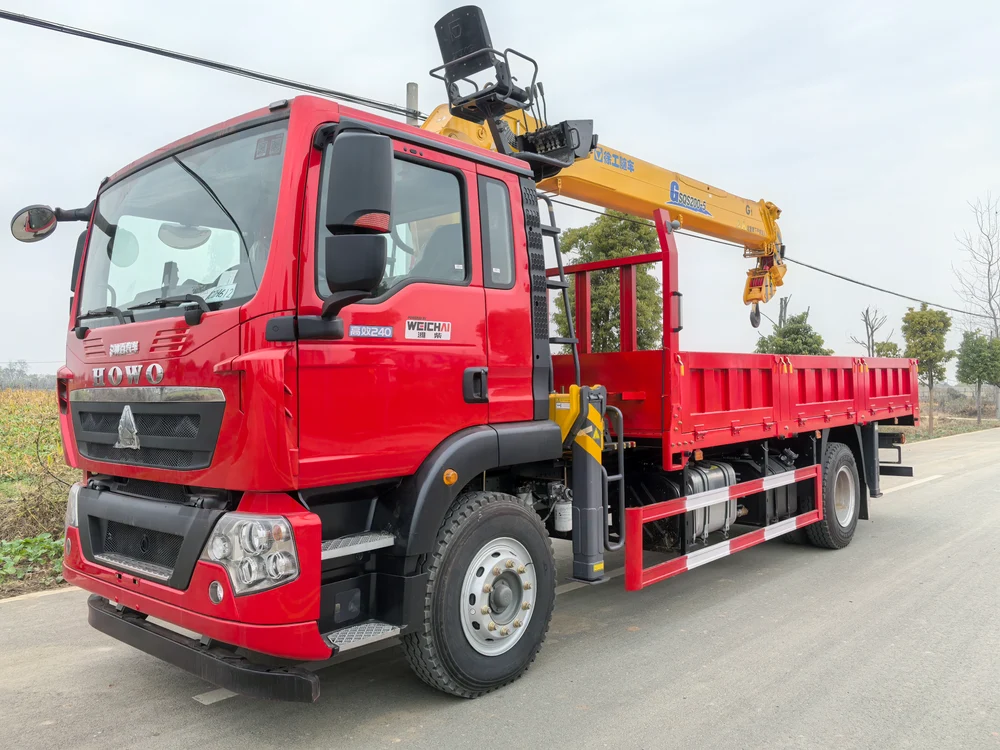

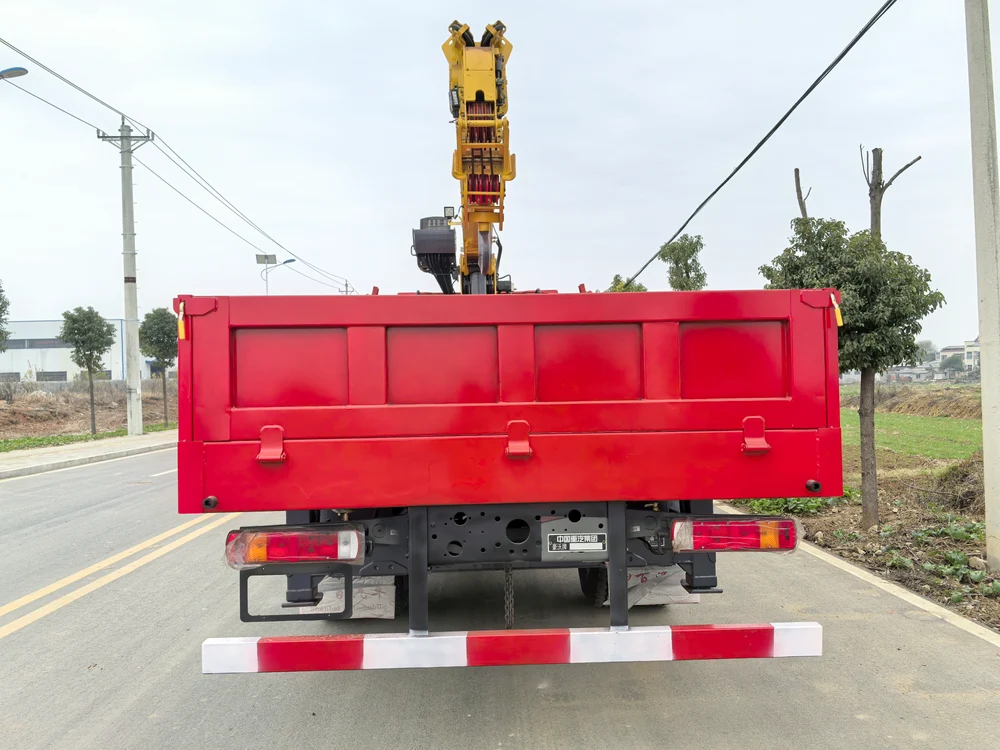

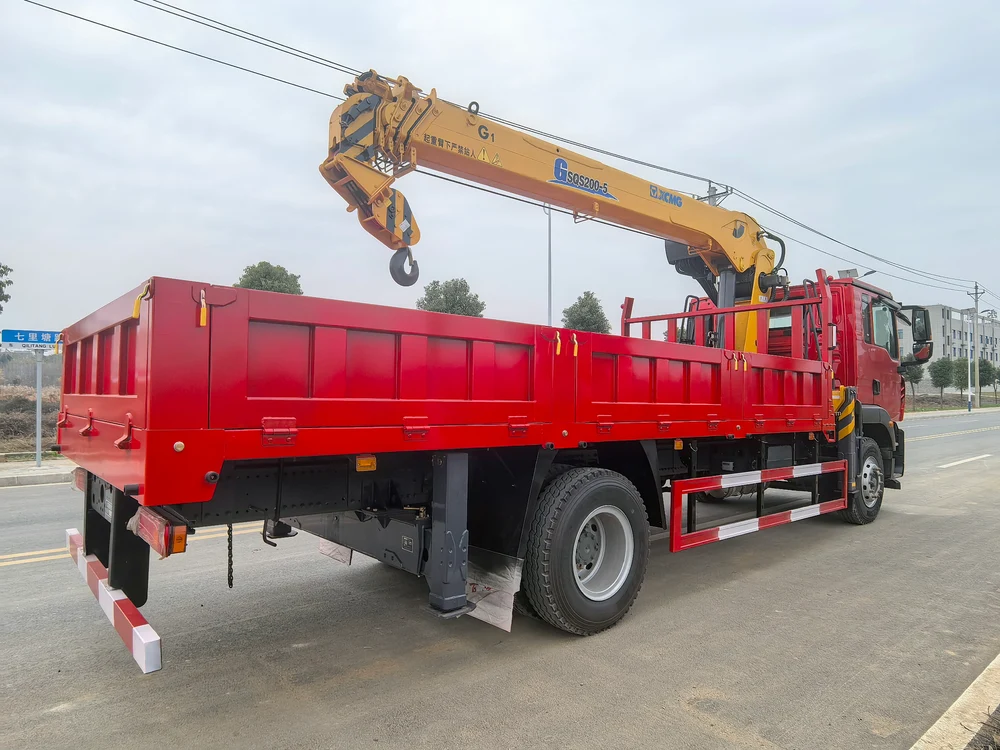

Howo 4×2 XCMG 8-ton 5-section Boom Truck Mounted Crane

Howo 4×2 XCMG 8-ton 5-section Boom Truck Mounted Crane
Howo 4×2 XCMG 8-ton 5-section Boom Truck Mounted Crane
Howo 4×2 XCMG 8-ton 5-section Boom Truck Mounted Crane
Howo 4×2 XCMG 8-ton 5-section Boom Truck Mounted Crane
Howo 4×2 XCMG 8-ton 5-section Boom Truck Mounted Crane
1 / 5
Howo 4×2 XCMG 8-ton 5-section Boom Truck Mounted Crane
Howo 4×2 XCMG 8-ton 5-section Boom Truck Mounted Crane
Howo 4×2 XCMG 8-ton 5-section Boom Truck Mounted Crane
Howo 4×2 XCMG 8-ton 5-section Boom Truck Mounted Crane
Howo 4×2 XCMG 8-ton 5-section Boom Truck Mounted Crane
Item Specification
Whole Vehicle Certificate No. ABC5186JSQZZ6
Chassis Certificate No. ZZ1187K501GF1
Engine Weichai 240HP, 4.6L displacement
Wheelbase 5000mm
Final Drive Ratio 5.29, 4.63 optional
Transmission & PTO HW95508STC2 gearbox + HW45ZC flange type power take-off
Axle 7-ton front axle, 13-ton engineering rear axle
Frame Three-layer integrated frame (8+5+5/303)
Leaf Spring Quantity 11/9+8 pieces
Tire 10.00R20 mixed pattern, 18PR
Chassis Configuration Howo TX5, TX-D cab; multifunctional steering wheel; manual rearview mirror; main airbag seat & auxiliary basic seat; WP4.6NQ240E62 engine; 8-speed synchronizer gearbox; 1094 self-adjusting drum front axle; MCJ09BGY self-adjusting single drum rear axle; front & rear cab spring shock absorption; road intake system; 89km/h speed limit; 4S/4M ABS; 7-inch full HD MP5 control screen; full metal middle bumper; 200L fuel tank; cable-operated PTO; Sinotruk Intelligent D system; middle cab seat; mechanical power switch; 120AH storage battery
Superstructure Configuration XCMG 8-ton 5-section boom crane; 18.7m boom length; 21m lifting height; top operation; double pump system; double outriggers; automatic hook retraction; 3-side & 5-bottom reinforced cargo box
