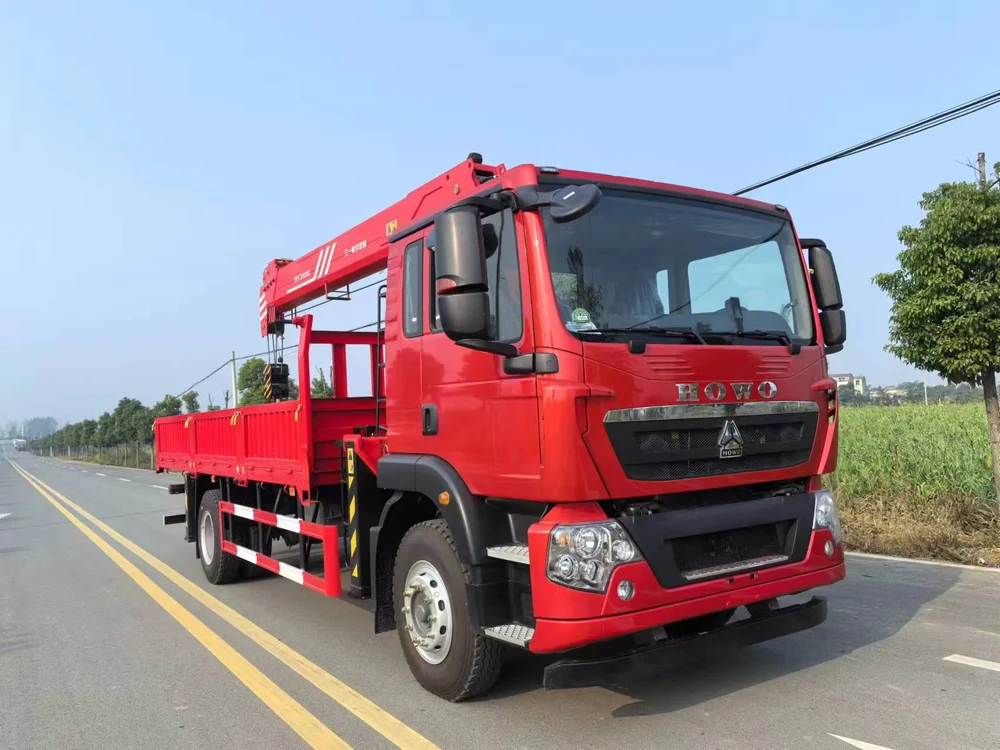

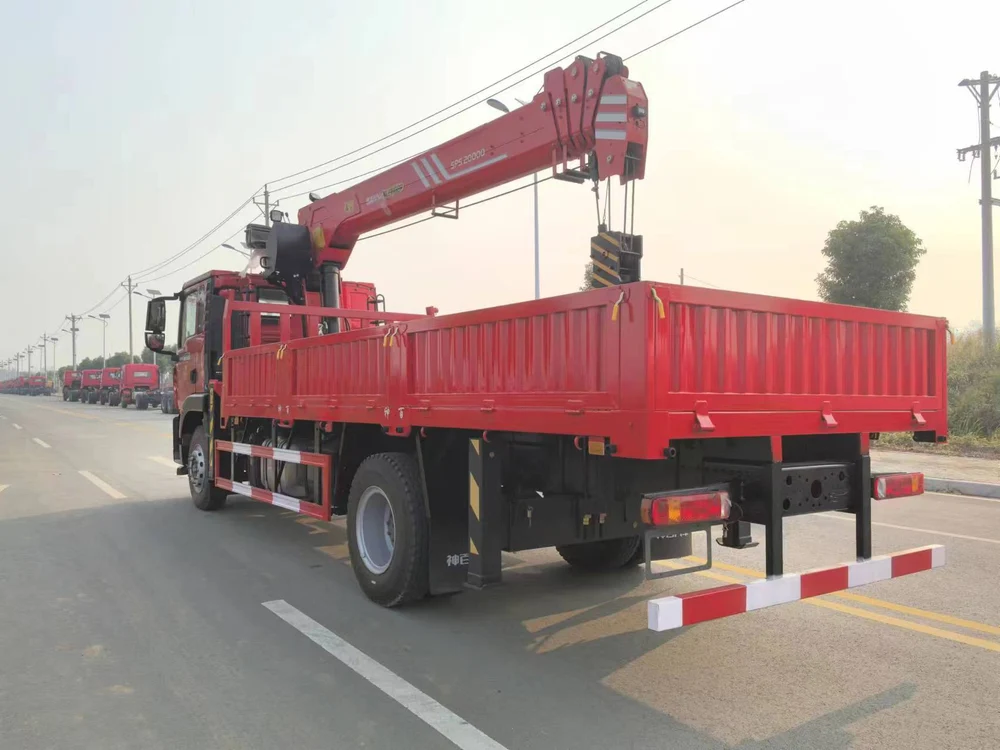

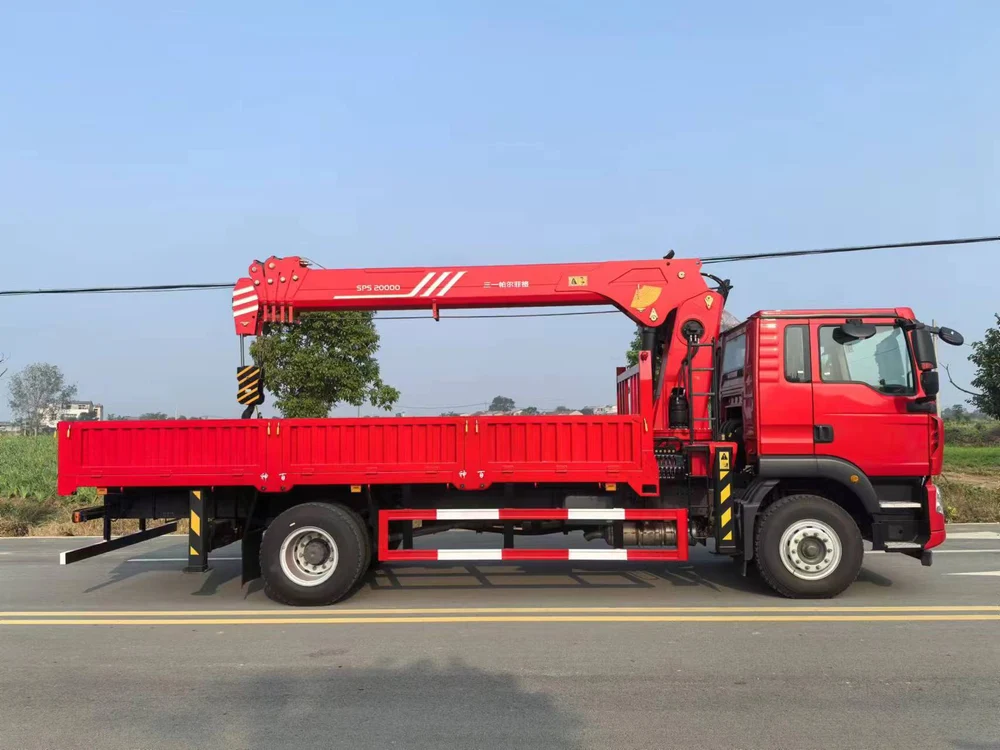

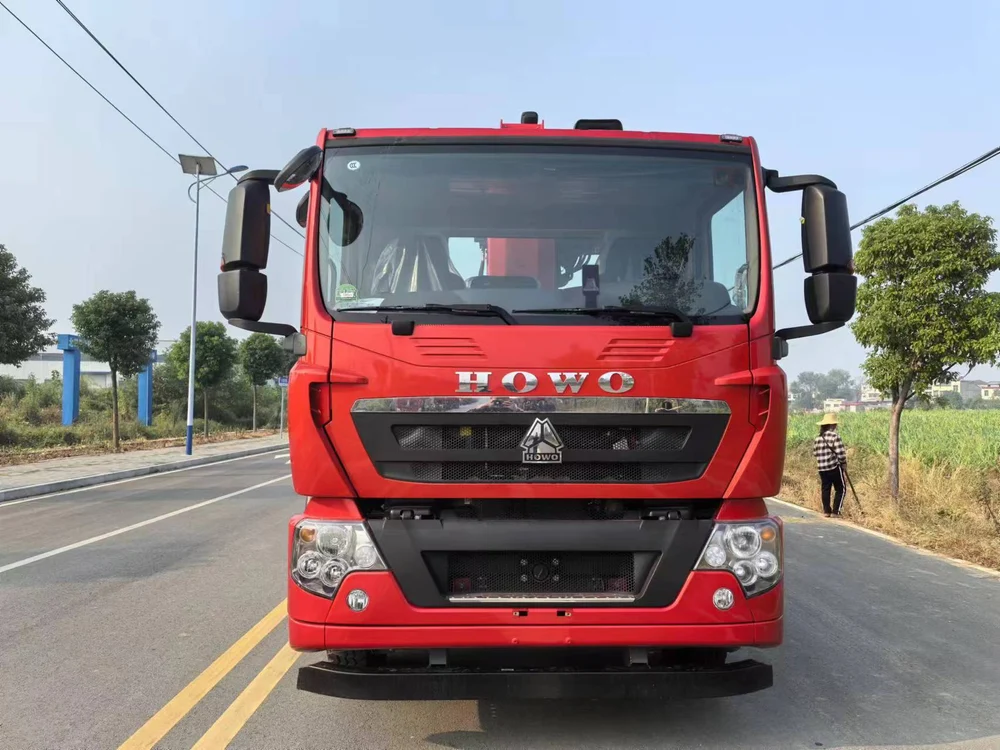

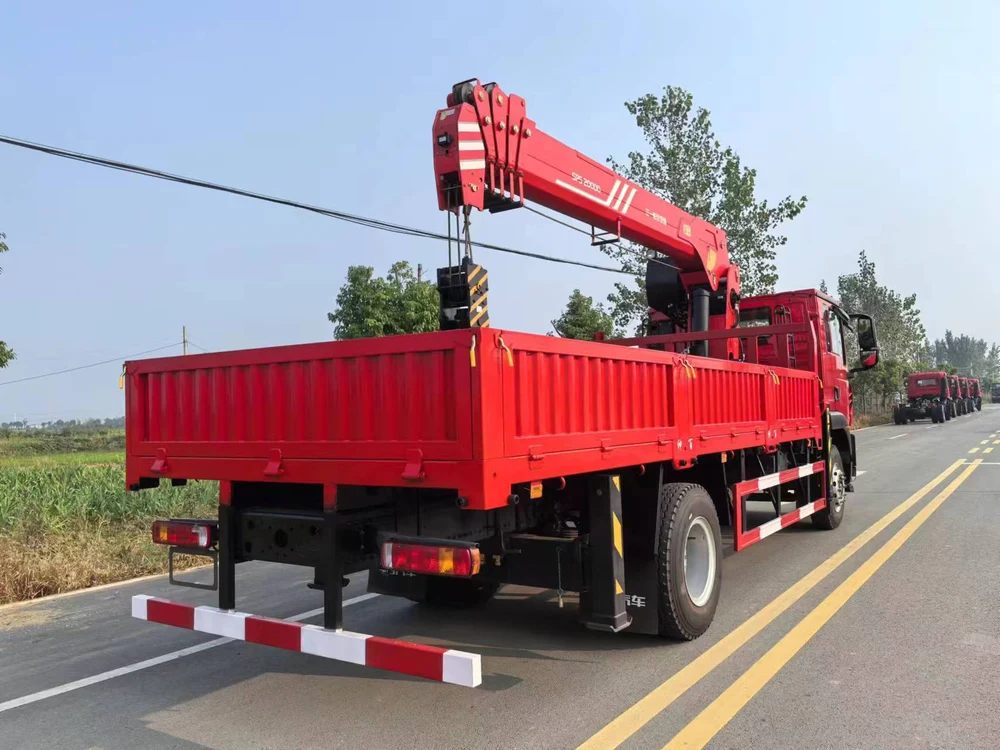

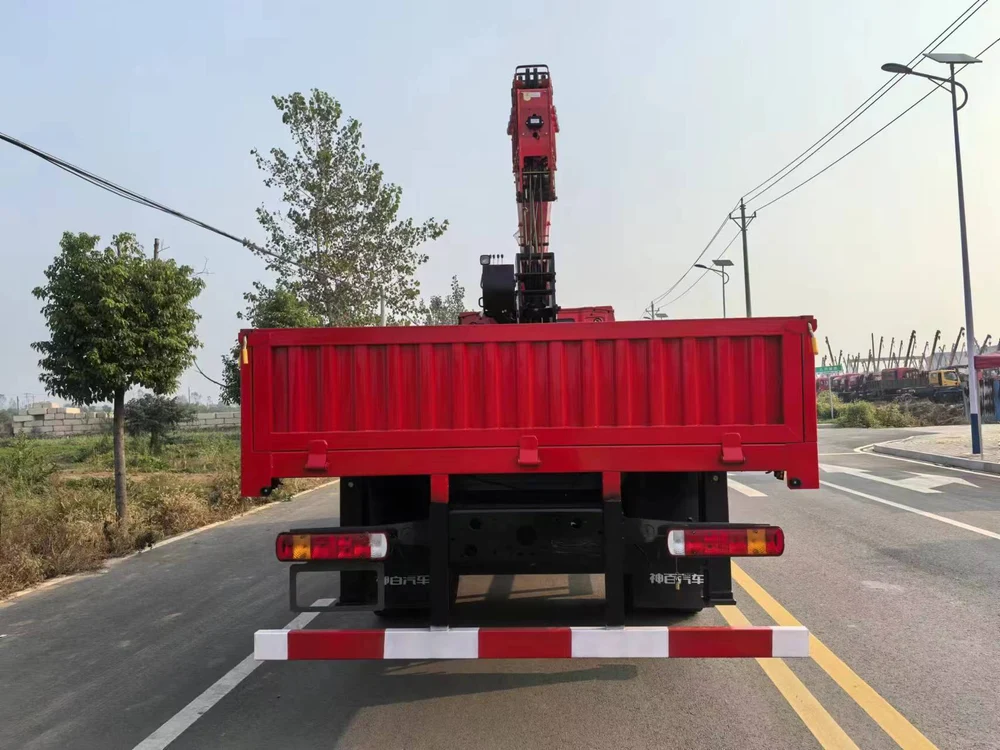

HOWO Sany 10-ton 5-section Boom Truck mounted Crane

HOWO Sany 10-ton 5-section Boom Truck mounted Crane
HOWO Sany 10-ton 5-section Boom Truck mounted Crane
HOWO Sany 10-ton 5-section Boom Truck mounted Crane
HOWO Sany 10-ton 5-section Boom Truck mounted Crane
HOWO Sany 10-ton 5-section Boom Truck mounted Crane
HOWO Sany 10-ton 5-section Boom Truck mounted Crane
1 / 6
HOWO Sany 10-ton 5-section Boom Truck mounted Crane
HOWO Sany 10-ton 5-section Boom Truck mounted Crane
HOWO Sany 10-ton 5-section Boom Truck mounted Crane
HOWO Sany 10-ton 5-section Boom Truck mounted Crane
HOWO Sany 10-ton 5-section Boom Truck mounted Crane
HOWO Sany 10-ton 5-section Boom Truck mounted Crane
Item Specification Details
Chassis Announcement Model ZZ1187K501GF1
Engine Weichai 240HP, 4.6L Displacement
Wheelbase 5000mm / 4700mm / 4500mm
Rear Axle Gear Ratio 5.29 (Optional 4.63)
Transmission & PTO HW95508STC2 Transmission + HW45ZC Flange Type Power Take-off
Front / Rear Axle 7-ton Front Axle, 13-ton Engineering Rear Axle
Frame Full Three-layer Frame (8+5+5/303)
Leaf Spring 11/9+8
Tire Specification 10.00R20 Mixed Pattern Tire, 18PR
Cab Type HOWO TX5, TX-D Cab
Steering & Mirror Multifunctional Steering Wheel, Manual Rearview Mirror
Seat Configuration Main Airbag Seat + Auxiliary Ordinary Seat
Engine Model WP4.6NQ240E62
Gearbox HOWO 8-speed Transmission with Synchronizer (HW95508STC2)
Brake Axle 1094 Self-adjusting Drum Front Axle; MCJ09BGY Self-adjusting Drum Single Rear Axle
Suspension Cab Front & Rear Spring Shock Absorption
Air Intake System Highway Standard Air Intake
Speed Limit 89km/h
Braking System ABS (4S/4M)
Central Control 7-inch Full HD LCD MP5 Screen
Bumper Middle-mounted Full Metal Bumper
Fuel Tank 200L
PTO Type Cable Operated PTO
Intelligent System Sinotruk Intelligent Connect D Version
Auxiliary Configuration Cab Middle Seat, Mechanical Power Switch, 120AH Battery
Crane Brand & Model Sany 10-ton 5-section Boom
Operation Mode Top Operation, Second Boom Single Extension
Boom Parameter Boom Length 18.1m, Lifting Height 19.9m
Hydraulic System Plunger Pump, Plunger Motor for Slewing & Winch
Outrigger 3.5m Span Single-cylinder Rear Outrigger
Auxiliary Beam Full-length Reinforced Auxiliary Beam
Accessory Hydraulic Radiator Equipped
Cargo Box Engineering Cargo Box, Side 3 Layers / Bottom 5 Layers
Core Advantages 1. Weichai 240HP 4-cylinder high-power engine, matched with original HOWO 8-speed transmission, optimized powertrain matching;

2. German MAN technology cab, four-point suspension + crash energy absorption structure, high safety;

3. Aviation airbag driver seat with lumbar support, comfortable riding;

4. Three-layer reinforced frame + heavy-duty leaf spring, 7T/13T axle, strong heavy-load capacity.
