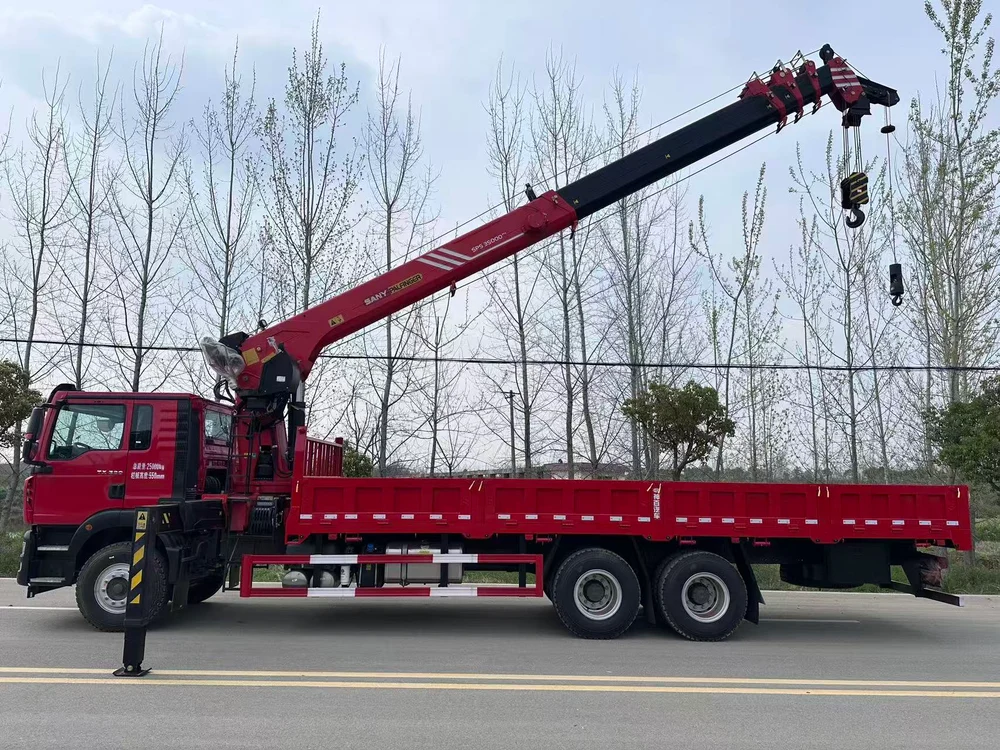

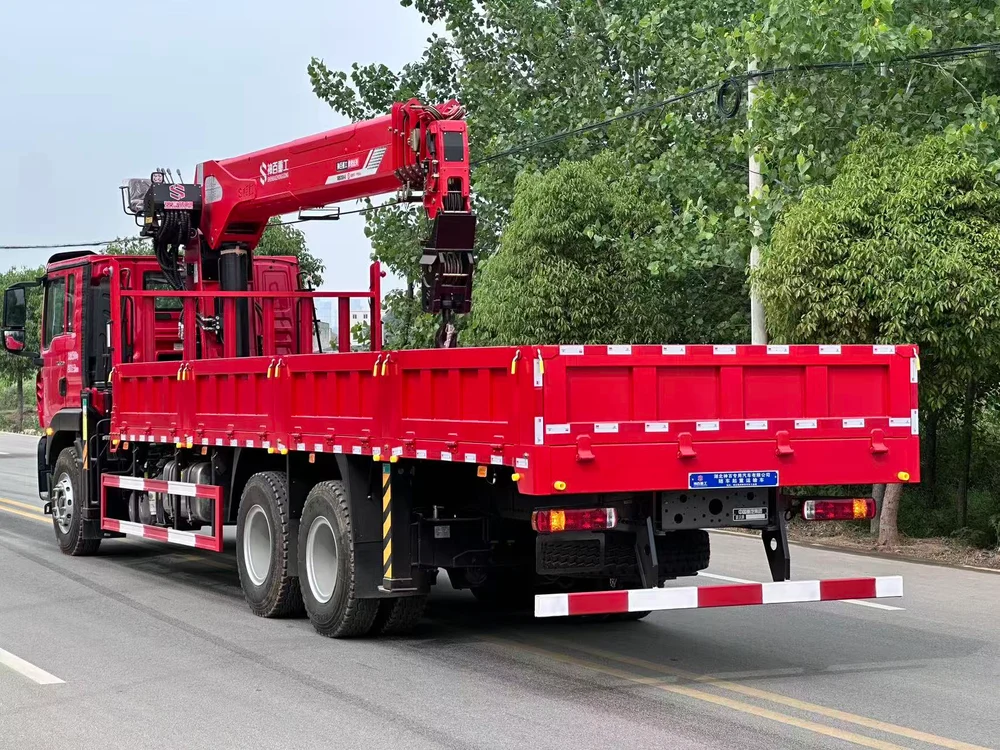

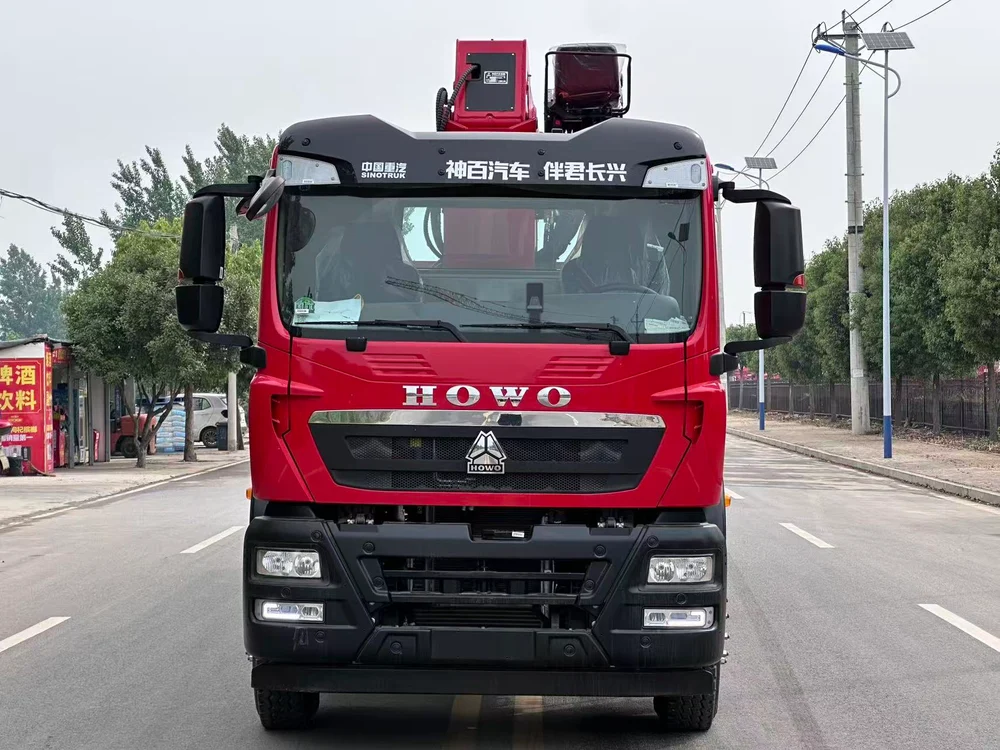

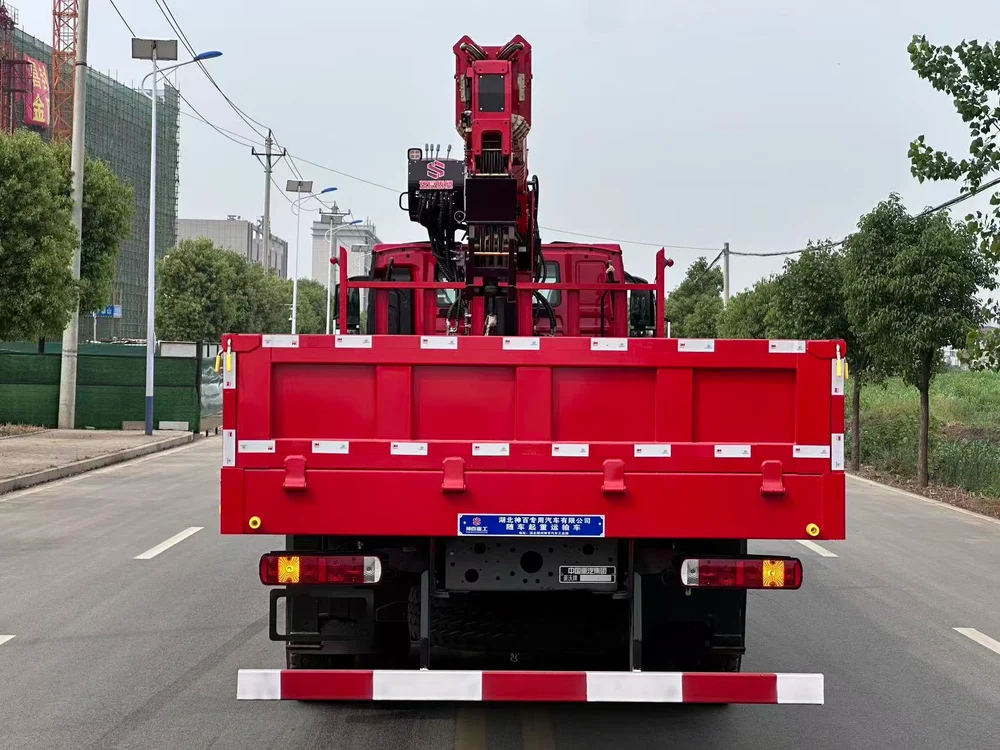

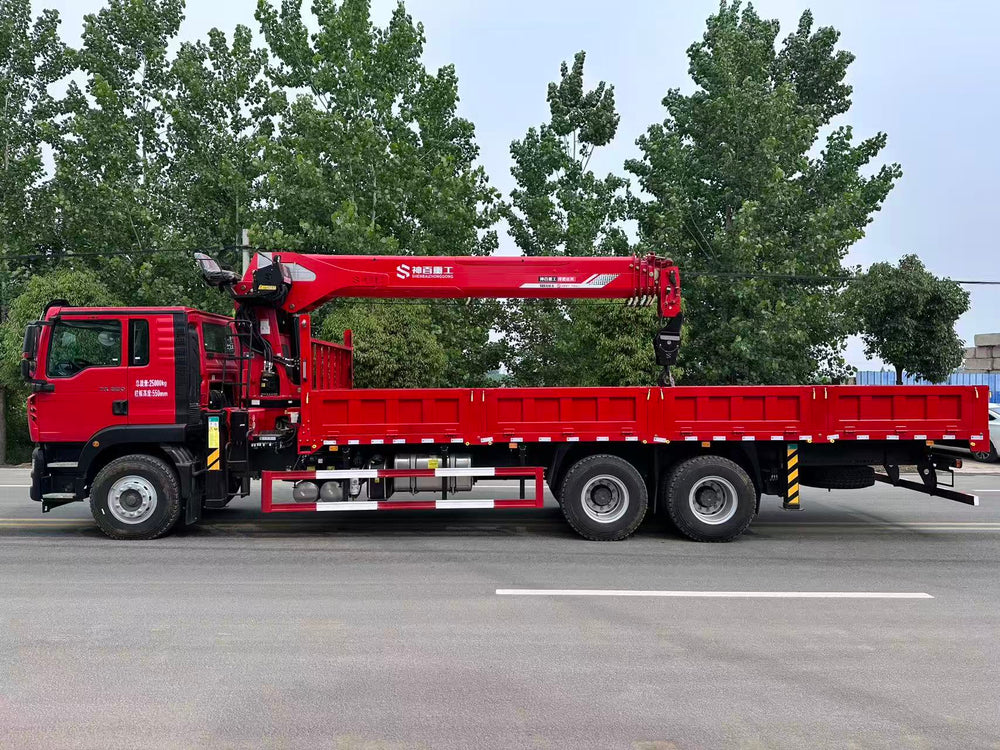

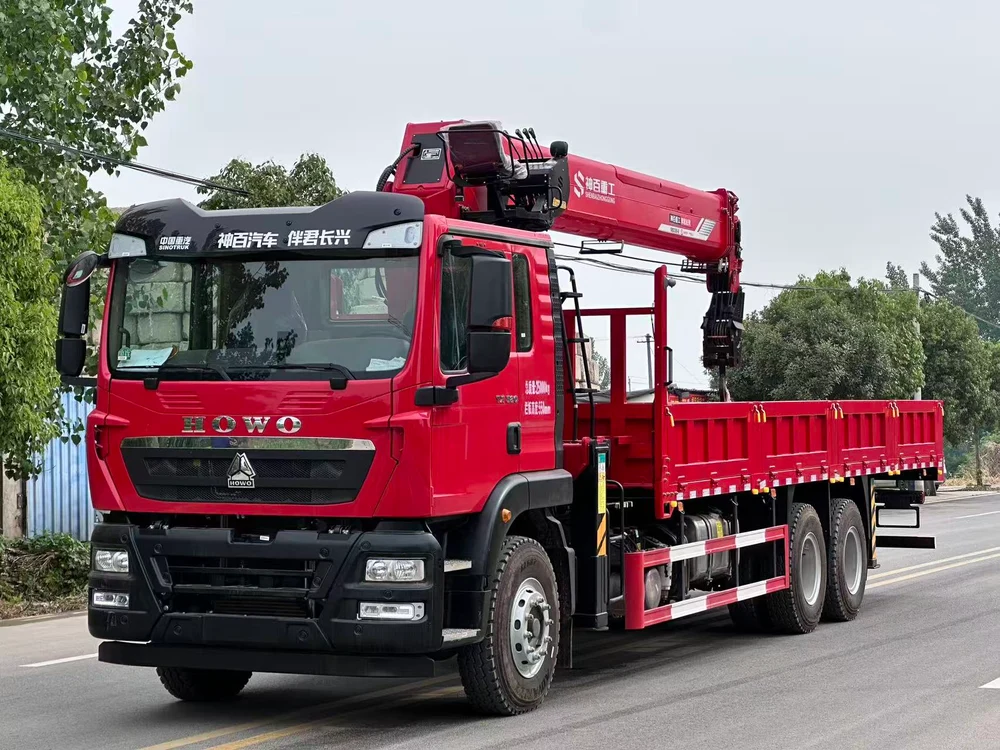

HOWO TX Changxing 12-ton 6-section Boom Truck mounted Crane

HOWO TX Changxing 12-ton 6-section Boom Truck mounted Crane
HOWO TX Changxing 12-ton 6-section Boom Truck mounted Crane
HOWO TX Changxing 12-ton 6-section Boom Truck mounted Crane
HOWO TX Changxing 12-ton 6-section Boom Truck mounted Crane
HOWO TX Changxing 12-ton 6-section Boom Truck mounted Crane
HOWO TX Changxing 12-ton 6-section Boom Truck mounted Crane
HOWO TX Changxing 12-ton 6-section Boom Truck mounted Crane
1 / 7
HOWO TX Changxing 12-ton 6-section Boom Truck mounted Crane
HOWO TX Changxing 12-ton 6-section Boom Truck mounted Crane
HOWO TX Changxing 12-ton 6-section Boom Truck mounted Crane
HOWO TX Changxing 12-ton 6-section Boom Truck mounted Crane
HOWO TX Changxing 12-ton 6-section Boom Truck mounted Crane
HOWO TX Changxing 12-ton 6-section Boom Truck mounted Crane
HOWO TX Changxing 12-ton 6-section Boom Truck mounted Crane
Item Specification
Whole Vehicle Approval ABC5251JSQZZ6
Chassis Approval ZZ1257N464GF1
Engine Weichai 320HP, 7.0L Displacement
Wheelbase 5800+1350mm
Gear Ratio 5.29 (4.63/4.11 optional)
Gearbox & Power Take-off HW13709XSTC2 Gearbox + HW70 Flange Type PTO
Axle VGD75 Self-adjusting Drum Front Axle; MCJ12BGY Self-adjusting Drum Dual Rear Axle
Frame Integrated Three-layer Frame (8+5+5/300)
Leaf Spring Quantity 10/12
Tire 11.00R20 Mixed Pattern, 18PR
Chassis Configuration HOWO TX5, Half-row TX-J Cab; Multifunctional Steering Wheel; Electric Adjustable & Heated Rearview Mirror; Main Airbag Seat + Auxiliary Basic Seat; WP7H320E62 Engine; HW13709XSTC2 12-speed Synchronizer Gearbox; 7.5/13 Ton Axle Load; Reinforced Multi-leaf Spring; 89km/h Speed Limit; U-type Exhaust System; 4S/4M ABS; Full Metal High-position Bumper; Manual & Electric Integrated Cab Lifting; 300L Aluminum Alloy Fuel Tank; Cable-type PTO; SINOTRUK Intelligent Connect Version B; Middle Cab Seat; 165AH Storage Battery
Advantage Configuration Integrated matching design of engine, gearbox and axle for superior overall adaptability. Original German MAN cab with four-point suspension and advanced crash energy absorption structure to protect occupants. Ergonomic aviation airbag driver seat with multi-direction adjustment and lumbar support. Heavy-duty leaf springs and four U-bolts deliver outstanding torsion resistance on rough roads. V-type thrust rod ensures stable body performance under heavy load. 13-ton rear axle equipped with three differential locks realizes powerful torque output for complex road conditions

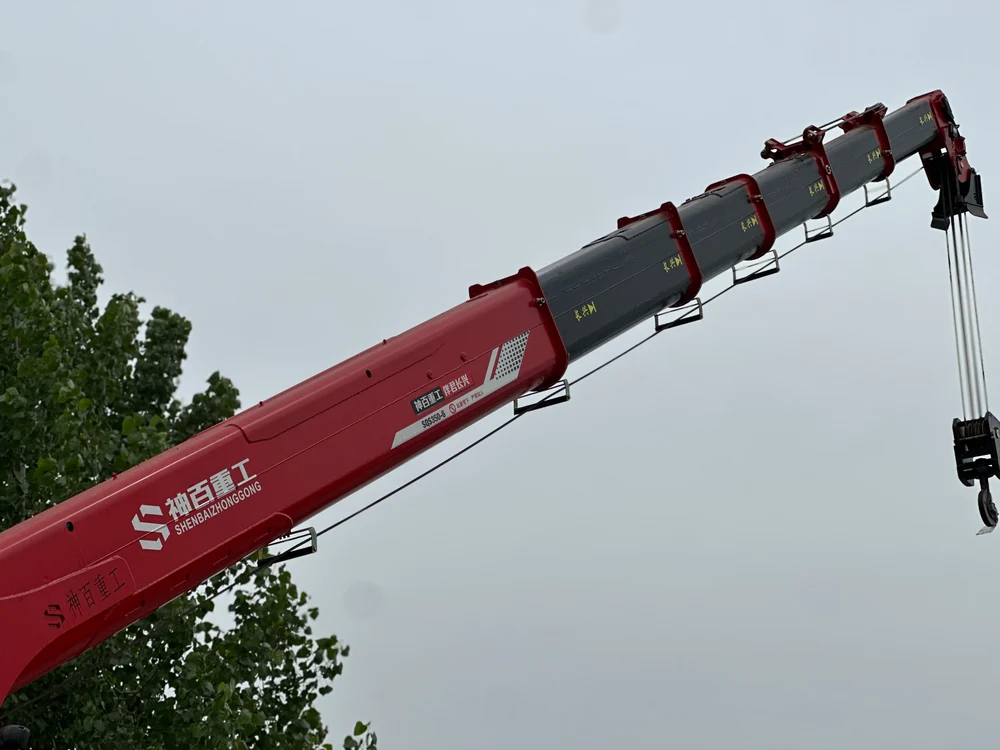

Superstructure Configuration Changxing 14-ton 6-section boom crane, 22.6m boom length, top control operation, planetary dual slewing mechanism, two-stage outriggers, built-in radiator and automatic hook retraction. Full secondary beam, 8.4m engineering cargo box with 3-side & 5-bottom reinforcement
