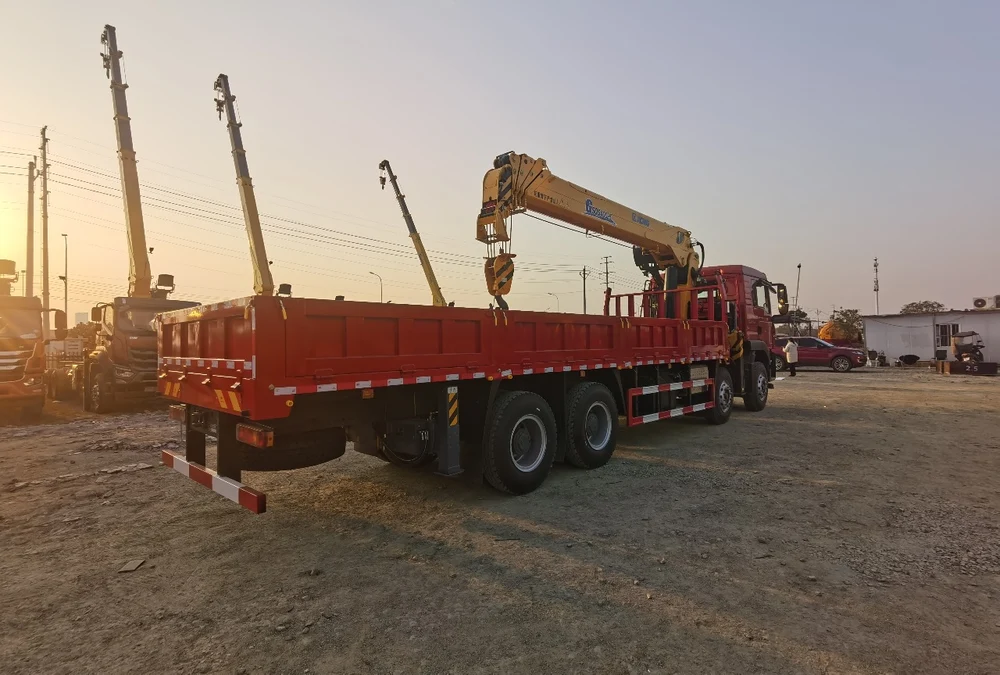

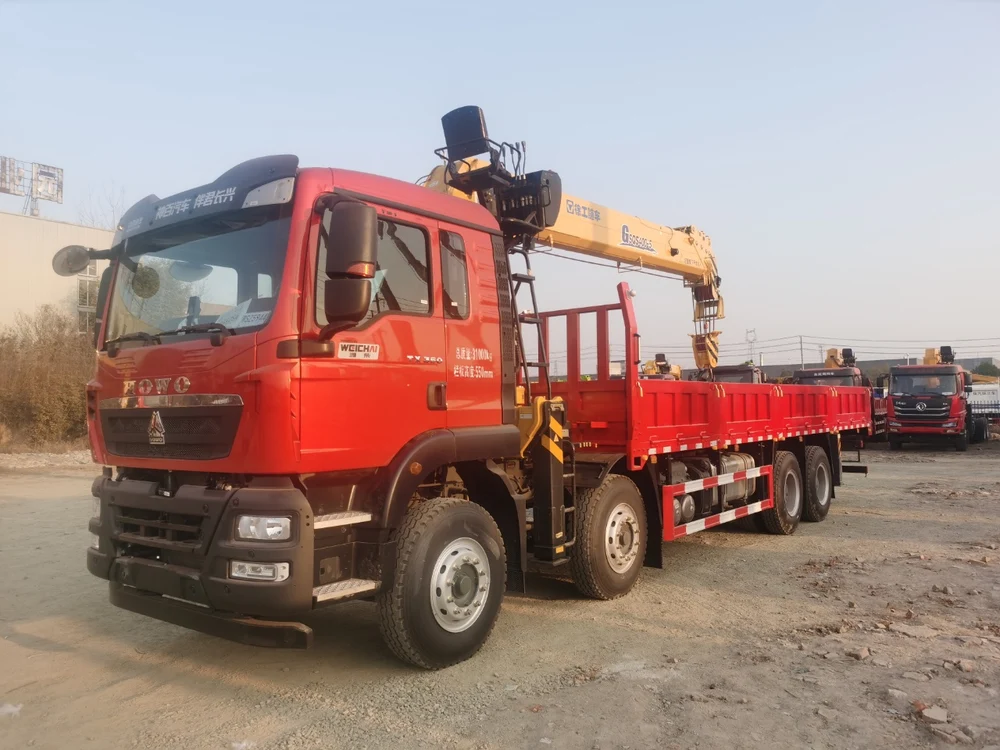

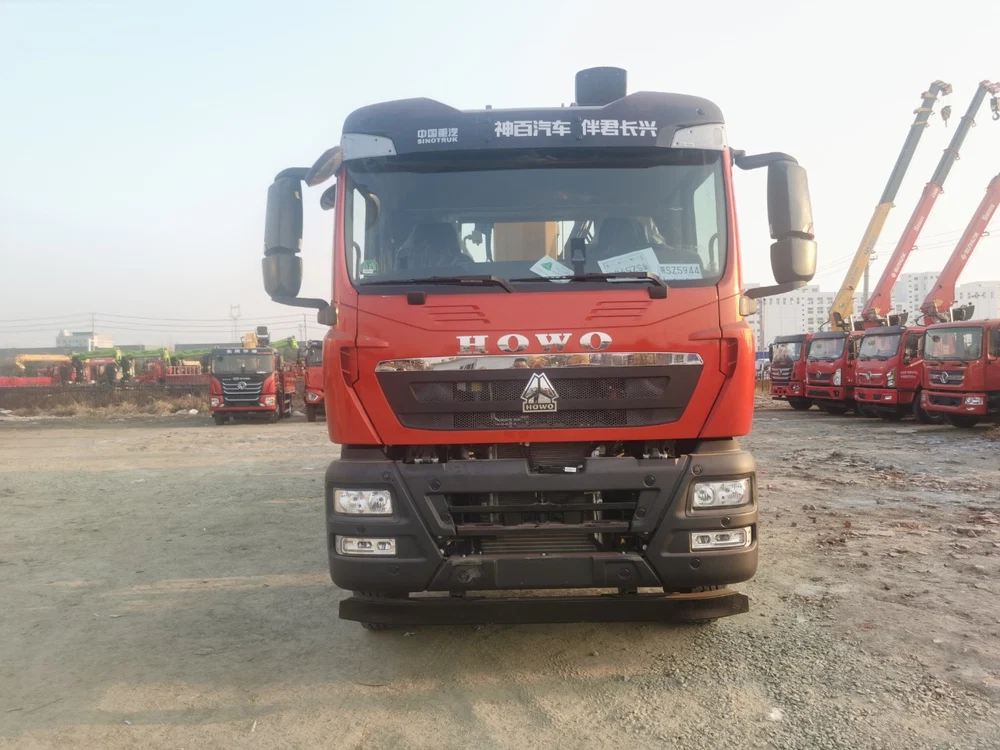

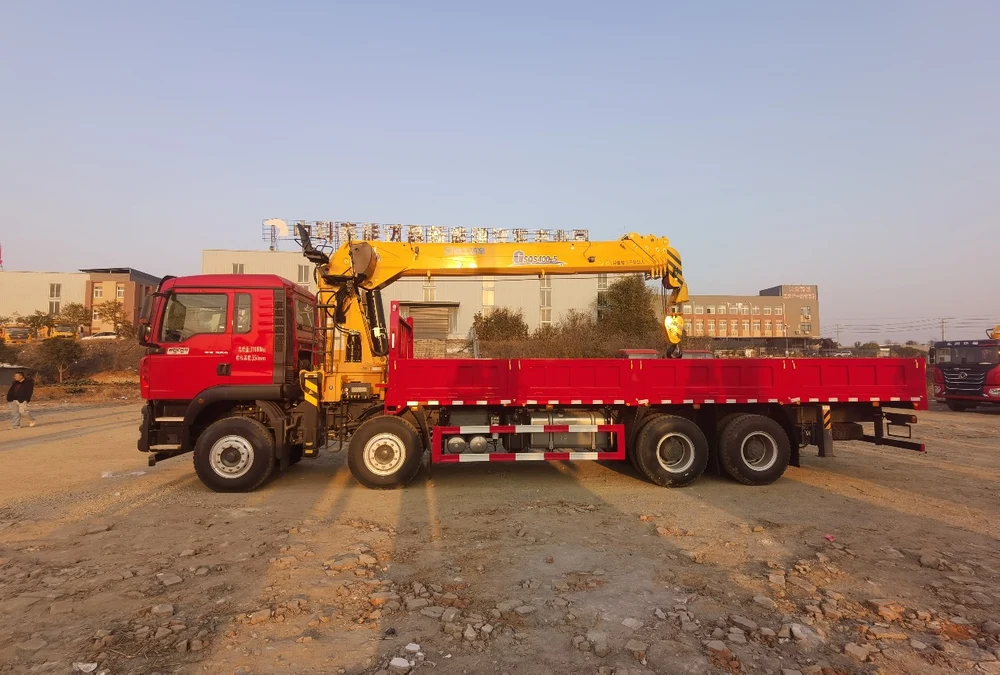

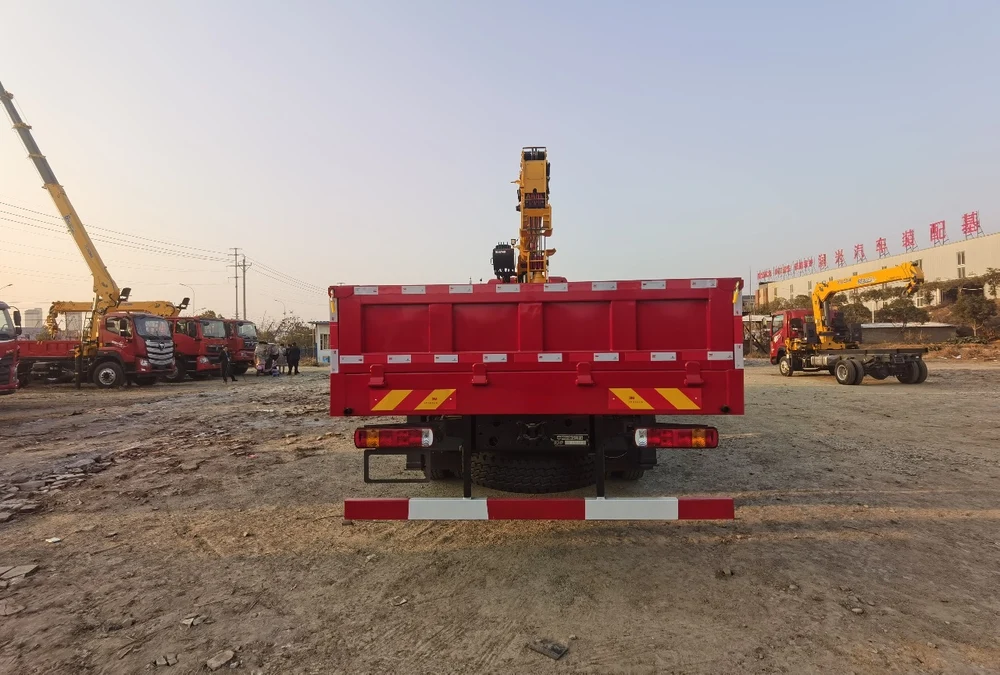

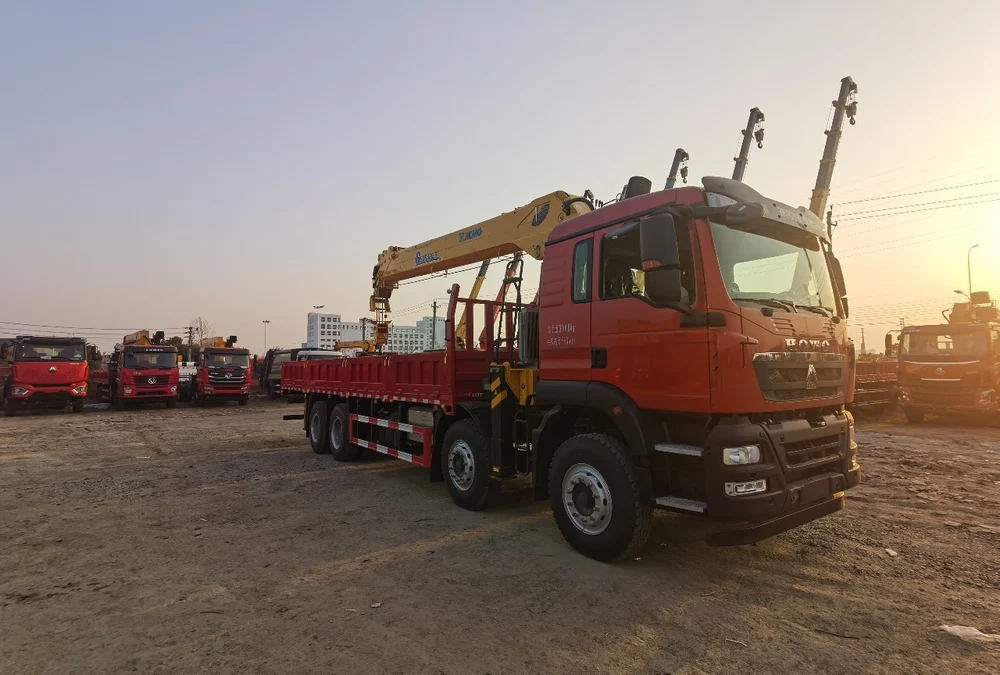

Howo XCMG 16-ton 5-section arm Truck mounted Crane

Howo XCMG 16-ton 5-section arm Truck mounted Crane
Howo XCMG 16-ton 5-section arm Truck mounted Crane
Howo XCMG 16-ton 5-section arm Truck mounted Crane
Howo XCMG 16-ton 5-section arm Truck mounted Crane
Howo XCMG 16-ton 5-section arm Truck mounted Crane
Howo XCMG 16-ton 5-section arm Truck mounted Crane
1 / 6
Howo XCMG 16-ton 5-section arm Truck mounted Crane
Howo XCMG 16-ton 5-section arm Truck mounted Crane
Howo XCMG 16-ton 5-section arm Truck mounted Crane
Howo XCMG 16-ton 5-section arm Truck mounted Crane
Howo XCMG 16-ton 5-section arm Truck mounted Crane
Howo XCMG 16-ton 5-section arm Truck mounted Crane
Parameter Item Detailed Specification
Vehicle Announcement Model ABC5312JSQZZ6
Chassis Announcement Model ZZ1317N436GF1
Engine Weichai 350HP Engine, 8.0L Displacement
Transmission & PTO HW25712XSTL Transmission + HW70 Flange Type Power Take-off
Axle Configuration Front Axle: VGD75 Self-adjusting Arm (Drum Brake)

Rear Axle: MAT16ZG Self-adjusting Arm Dual Rear Axle (Drum Brake), 16-ton Wheel-side Reducer Axle
Gear Ratio 4.42
Frame Three-layer Reinforced Frame (8+5+8/300)
Leaf Spring Quantity 11/11/12
Tire Specification 11.00R20 Mixed Tread Pattern, 18PR
Cab & Standard Configuration TX-K Cab, Electric & Heated Rear-view Mirrors, Main Airbag + Auxiliary Basic Seat, Standard Exhaust System, High-position Full Metal Bumper, 400L Fuel Tank, Cable-type PTO, Sinotruk Intelligent Connect D Version, Mechanical Power Switch
Core Advantages Weichai 350HP engine matched with Howo 12-speed transmission, integrated engine-transmission-axle design; German MAN original cab with four-point suspension and crash energy absorption technology; Aviation airbag driver seat with multi-direction adjustment and lumbar support; Three-layer reinforced frame with strong torsion resistance; V-type thrust rod for stable heavy-load driving; 16-ton wheel-side reducer rear axle with three differential locks, adaptable to harsh road conditions
Crane Superstructure XCMG G-series 16-ton 5-section boom

Max Lifting Height: 23.8m

Max Working Radius: 21.8m

Top operation, dual pump dual slewing, two-stage outriggers, with radiator and automatic hook retraction

Full-length auxiliary beam, 8.4m engineering cargo box (three-side-wall & five-floor-plate structure)
