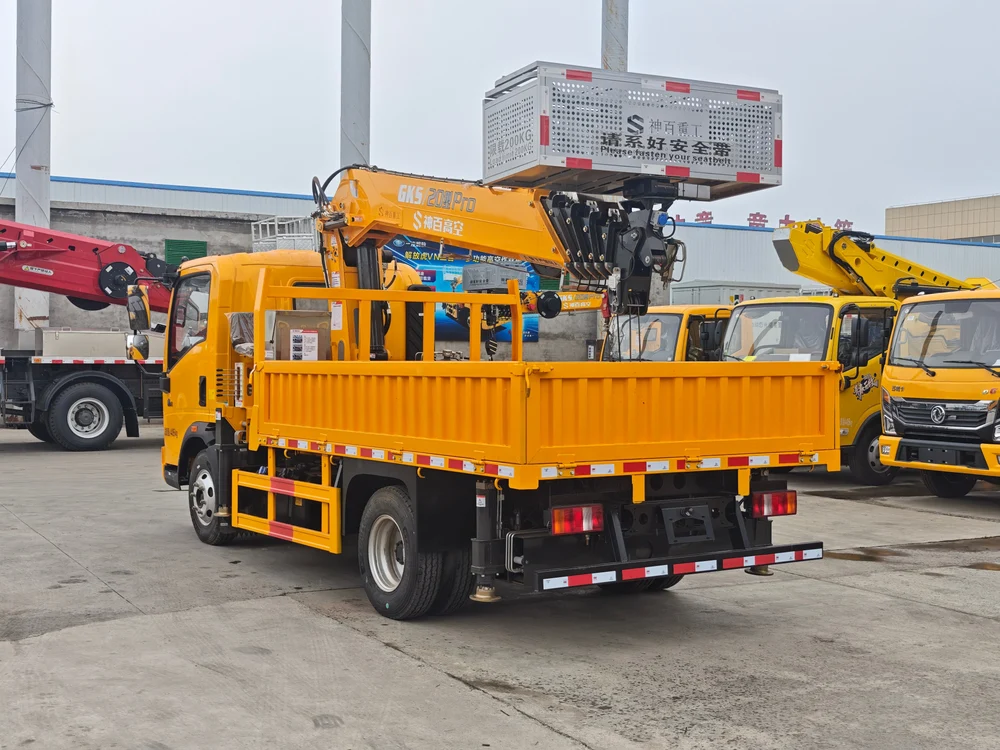

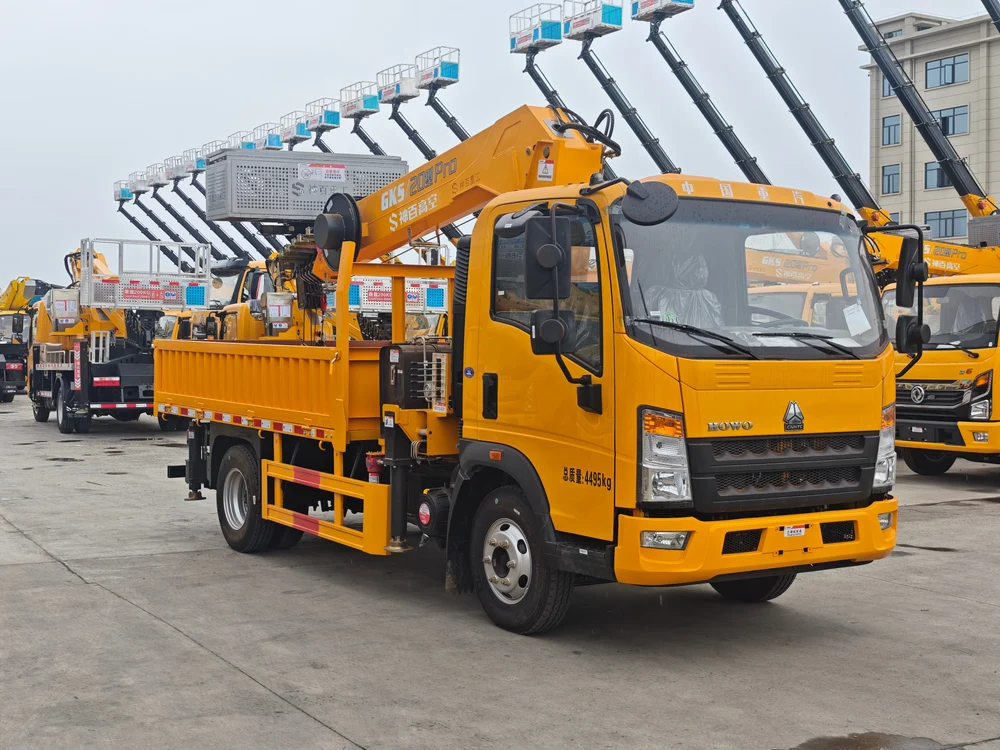

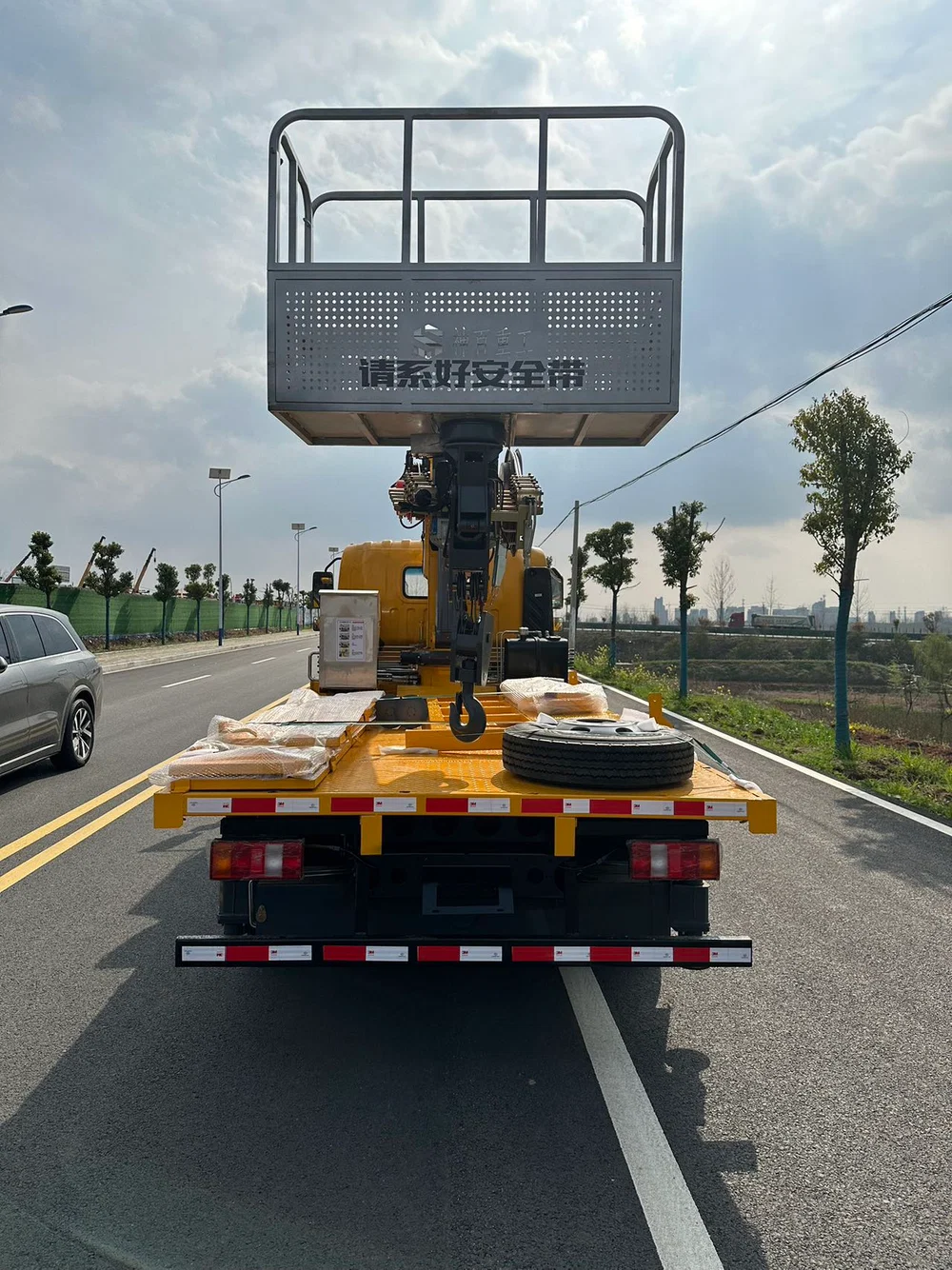

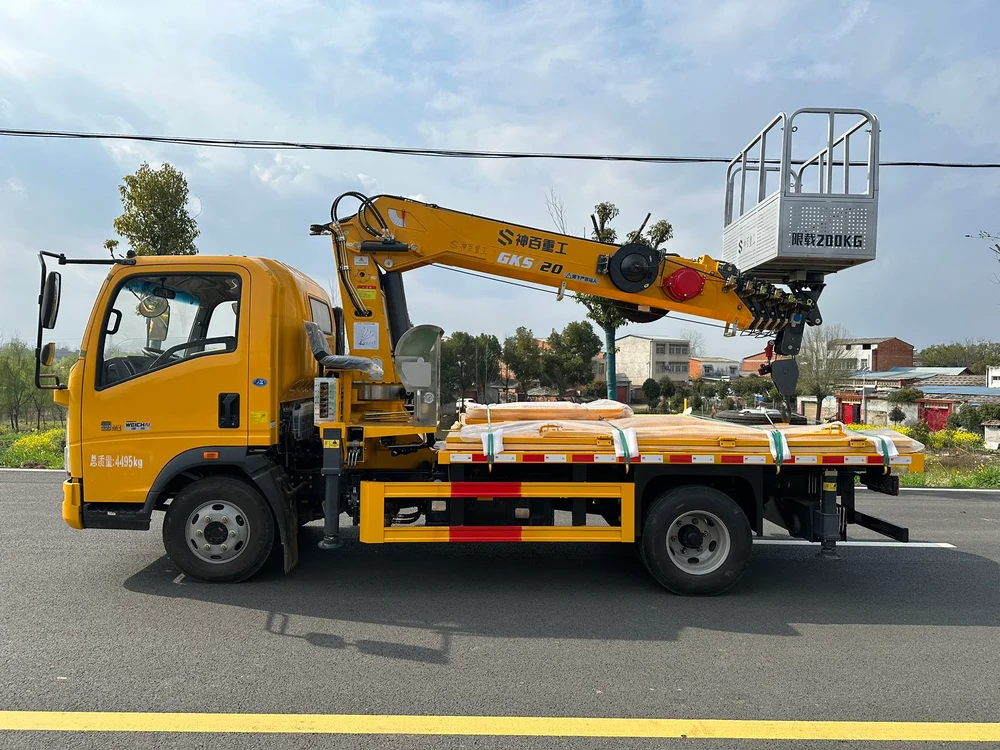

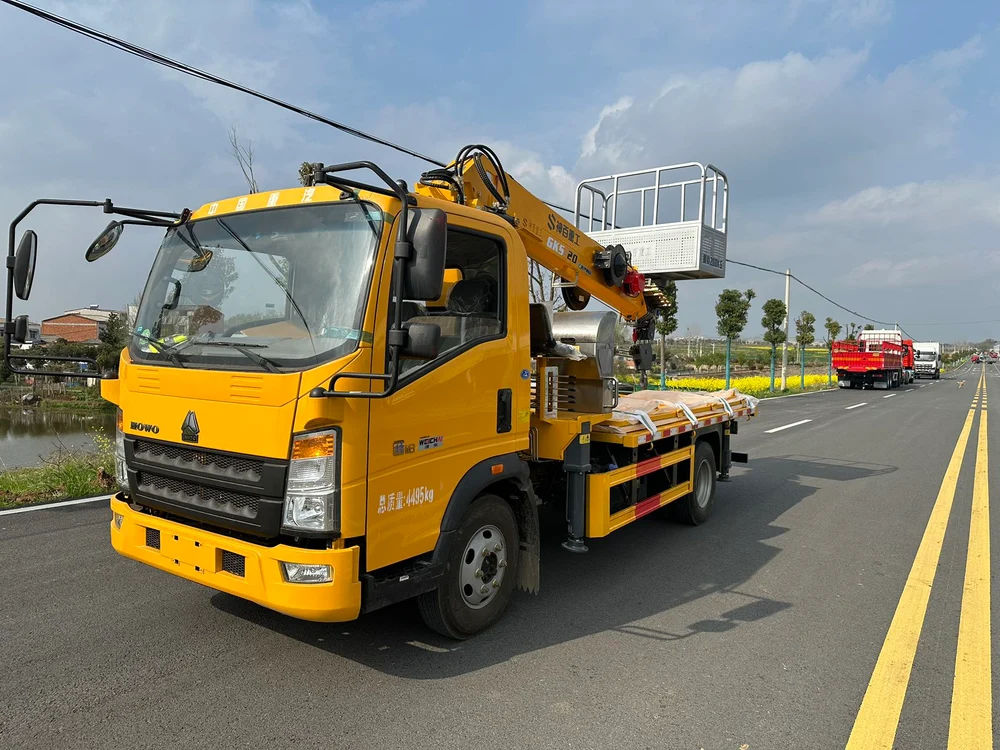

Sinotruk Howo 20-meter three-in-one multi-functional aerial work platform truck

Sinotruk Howo 20-meter three-in-one multi-functional aerial work platform truck
Sinotruk Howo 20-meter three-in-one multi-functional aerial work platform truck
Sinotruk Howo 20-meter three-in-one multi-functional aerial work platform truck
Sinotruk Howo 20-meter three-in-one multi-functional aerial work platform truck
Sinotruk Howo 20-meter three-in-one multi-functional aerial work platform truck
1 / 5
Sinotruk Howo 20-meter three-in-one multi-functional aerial work platform truck
Sinotruk Howo 20-meter three-in-one multi-functional aerial work platform truck
Sinotruk Howo 20-meter three-in-one multi-functional aerial work platform truck
Sinotruk Howo 20-meter three-in-one multi-functional aerial work platform truck
Sinotruk Howo 20-meter three-in-one multi-functional aerial work platform truck

1. Basic Vehicle Parameters

Chassis Brand

Howo

Total vehicle weight

4495 kg

curb weight

4300 kg

Overall vehicle dimensions

5998 mm × 2200 mm × 2950 mm

Engine Model

WP2.3NQ160E61

horsepower

160 horsepower

gearbox

Wanliyang 6-speed / Wanliyang Small 8-speed

Front axle/Rear axle

2tons / 3.5 tons

wheelbase

3280mm

Tire specifications

7.00R16

Braking System

Air Brake

Emission standards

Euro 6

Top speed

110 km/h

fuel tank capacity

75 liters

Lateral support leg span (front/rear)

5150 mm / 4500 mm

Standard configuration

 central locking, power windows, air conditioning

2. Basic parameters of the upper part

Maximum working height

19.2 meters

Maximum working radius

12 meters

Rated load of the work platform

200 kg

boom slewing angle

360° rotation

Overall platform dimensions

1500×700×1100 mm

Platform rotation range

±180°

boom structure

The boom has 6 sections, 5 of which are synchronous telescopic; it is equipped with a spare steel wire rope to safely lower personnel in the event of a breakage of the main rope.

control system

The electronic control system is from a well-known brand and comes standard with wireless backlighting and a central control display screen.

Hydraulic system

Electro-hydraulic proportional valve with stepless speed regulation function

Hydraulic outriggers

The H-type 4-group telescopic bracket is independently adjustable and highly stable.

Safety devices

Upper control room interlocking device, stroke limit valve protection device, hydraulic balancing device

3. Basic parameters of the crane

Maximum lifting capacity

5000 kg

Main winch

5 tons

Maximum lifting height

17 meters

boom type

6-section boom with internal rope wiring

Rotation mode

360° free rotation

Power pump

single pump

Cargo box dimensions

3300 mm × 2200 mm

Operating mode

Central control + intelligent remote control
