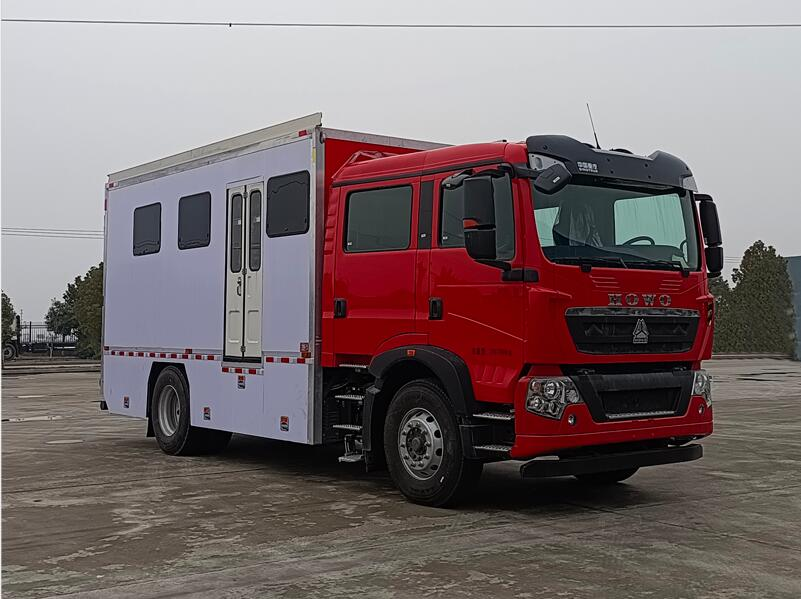

Sinotruk Howo 4×2 Double Cab Special Emergency Equipment Vehicle

Sinotruk Howo 4×2 Double Cab Special Emergency Equipment Vehicle
1 / 1
Sinotruk Howo 4×2 Double Cab Special Emergency Equipment Vehicle
Configuration Item Specification & Parameter
Vehicle Basic Parameters
Vehicle Model Sinotruk Howo 4×2 Double Cab Special Emergency Equipment Vehicle
Rated Load Capacity ≥ 3000kg
Drive Type 4×2 (Single Rear Axle)
Cab Configuration 6-Seater Double Cab, Front 2 Seats + Rear 4 Seats
Overall Dimensions (L×W×H) ≤ 7800mm × 2450mm × 3300mm
Curb Weight ≤ 8500kg
Gross Vehicle Weight ≤ 12000kg
Maximum Speed ≥ 100km/h
Minimum Turning Radius ≤ 7.5m
Gradeability ≥ 20%
Operating Temperature Range -40℃ ~ +50℃
Chassis System
Chassis Model Sinotruk Howo ZZ1127K4215F
Cab Type HW76 Double Cab, Air Suspension Driver Seat, Standard Air Conditioning, Power Windows
Number of Axles 2
Wheelbase 3800mm
Tire Specification 10.00R20 Radial Tires (6+1 Spare)
Front Axle Rated Load ≤ 4500kg
Rear Axle Rated Load ≤ 7500kg
Suspension System Front: Leaf Spring + Shock Absorber; Rear: Leaf Spring + Stabilizer Bar
Brake System Dual Circuit Air Brake, ABS, ASR, Exhaust Brake
Steering System Hydraulic Power Steering
Transmission System 6-Speed Manual Transmission, Overdrive Gear
Clutch System Diaphragm Spring Clutch, Hydraulic Operation
Engine & Powertrain System
Engine Brand Sinotruk MC Series / Weichai (Domestic Top Tier)
Engine Type 4-Stroke, Water-Cooled, Turbocharged, Intercooled Diesel Engine
Number of Cylinders Inline 6 Cylinders
Displacement ≥ 6.87L
Rated Power 155KW ~ 210KW @ 2300rpm
Rated Speed 2300rpm
Maximum Torque ≥ 820N·m @ 1200-1600rpm
Fuel System Electronic Fuel Injection, High Pressure Common Rail
Cooling System Forced Water Cooling, Large Capacity Radiator
Air Intake System Dry Air Filter, Double Stage Filtration
Exhaust System Vertical Exhaust Pipe, Spark Arrestor, Muffler
Fuel Tank Capacity ≥ 200L
Fuel Consumption ≤ 190g/KW·h
Emission Standard China VI / Euro V (Optional)
Equipment Compartment & Installation System (Core)
Compartment Structure All-Steel Welded Frame, Waterproof, Dustproof, Soundproof, Heat Insulation
Compartment Material Outer: Cold Rolled Steel Plate; Inner: Galvanized Steel Plate; Middle: Fireproof Sound-Absorbing Cotton
Internal Layout Modular Design, Customizable Equipment Installation Zones, Optimized for Double Cab Layout
Installation System High-Strength Aluminum Alloy Guide Rails, Adjustable Equipment Fixing Brackets, Quick Locking Devices
Load-Bearing Capacity Compartment Floor Rated Load ≥ 1000kg/㎡
Compartment Doors Double Opening Rear Doors, Side Access Doors, Lockable, Anti-Theft Design
Ventilation System Forced Ventilation with Fans, Air Inlet/Outlet with Dust Filters, Ventilation for Heat-Generating Equipment
Environmental Control Independent Compartment Air Conditioning (Optional), Heating System
Lighting System LED Interior Lighting, Work Lights, Emergency Lighting, Flood Lights for Night Operation
Cable Management Cable Trays, Cable Glands, Wiring Ducts, Isolated High/Low Voltage Wiring
Lifting Points Multiple Lifting Lugs for Whole Vehicle Lifting, Equipment Lifting Points
Tie-Down Points Multiple Standard Tie-Down Anchors for Equipment Securement
Power Distribution & Control System
Control System Type Intelligent Digital Integrated Control System
Display Unit 5-inch Color Touch Screen, Real-time Data Display
Monitoring Parameters Battery Voltage, Charging Status, Compartment Temperature, Equipment Status, Fuel Level, Engine Parameters
Protection Functions Overvoltage, Undervoltage, Overload, Short Circuit, Overheating, Low Battery Voltage, Reverse Connection Protection
Alarm Functions Sound & Light Alarm for Abnormal Parameters, Fault Code Display
Starting System 24V DC Electric Starting, Dual Battery Pack (≥ 120Ah)
On-board Power Supply 12V/24V DC Power Output, 220V/380V AC Power Output (Optional)
Power Distribution Panel Copper Busbar Design, Circuit Breakers, Fuses, Output Sockets
Emergency Stop Multiple Emergency Stop Buttons (Cab, Compartment)
Remote Monitoring Support 4G Remote Monitoring, GPS Positioning, Equipment Status Upload (Optional)
Safety & Protection System
Fire Protection System Automatic Fire Detection & Suppression System, Dry Powder Fire Extinguishers, Fire Blankets
Grounding System Reliable Grounding Device, Grounding Cable, Grounding Rod for Static Elimination
Anti-Corrosion Protection Whole Vehicle Sandblasting, Anti-Rust Primer, Anti-Corrosion Paint, Salt Spray Resistant
Safety Marking Standard Safety Warning Signs, Operation Instructions, Reflective Markings, Anti-Slip Stickers
Cab Safety Dual Airbags, 3-Point Seat Belts for All Seats, Crash Protection Structure, Rollover Protection
Operation Safety Interlock Protection for High Power Equipment, Safety Guard for Moving Parts, Emergency Exit Design
Lightning Protection Lightning Protection Device for Electrical System
Standard On-board Equipment
Tool Storage Stainless Steel Tool Cabinets, Drawer-Type Tool Boxes, Lockable
Equipment Fixing Adjustable Equipment Brackets, Ratchet Tie-Down Straps, Quick Locking Devices
Auxiliary Tools Standard Tool Set, Socket Wrenches, Screwdrivers, Pliers, Hammer, etc.
Lighting Equipment Portable Work Lights, Searchlight, Flashlights, Emergency Lights
Power Supply Accessories Power Cables, Extension Cords, Industrial Sockets, Connectors
Safety Equipment Safety Helmets, Safety Vests, Gloves, Goggles, First Aid Kit for 6 Persons
Cleaning Equipment High Pressure Water Gun, Cleaning Brush, Dust Pan, Garbage Bags
Optional Configuration
Equipment Modules Customized Equipment Installation Modules for Fire Rescue, Flood Control, Emergency Repair, Communication, etc.
On-board Generator Set 5KW-30KW Silent Generator, Independent Power Supply System
Lighting System Telescopic Lifting Lighting Tower, Remote Control Searchlight, Scene Lighting System
Hydraulic System On-board Hydraulic Power Station, Hydraulic Tools, Hydraulic Lifting Platform
Communication System Digital Walkie-Talkies, Mobile Repeater, Satellite Phone, Emergency Communication Terminal
Compartment Upgrade Insulated Aluminum Alloy Compartment, Fiberglass Reinforced Plastic (FRP) Compartment, Expandable Compartment
Cold Climate Package Engine Pre-Heating System, Compartment Heating System, Battery Insulation, Anti-Freezing System
Hot Climate Package Enhanced Cooling System, Compartment Ventilation, Sun Protection Coating, Heat Insulation Upgrade
Off-Road Package Off-Road Tires, Reinforced Suspension, Skid Plate, Higher Ground Clearance
Video Monitoring System Interior & Exterior Cameras, DVR, Display, Night Vision Camera, Reversing Radar
Automatic Transfer Switch (ATS) Dual Power Automatic Switching System
