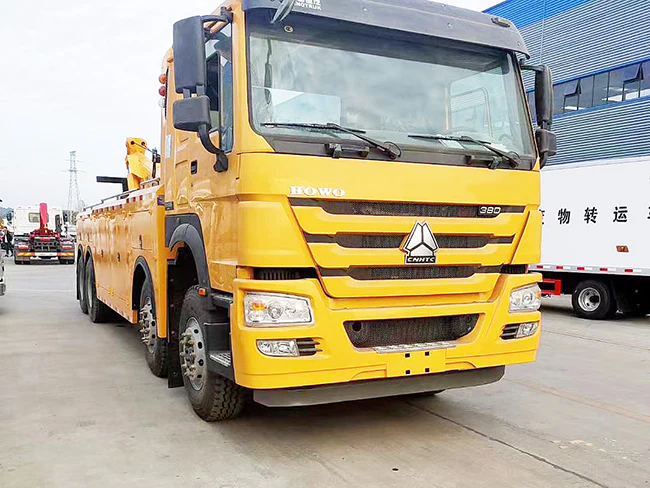

SINOTRUK HOWO 8×4 Integrated Tow & Crane Wrecker Truck

SINOTRUK HOWO 8×4 Integrated Tow & Crane Wrecker Truck
SINOTRUK HOWO 8×4 Integrated Tow & Crane Wrecker Truck
1 / 2
SINOTRUK HOWO 8×4 Integrated Tow & Crane Wrecker Truck
SINOTRUK HOWO 8×4 Integrated Tow & Crane Wrecker Truck
Configuration Item Parameter Value
1. Basic Vehicle Parameters
Product Name SINOTRUK HOWO 8x4 Wrecker Tow Truck with Integrated Crane
Gross Vehicle Weight 44000kg
Curb Weight 23210kg
Overall Dimensions 11650×2540×3210mm
Wheelbase 1950+4625+1350mm
Maximum Speed 101km/h
Maximum Gradeability 35%
Emission Standard China VI
Cab Capacity 2/3 Persons
Approach Angle/Departure Angle 14°/18°
Front Overhang/Rear Overhang 1500/2180mm
2. Chassis Configuration
Chassis Model ZZ1317N4667E1B
Engine Model WP10H400E62 / MC11.44-60
Engine Type Inline 6-cylinder, 4-stroke, Water-cooled, Turbocharged Diesel Engine
Maximum Horsepower 400HP / 440HP
Maximum Torque 1900N·m / 2100N·m
Gearbox Model HW19710 10-speed Manual Gearbox / 12JSDX220T-B 12-speed Manual Gearbox
Power Take-off HW70 Flange-type PTO
Front Axle VPD75D Disc Front Axle, 9-ton Grade
Rear Axle MAT16ZG Self-adjusting Arm Twin Rear Axles, 16-ton Grade
Axle Ratio 4.42 / 4.8
Frame Double-layer Frame (8+8/300mm)
Suspension System Front and Rear Reinforced Multi-leaf Springs (11/11/12)
Tire Specification 12.00R20 Steel Radial Tires / 315/80R22.5 Tubeless Tires
Braking System Air-over-hydraulic Brake, ABS (4S/4M)
Steering System 8118 Steering Gear, Hydraulic Power Steering
Fuel Tank 400L Aluminum Alloy Fuel Tank
Cab HOWO V7/X7 Wide-body Cab, Main Airbag + Auxiliary Simple Seat, Factory Air Conditioning, Electric Windows, Central Locking
3. Superstructure Special Configuration
Superstructure Model 25T20D Integrated Wrecker and Crane Superstructure
Crane Boom 2-section Hexagonal High-strength Steel Plate Boom, Full Rotation, Planetary Reduction
Maximum Lifting Capacity 20 Tons
Maximum Working Radius of Crane Boom 14.5m
Tow Arm 3-section Telescopic and Liftable Tow Arm
In-situ Lifting Capacity 20 Tons
Maximum Lifting Capacity at Full Extension 7.31 Tons
Maximum Towing Capacity 30 Tons
Maximum Traction Capacity of Drawbar 60 Tons
Effective Length of Tow Arm 1460mm-2950mm
Telescopic Stroke of Tow Arm 1850mm
Hydraulic System Imported Hydraulic System, Fully Imported Seals, Bilateral Linkage Operation Device, Wireless Remote Control Operation
Hydraulic Winch 2 Sets of 10-ton/15-ton Hydraulic Winches, 45m/55m Steel Wire Rope, Diameter 18mm, with 20-ton Hooks
Outriggers 4 Double-cavity Hydraulic Outriggers, Front Outriggers are Foldable
Compartment Split-type Compartment, Welded with High-strength Steel Plate
Counterweight 1.8-ton Counterweight Installed on Front Bumper
Standard Configuration 1 Set of U-type Tire Holding Device, 5 Pairs of Tow Forks, 1 Pair of Tow Fork Seats, 2 Chain Hooks, 1 Hand Wash Box, 1 Set of Auxiliary Light Assembly, 1 Set of Auxiliary Brake Air Pipe Assembly, 1 LED Long-row Engineering Warning Light, Reversing Image, 1 Set of On-board Tools
4. Performance Parameters
Maximum Lifting Height 13.1m
Slewing Angle of Crane Boom 360° Full Rotation
Upward/Downward Inclination Angle of Tow Arm 7°/-7°
Folding Angle of Tow Arm -7°~93°
Maximum Ground Clearance of Upper Surface of Fully Retracted Tow Arm 900mm
Minimum Limiting Speed of Steel Wire Rope 5m/min
Working Pressure of Hydraulic System 16MPa
