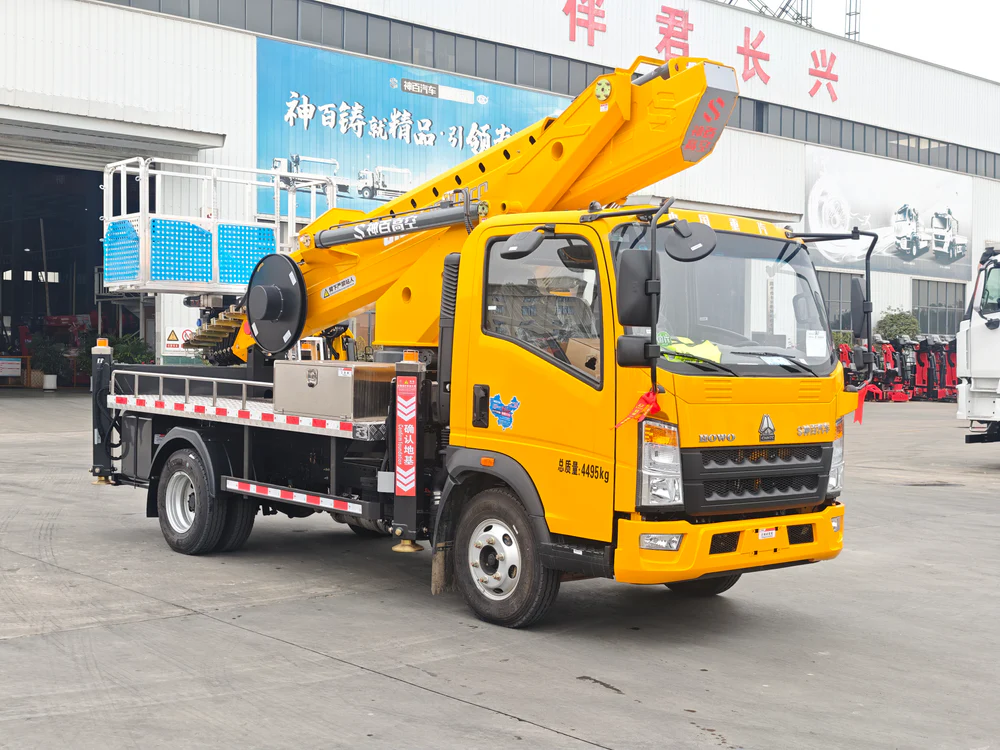

SINOTRUK Howo GKS35 Pro Aerial Work Vehicle
Item Specification
Vehicle Name SINOTRUK Howo GKS35 Pro Aerial Work Vehicle
Core Advantage 7-section boom blue plate aerial work vehicle, max working height 33.8m, Howo Wealth Creation Edition
Brand Strength 1. Authentic SINOTRUK high-end brand, 2-year extended warranty

2. Nationwide 2150 service stations for reliable after-sales support
Approval Model ABC5047JGKZZ6 Aerial Work Vehicle
Exclusive Feature Pioneer 7-section boom design, 33.8m working height with blue license plate
Technical Highlights 1. Adopt 960 high-strength steel plate

2. Double-section outriggers, span 5800mm / 6700mm

3. 7-section boom with 6-section synchronous telescoping, lifting height 33.8m

4. Equipped with double lifting cylinders

5. 9-inch basket slewing support, full aluminum alloy basket with loading platform

6. Box-type subframe and trapezoidal three-layer reinforced slewing base

7. Overall vehicle height: 3.15m

8. Max working radius: 16.5m, boom length: 30.3m

9. Max working outreach: 33.8m
Chassis Cab Howo Wealth Creation Edition Cab
Gross Vehicle Mass 4495KG
Curb Weight 4300KG
Engine Model Weichai WP25Q160E62
Transmission Wanliyang 6-speed / 8-speed gearbox, 120000km long oil change cycle
Wheelbase 3280mm
Overall Dimension 5995mm2200mm3150mm
Tire Specification 700R16
Brake System Air brake
Standard Cab Fittings Electric windows, air conditioner, central control lock
Superstructure Model GKS35 Pro
Max Working Height 33.8m
Max Working Radius 16.5m
Rated Platform Load 200KG
Boom Slewing Angle 360°
Platform Size 1800mm700mm1000mm (with flip plate)
Platform Rotation Range 360° free full rotation
Boom Configuration 7-section boom, 6 sections synchronous extension, fitted with spare steel wire rope for safe evacuation
Control System High-grade domestic electric control system, wireless remote control, middle operation console with display screen
Hydraulic System Electro-hydraulic proportional valve for stepless speed regulation, built-in emergency power unit
Hydraulic Outriggers X-type 4 sets of double-section independently adjustable outriggers
Walkway Plate Aluminum alloy anti-slip walkway plate
Safety Devices Upper & lower operation interlock, emergency power source, two-way hydraulic balance valve, outrigger soft leg protection, hydraulic radiator, 220V external power supply
Optional Equipments Upper operation cab, 1-ton winch
