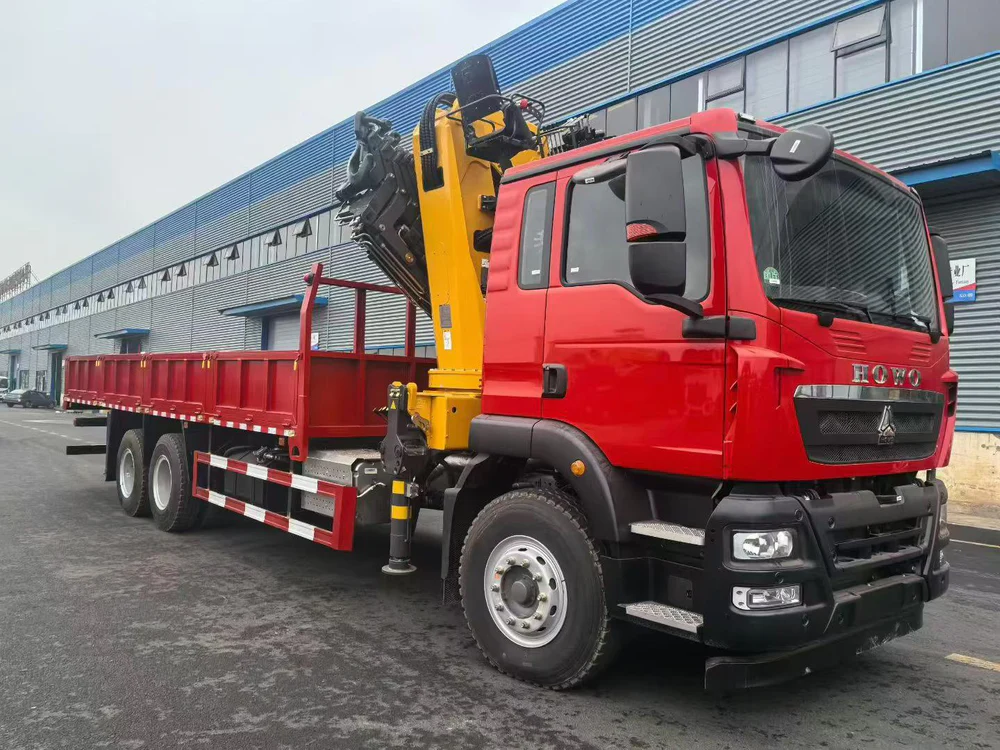

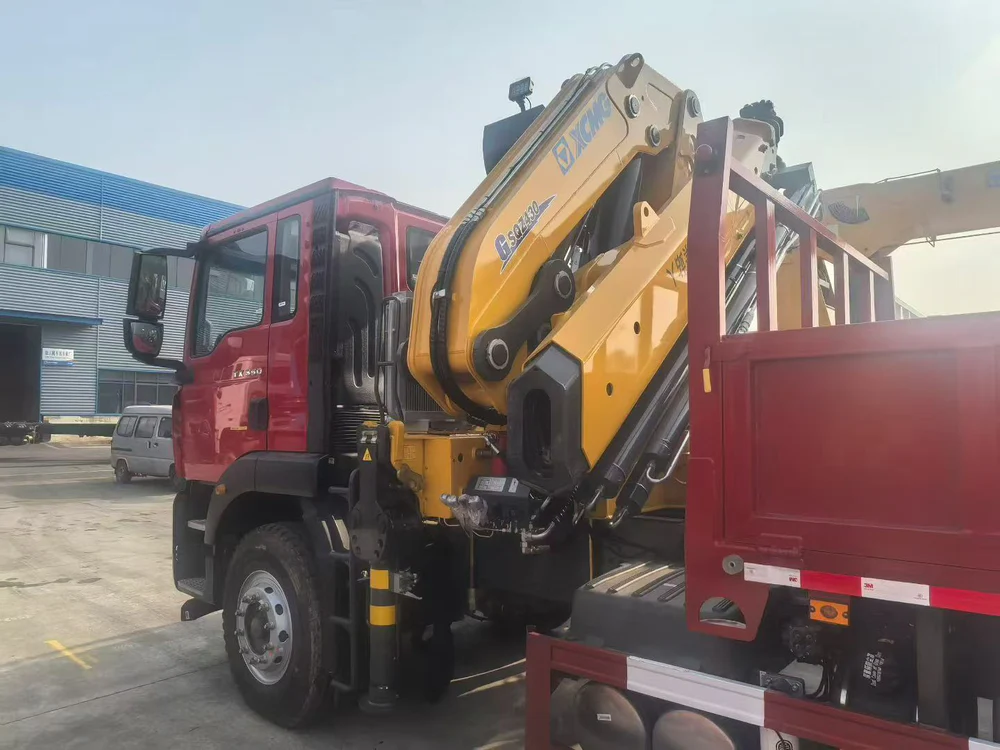

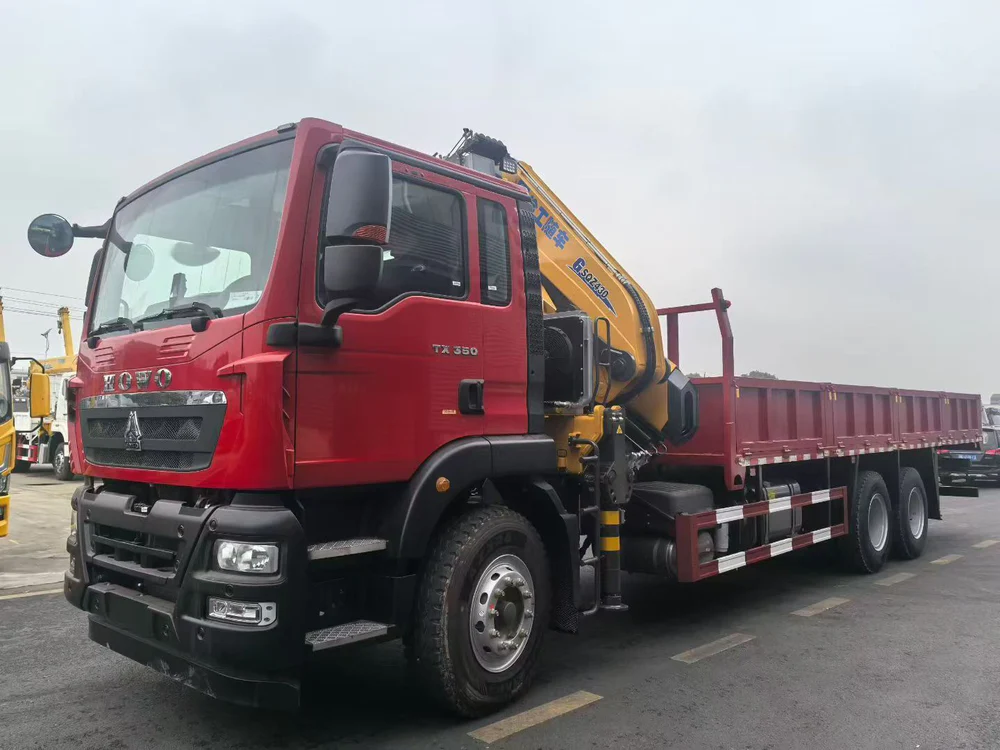

Sinotruk Howo TX 12T XCMG Folding Boom Lorry Crane

Sinotruk Howo TX 12T XCMG Folding Boom Lorry Crane
Sinotruk Howo TX 12T XCMG Folding Boom Lorry Crane
Sinotruk Howo TX 12T XCMG Folding Boom Lorry Crane
1 / 3
Sinotruk Howo TX 12T XCMG Folding Boom Lorry Crane
Sinotruk Howo TX 12T XCMG Folding Boom Lorry Crane
Sinotruk Howo TX 12T XCMG Folding Boom Lorry Crane
Configuration Category Detailed Parameters
Basic Vehicle Information Model: Sinotruk Howo TX 6×4 (Rear Eight-Wheel) Knuckle Boom Crane Truck; Drive Form: 6×4 (3 axles, rear double axles); Emission Standard: National VI (Euro VI); Gross Vehicle Mass (GVW): 31000kg; Curb Weight: Approximately 18500kg; Rated Payload: Approximately 12500kg; Overall Vehicle Dimensions (L×W×H): Approximately 12000×2550×3850mm; Wheelbase: 3800+1350mm (adjustable on demand); Application Scenarios: Engineering hoisting, equipment installation, building materials transportation, power construction, municipal engineering and other medium and heavy-duty hoisting operations.
Chassis Configuration (Howo TX) 1. Engine: Weichai WP9H350E62 inline six-cylinder diesel engine, 350HP (257kW), displacement 9.5L, maximum torque 1400N·m@1200-1600rpm, adopting high-pressure common rail + EGR + DOC + DPF + SCR National VI emission technology, with strong power and good fuel economy, suitable for heavy-duty working conditions; 2. Gearbox: Fast 10JSD160T 10-speed manual transmission (with synchronizer), smooth shifting, strong bearing capacity, suitable for long-term heavy-duty operations; 3. Power Take-Off (PTO): Original flange-type PTO, dedicated to driving the crane hydraulic system, with stable power output; 4. Axles: 7.5-ton reinforced integral front axle, double 16-ton heavy-duty wheel-side reduction rear axles (Qingte/Fangsheng), with outstanding bearing capacity, wear resistance and durability; 5. Speed Ratio: 4.875 engineering heavy-duty speed ratio (optional 4.444/5.286), suitable for complex road conditions and hoisting operation needs; 6. Suspension: Front 10-leaf, rear 12-leaf+4 reinforced multi-leaf spring suspension, excellent shock absorption performance, stable driving, suitable for uneven roads such as construction sites; 7. Tires: 11.00R20 18PR all-steel wear-resistant tires, puncture-resistant and wear-resistant, suitable for complex outdoor operating environments; 8. Cab: Howo TX standard cab, mechanical full-floating suspension, hydraulic tilting (easy for maintenance), original air conditioning, power windows, central locking, airbag shock-absorbing seat (adjustable), wide berth, LCD instrument, cruise control, ABS anti-lock braking, driving recorder, exhaust brake, ensuring driving comfort and safety; 9. Frame: 300mm (8+6+6) straight-through three-layer frame with flange, reinforced structure, strong bearing capacity, suitable for crane installation and heavy-duty transportation.
Upper Mounting Crane Configuration (XCMG 12-ton 5-Section Knuckle Boom) 1. Crane Brand and Model: XCMG original 12-ton 5-section knuckle boom crane (recommended model: XCMG G12T5), core components (hydraulic pump, motor, oil cylinder) are all XCMG original, with reliable quality and long service life; 2. Rated Tonnage: 12 tons, maximum lifting moment 320kN·m, suitable for medium and heavy-duty hoisting operations; 3. Boom Structure: 5-section telescopic knuckle boom, made of high-strength manganese steel, thickened boom wall design, strong bearing capacity and not easy to deform; 4. Key Parameters: Maximum working boom length 18.75 meters, maximum lifting height approximately 20.8 meters, wide operating coverage, meeting the needs of high-altitude and long-distance hoisting; 5. Hydraulic System: XCMG original high-pressure hydraulic system, working pressure 32MPa, equipped with 200L large-capacity oil tank and hydraulic oil radiator, effectively preventing hydraulic oil overheating, stable operation and low noise; equipped with safety components such as overflow valve and pressure relief valve to avoid hydraulic system failures; 6. Operation Mode: Full hydraulic control, supporting wireless remote control (effective distance ≥50 meters) + manual dual operation modes, flexible and convenient operation, accurate positioning, reducing manual labor intensity; 7. Rotation Performance: 360° continuous full rotation, rotation speed 0-2.5r/min, smooth rotation, no operation dead angle; 8. Outrigger Configuration: Double-sided hydraulic telescopic outriggers (double-section composite front outriggers), outrigger span approximately 7.6 meters, large support area, improving hoisting stability and effectively preventing vehicle rollover; 9. Safety Configuration: Equipped with moment limiter (real-time display of lifting moment, overload alarm and action cut-off), overload protection, anti-rebound device, emergency stop button (remote + manual dual control), fully ensuring operation safety; 10. Installation Position: Middle-mounted installation, reasonable center of gravity, not occupying the effective space of the cargo box, taking into account driving stability and hoisting safety; 11. Other Configurations: Original hydraulic oil radiator, dual pump, equipped with hoisting night lighting spotlights, suitable for night operation needs.
Cargo Box Configuration Cargo Box Dimensions: 7.2m×2.45m×0.6m (engineering version); Material: National standard high-strength manganese steel, 3mm side plate and 5mm bottom plate thickened design, reinforced columns and dense cross beams, wear-resistant and impact-resistant, suitable for heavy-duty transportation at construction sites; Structure: Engineering version cargo box, upper welding and lower riveting robot full welding process, bottom bending inverted cross beams, dense detachable guardrails, easy for maintenance; Optional Configuration: Front-mounted hydraulic tipper function, large-flow hydraulic lifting system, stable and powerful lifting, convenient loading and unloading of sand, building materials and other materials, improving operation efficiency.
Vehicle Protection and Durability 1. Anti-Corrosion Treatment: The whole vehicle adopts electrophoretic anti-corrosion process, thickened paint layer, rust-proof and corrosion-resistant, suitable for complex operating environments such as outdoor and humidity; 2. Crane Protection: The crane boom is equipped with anti-collision rubber pads, and the hydraulic oil pipes adopt high-pressure explosion-proof hoses and explosion-proof joints, safe and reliable; 3. Daily Maintenance: Reserved convenient maintenance channels, equipped with centralized lubrication system, reducing maintenance difficulty and later use cost; 4. Others: Full-vehicle high-voltage line protection, reinforced treatment of key parts of the chassis, improving the service life of the whole vehicle.
Core Advantages 1. Power Matching: Weichai 350HP engine is perfectly matched with Fast 10-speed gearbox and heavy-duty axles, with strong power, which can easily meet the dual heavy-duty needs of hoisting and transportation; 2. Hoisting Performance: XCMG 12-ton 5-section knuckle boom crane, with sufficient boom length, stable bearing and flexible operation, suitable for multi-scenario hoisting operations; 3. Reliability: Both Howo TX chassis and XCMG crane are well-known brands, with mature technology, low failure rate and convenient maintenance; 4. Safety: Multiple safety protection devices, stable outrigger support, and guaranteed operation safety; 5. Adaptability: Suitable for various complex working conditions such as engineering construction, power emergency repair, and building materials transportation, with strong practicality.
