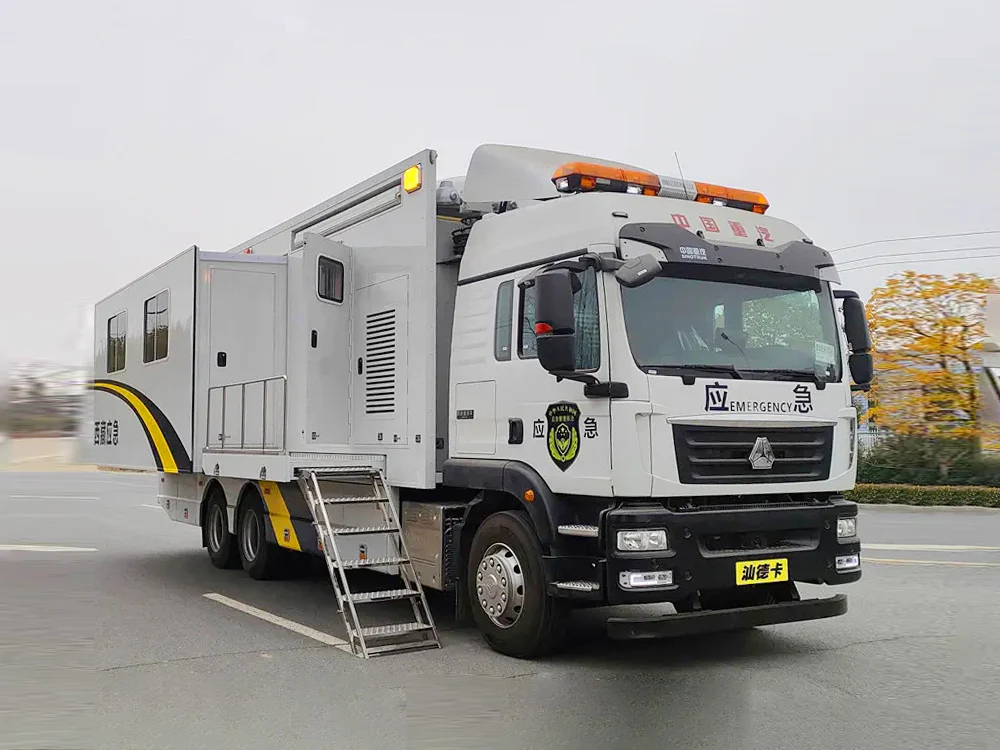

Sinotruk SITRAK 6×4 Emergency Command Vehicle
Configuration Item Specification & Parameter
Basic Vehicle Parameters
Full Model Name Sinotruk SITRAK 6×4 Emergency Command Vehicle
Drive Mode 6×4 Rear Double Axle
Seating Capacity 2 seats in driving cab + 6 working seats in rear command compartment
Overall Dimension (L×W×H) 11800mm × 2550mm × 3950mm
Curb Weight 17800kg
Gross Vehicle Weight 32000kg
Max. Speed ≥ 90km/h
Min. Turning Radius ≤ 9.5m
Gradeability ≥ 30%
Working Ambient Temperature -40℃ ~ +55℃
Chassis Parameters
Original Chassis Model Sinotruk SITRAK C7H 6×4
Cab Type High-roof single row cab, air suspension driver seat, automatic air conditioning
Wheelbase 4600+1350mm
Tire Spec 12.00R20 steel radial tires (1 spare tire included)
Front Axle Load 7000kg
Rear Tandem Axle Total Load 25000kg
Suspension Front leaf spring, rear heavy-duty leaf spring with stabilizer bar
Brake System Dual-circuit air brake, ABS, ASR, exhaust auxiliary brake
Steering Hydraulic power steering
Transmission 12-speed AMT automatic transmission
Main Engine System
Engine Brand Sinotruk MC13 Diesel Engine
Engine Type Inline 6-cylinder, water-cooled, turbocharged & intercooled
Displacement 12.42L
Rated Power / Speed 400hp (294kW) / 1900rpm
Peak Torque 2000N·m @ 1000~1400rpm
Fuel Supply High pressure common rail electronic injection
Fuel Tank Volume 400L
Emission Standard National VI / Euro VI
Exhaust Device Vertical exhaust with spark arrester & silencer
Rear Command Compartment (Core)
Compartment Structure All steel welded sealed box, fully waterproof, dustproof, sound insulation & thermal insulation
Outer Plate Cold rolled steel plate; Inner decorative fireproof panel
Floor Anti-static fireproof floor, concealed wiring channel
Access Design Side maintenance door, rear double door, external aluminum boarding ladder
Window Configuration Double-layer hollow tempered privacy glass with sunshade curtain
Ventilation System Positive pressure forced air intake + exhaust fans, rainproof dust filter shutters
Internal Environment Control Dual independent inverter air conditioners + heating system, constant temperature control
Interior Lighting Dimmable LED ambient light, console task light, emergency evacuation light
Exterior Warning Light Top integrated orange long-row warning light bar
Integrated Command & Communication System
Central Operation Platform Integrated intelligent command host, 4 multi-function operation workstations
Video Conference System HD MCU multi-point video conference terminal, screen sharing & remote meeting
Satellite Communication Vehicle-mounted moving VSAT satellite station, global voice/video/data transmission
Trunking Radio System DMR digital repeater, group call / emergency call function
Network Access 5G/4G multi-carrier aggregation router, full coverage WiFi6, VPN encrypted transmission
Audio PA System Digital audio matrix, outdoor high-power loudspeaker, emergency siren broadcast
Positioning Module Beidou + GPS dual-mode high-precision positioning, real-time vehicle tracking
Display System Wall-mounted multi-split display screen, real-time monitoring of field situation
Power Supply & Distribution System
Power Supply Mode 4-way redundant power: city mains / onboard silent generator / UPS backup / chassis power
On-board Generator 25kW silent diesel generator, auto start-stop linkage
Online UPS Power 20kVA UPS uninterruptible power supply, standby time ≥ 2 hours
Main Distribution Cabinet Intelligent copper busbar power cabinet, overload, short circuit, leakage full protection
Output Interface Multiple 220V AC industrial sockets, 380V heavy-duty power terminals, 24V DC ports
Low/High Voltage Separate Wiring Fire-resistant wiring harness, independent circuit protection for each loop
Full Safety Protection System
Fire Protection Smoke & temperature automatic fire alarm, dry powder fire extinguishers inside & outside
Grounding System Retractable grounding rod & cable, whole vehicle equipotential bonding, grounding resistance ≤ 4Ω
Lightning Protection Class II lightning protection module for communication and power circuits
Anti-corrosion Treatment Whole vehicle sandblasting primer + outdoor anti-corrosion finish paint
Safety Marking Standard emergency reflective marking, warning signs, operation specification labels
Emergency Devices Multi-position emergency stop buttons, escape hammer, first aid kit
360° Surveillance Panoramic exterior cameras + interior monitoring system with DVR storage
Standard Equipments & Optional Upgrades
Standard On-board Accessories Conference table, office chairs, printer, whiteboard, intercom terminals, safety protective gear
Optional Upgrade 1 UAV vehicle-mounted take-off & control system, roof sliding drone platform
Optional Upgrade 2 Larger capacity lithium battery pack, solar auxiliary power system
Optional Upgrade 3 Expandable slide-out compartment, bulletproof armored compartment upgrade
Optional Upgrade 4 Cold region preheating package / high temperature enhanced cooling package
