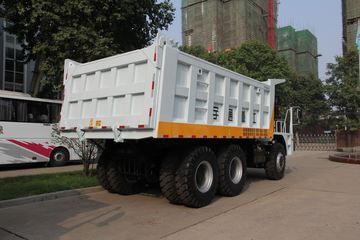

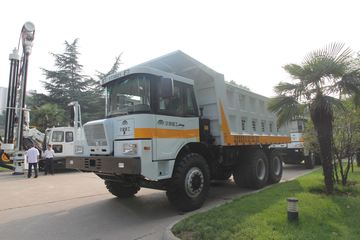

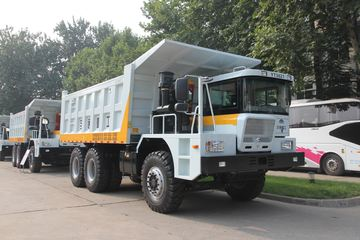

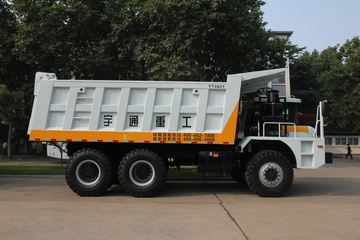

Yutong Heavy Industry 375hp 6X4 Wide-body Mining Dump Truck (40 tons)

Yutong Heavy Industry 375hp 6X4 Wide-body Mining Dump Truck (40 tons)
Yutong Heavy Industry 375hp 6X4 Wide-body Mining Dump Truck (40 tons)
Yutong Heavy Industry 375hp 6X4 Wide-body Mining Dump Truck (40 tons)
Yutong Heavy Industry 375hp 6X4 Wide-body Mining Dump Truck (40 tons)
1 / 4
Yutong Heavy Industry 375hp 6X4 Wide-body Mining Dump Truck (40 tons)
Yutong Heavy Industry 375hp 6X4 Wide-body Mining Dump Truck (40 tons)
Yutong Heavy Industry 375hp 6X4 Wide-body Mining Dump Truck (40 tons)
Yutong Heavy Industry 375hp 6X4 Wide-body Mining Dump Truck (40 tons)
Basic Information
Driving License Required A1, A2, B2 -
Wheelbase 3600/1500 mm
Model YT3621 -
Drive Type 6×4 -
Front Track 2422 mm
Rear Track 2262 mm
Curb Weight 22 tons
Rated Load Capacity 40 tons
Gross Vehicle Weight 62 tons
Overall Dimensions (L×W×H) 8.75×3.25×3.7 m
Maximum Speed 49 km/h
Minimum Ground Clearance 380 cm
Minimum Turning Radius 0.011 m
Maximum Gradeability 35 %
Approach Angle 30 °
Departure Angle 45 °
Engine Parameters
Engine Model Weichai WD12.375 (Optional: Yuchai YC6M375-20) -
Maximum Output Power 276 kW
Maximum Horsepower 375 HP
Maximum Torque Speed 1500/1550 rpm
Emission Standard National III / Euro III -
Transmission Parameters
Transmission Model FAST 9JS180 -
Number of Gears 9 gears
Superstructure Parameters
Vehicle Brand Zhengzhou Yutong -
Lifting Type Offset Reversible Floating Type -
Maximum Tipping Angle 22 °
Other Specifications Spring energy storage air brake; Cargo box volume: 26 m³ (level) / 31 m³ (heaped); Braking distance: 16 m -
Chassis Parameters
Front Axle Load 13 tons
Rear Axle Load 25 tons
Tires
Number of Tires 10 pcs
Tire Specification 14.00-24 -
