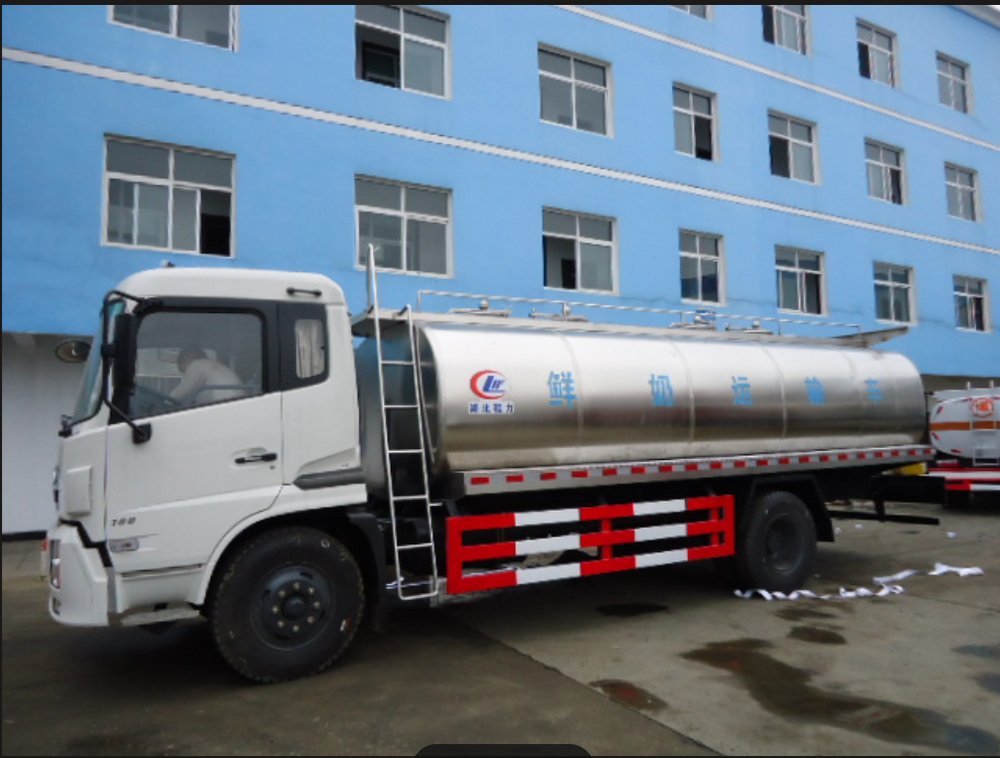

Dongfeng Fresh Milk Transport Tank Truck

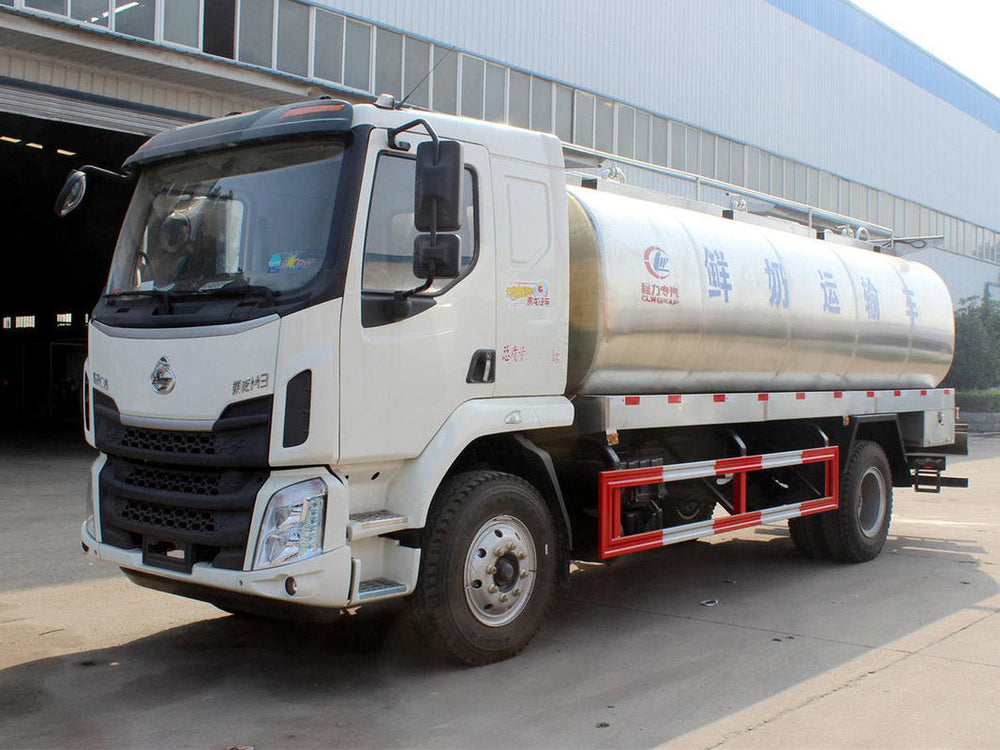

Dongfeng fresh milk transport tank truck - front three-quarter view

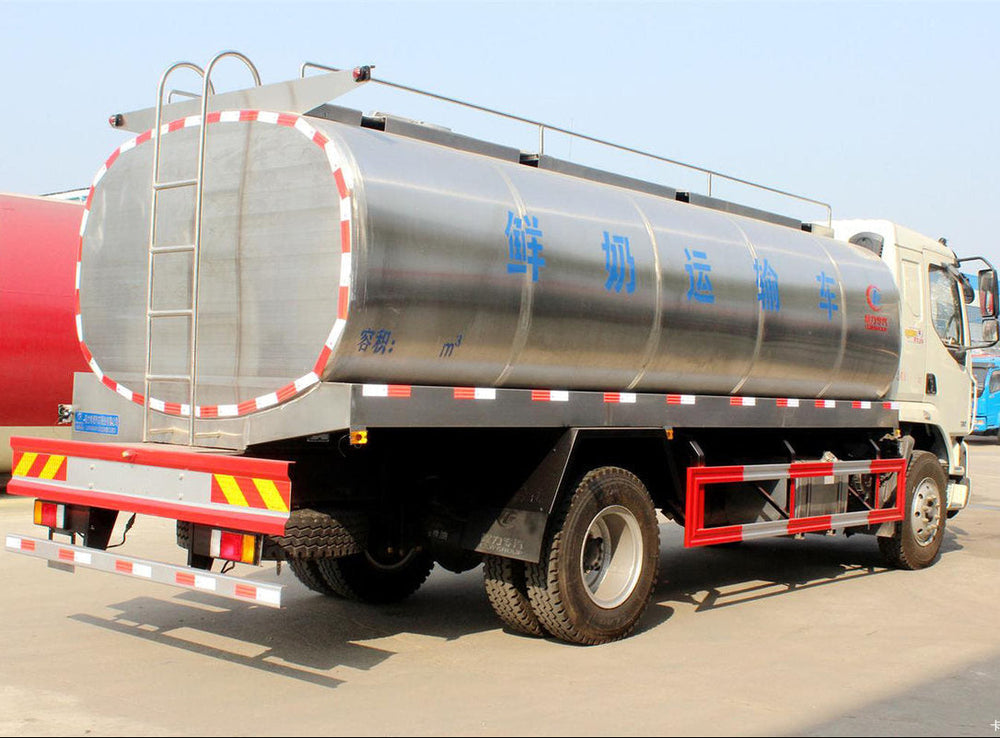

Dongfeng fresh milk transport tank truck - rear three-quarter view
Dongfeng Fresh Milk Transport Tank Truck
1 / 3
Dongfeng fresh milk transport tank truck - front three-quarter view
Dongfeng fresh milk transport tank truck - rear three-quarter view
Dongfeng Fresh Milk Transport Tank Truck
Category Item Detailed Specification
Chassis Basic Info Chassis Model New Chenglong M3 (Dongfeng Liuzhou Motors)
Drive Layout 4×2 Rear Wheel Drive
Full Vehicle Type Food Grade Fresh Milk Tank Transport Truck
Rated Payload 8.72 tons
Power System Engine Model Yuchai YC6JA180-50 Diesel Engine
Rated Horsepower 180 HP
Emission Standard National V (Euro V)
Transmission Gearbox 8-speed Manual Transmission
Tank Body Parameters Tank External Dimension 6.0 m × 2.35 m × 1.6 m
Tank Material Food-grade 304 Stainless Steel, one-piece seamless forming
Thermal Insulation Layer Thick Polyurethane foam insulation, long-time constant temperature preservation
Internal Structure Built-in anti-wave baffles to prevent milk sloshing during driving
Tank Accessories Stainless steel manhole, top walking platform & safety ladder, anti-overflow valve, vacuum protection valve
Loading & Unloading System Food-grade stainless steel centrifugal milk pump, fast suction & discharge pipeline
CIP Cleaning Interface Reserved self-cleaning port for dairy factory circulation cleaning
Chassis & Running Gear Suspension System Front and rear leaf spring suspension with hydraulic shock absorbers
Brake System Air brake system, ABS anti-lock braking system
Wheel Configuration Dual rear wheels, heavy-duty steel wheel rims
Safety Accessories Red-white reflective warning strips, red side protection skirts, rear anti-collision buffer guard
Cab Standard Configuration Cab Type Single row medium-sized cab with wide vision split rear-view mirrors
Exterior Features Integrated composite headlamps, front fog lights, Chenglong brand logo
Interior Equipment Multi-speed windshield wipers, fabric seats, storage compartments, optional air conditioning
Vehicle Core Advantages Selling Points 1. Yuchai 180HP high-torque engine, strong power and low fuel consumption

2. 304 food-grade stainless steel tank, meet international dairy transportation sanitation standards

3. Thick thermal insulation layer keeps raw milk fresh for long-distance transportation

4. Anti-wave partition design improves driving stability and avoids milk loss

5. Complete CIP cleaning system, easy tank maintenance without residual milk

6. Large 8.72-ton rated load capacity, high transport efficiency for dairy farms and milk factories
