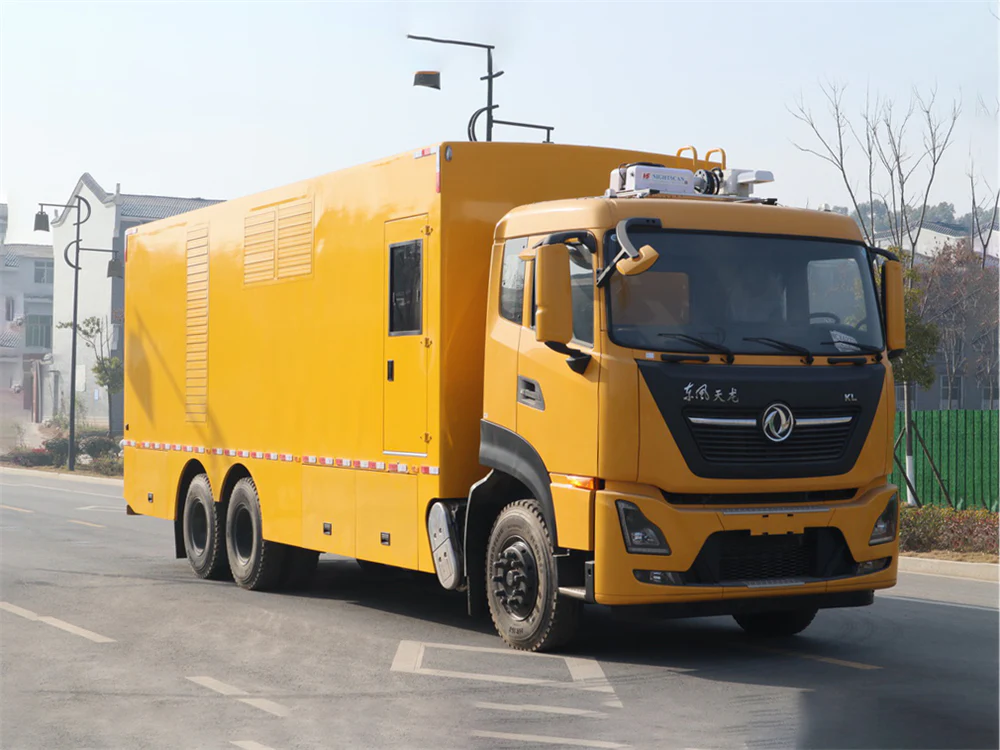

Dongfeng Tianlong Emergency Power Supply Vehicle
Configuration Item Specification & Parameter
Vehicle Basic Parameters
Vehicle Model Dongfeng Tianlong Rear Double Axle Power Vehicle
Rated Power Range 500KW - 800KW
Drive Type 6×4 (Rear Double Axle)
Overall Dimensions (L×W×H) ≤ 12000mm × 2550mm × 3800mm
Curb Weight ≤ 18000kg
Gross Vehicle Weight ≤ 32000kg
Maximum Speed ≥ 90km/h
Minimum Turning Radius ≤ 9.5m
Gradeability ≥ 30%
Operating Temperature Range -40℃ ~ +50℃
Chassis System
Chassis Model Dongfeng Tianlong DFL1320A
Cab Type D320 Integrated Cab, Air Suspension Seat
Number of Axles 3
Wheelbase 4350+1350mm
Tire Specification 12.00R20 Radial Tires (10+1 Spare)
Front Axle Rated Load ≤ 7500kg
Rear Axle Rated Load ≤ 24500kg
Suspension System Front: Leaf Spring + Shock Absorber; Rear: Leaf Spring + Stabilizer Bar
Brake System Dual Circuit Air Brake, ABS, ASR
Steering System Hydraulic Power Steering
Engine System
Engine Brand Domestic Top Tier Brand / Imported Brand (Optional)
Engine Type 4-Stroke, Water-Cooled, Turbocharged, Intercooled Diesel Engine
Number of Cylinders V12 / Inline 6 Cylinders
Displacement ≥ 15L
Rated Power 550KW ~ 880KW @ 1500rpm
Rated Speed 1500rpm
Maximum Torque ≥ 3500N·m @ 1000-1200rpm
Fuel System Electronic Fuel Injection, High Pressure Common Rail
Cooling System Forced Water Cooling, Large Capacity Radiator
Air Intake System Dry Air Filter, Double Stage Filtration
Exhaust System Vertical Exhaust Pipe, Spark Arrestor, Muffler
Fuel Tank Capacity ≥ 500L
Fuel Consumption ≤ 205g/KW·h
Emission Standard China VI / Euro V (Optional)
Generator Set System
Generator Brand Domestic Top Tier Brand / Imported Brand (Optional)
Generator Type Brushless, Self-Excited, 3-Phase AC Synchronous Generator
Rated Power Output 500KW / 600KW / 700KW / 800KW (Optional)
Rated Voltage 400V / 230V (3-Phase 4-Wire)
Rated Current 900A ~ 1440A (Corresponding to Power)
Rated Frequency 50Hz
Power Factor 0.8 (Lagging)
Insulation Class H Class
Protection Level IP23
Voltage Regulation Accuracy ≤ ±0.5%
Frequency Regulation Accuracy ≤ ±0.5%
Maximum Transient Voltage Deviation ≤ ±15%
Maximum Transient Frequency Deviation ≤ ±10%
Excitation System Automatic Voltage Regulation (AVR)
Power Distribution & Control System
Control System Type Intelligent Digital Integrated Control System
Display Unit 7-inch Color Touch Screen, Real-time Data Display
Monitoring Parameters Voltage, Current, Frequency, Power, Oil Pressure, Water Temperature, Speed, Fuel Level, Battery Voltage
Protection Functions Overvoltage, Undervoltage, Overfrequency, Underfrequency, Overload, Short Circuit, Low Oil Pressure, High Water Temperature, Over Speed, Phase Loss, Reverse Power
Alarm Functions Sound & Light Alarm for Abnormal Parameters, Fault Code Display
Starting System 24V DC Electric Starting, Dual Battery Pack (≥ 200Ah)
Emergency Stop Multiple Emergency Stop Buttons (Cab, Compartment, Outside)
Power Distribution Panel Copper Busbar Design, Main Circuit Breaker, Output Terminals
Output Interface Multiple Industrial Sockets / Hard Wiring Terminals, Customizable
Parallel Operation Capability Support Multi-unit Parallel Operation (Optional)
Remote Monitoring Support 4G Remote Monitoring, GPS Positioning (Optional)
Compartment & Installation System
Compartment Structure All-Steel Welded Frame, Waterproof, Dustproof, Soundproof, Heat Insulation
Compartment Material Outer: Cold Rolled Steel Plate; Inner: Galvanized Steel Plate; Middle: Fireproof Sound-Absorbing Cotton
Sound Insulation Performance Noise Level ≤ 75dB(A) @ 1m, 70% Load
Ventilation System Forced Ventilation with Large Capacity Fans, Air Inlet/Outlet with Dust Filter
Rainproof Design Rainproof Louvers, Sealed Compartment Doors, Drainage System
Installation Structure High Strength Steel Chassis Frame, Vibration Damping Mounts for Generator Set
Compartment Doors Double Opening Rear Doors, Side Maintenance Doors, Lockable
Lighting System LED Interior Lighting, Work Lights, Emergency Lighting
Cable Management Cable Compartment, Cable Reel (Optional), Cable Fixing Brackets
Lifting Points Multiple Lifting Lugs for Whole Vehicle Lifting
Safety & Protection System
Fire Protection System Automatic Fire Detection & Suppression System, Dry Powder Fire Extinguishers
Grounding System Reliable Grounding Device, Grounding Cable, Grounding Rod
High Voltage Protection Insulation Monitoring, High Voltage Interlock Protection
Anti-Corrosion Protection Whole Vehicle Sandblasting, Anti-Rust Primer, Anti-Corrosion Paint
Lightning Protection Lightning Protection Device for Electrical System
Safety Marking Standard Safety Warning Signs, Operation Instructions, Reflective Markings
Cab Safety Airbag, Seat Belt, Crash Protection Structure
Optional Configuration
Power Output Interface Customized Industrial Sockets, Quick Connectors, Cable Reels
Parallel Operation System Multi-unit Parallel Cabinet, Synchronization Control System
Remote Monitoring System 4G DTU, GPS Module, Cloud Platform Monitoring
Low Noise Package Super Soundproof Compartment, Muffler, Noise Reduction to ≤ 68dB(A) @ 1m
Fuel Tank Upgrade Large Capacity Fuel Tank (≥ 1000L), Long Endurance
Cold Climate Package Engine Pre-Heating System, Compartment Heating System, Battery Insulation
Hot Climate Package Enhanced Cooling System, Compartment Ventilation, Sun Protection Coating
Automatic Transfer Switch (ATS) Dual Power Automatic Switching System
Insulation Test Device High Voltage Insulation Resistance Tester
Video Monitoring System Interior & Exterior Camera, DVR, Display
