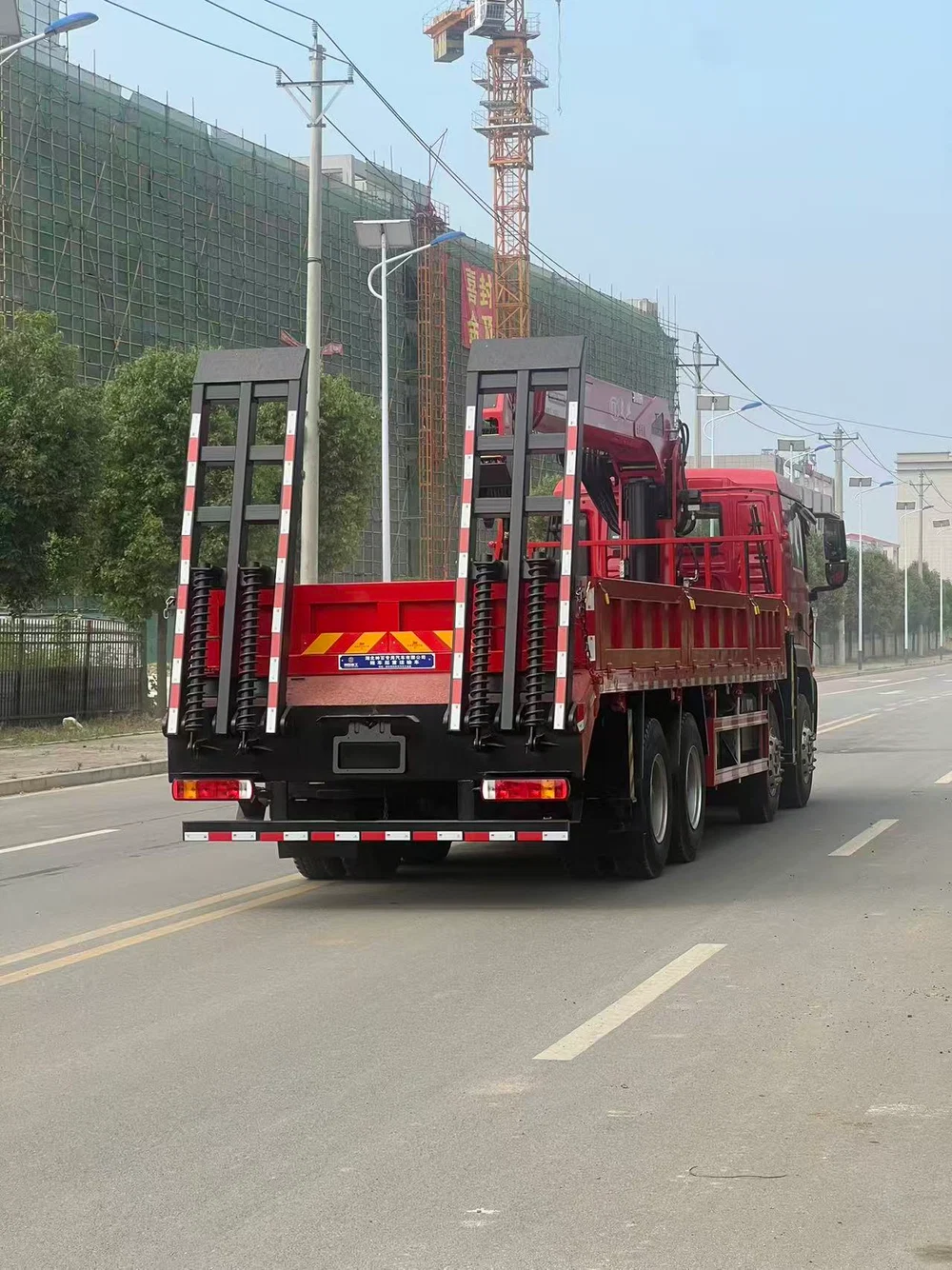

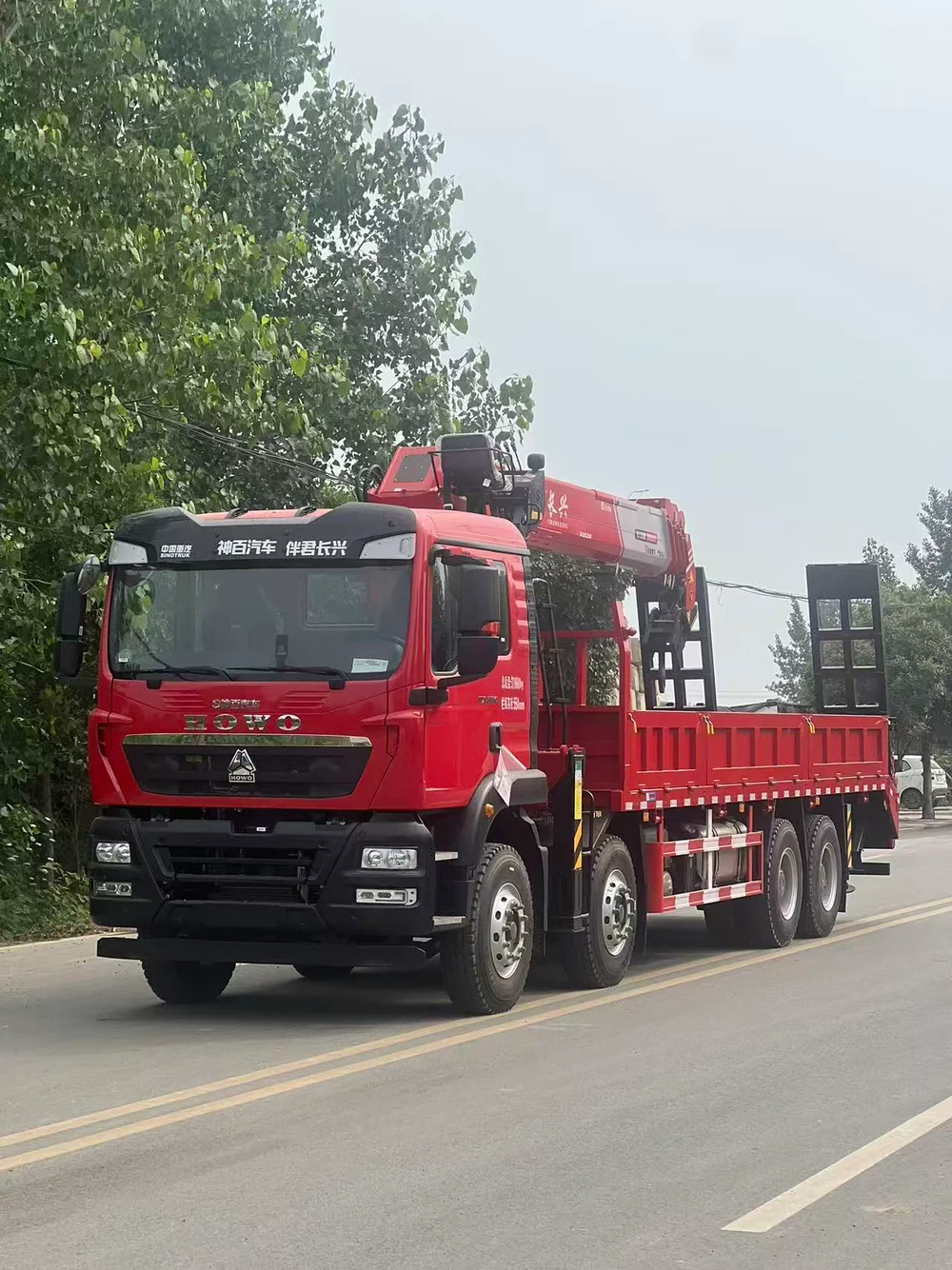

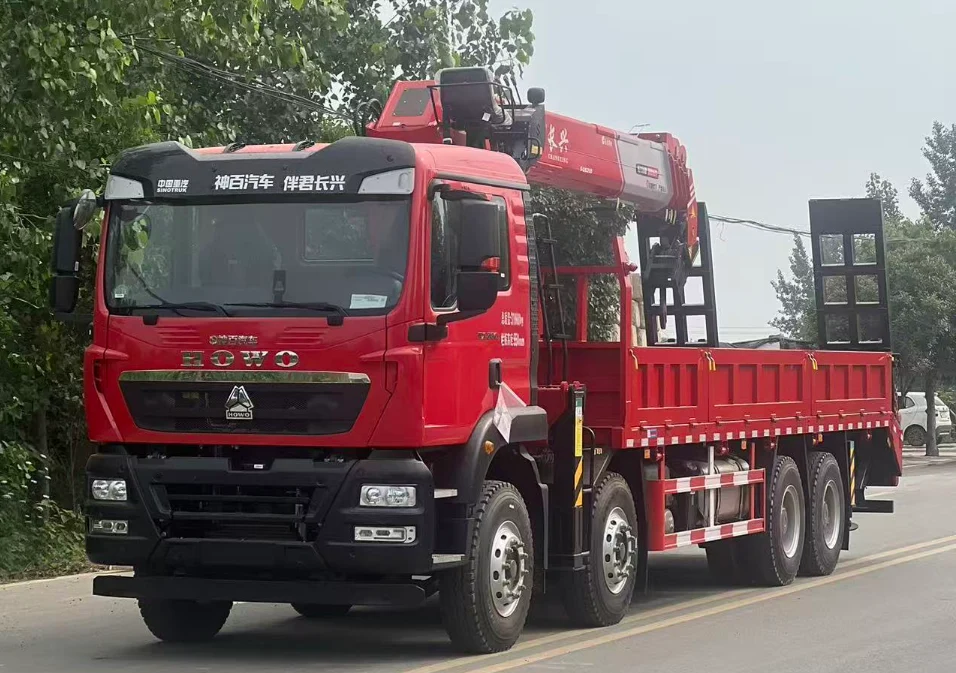

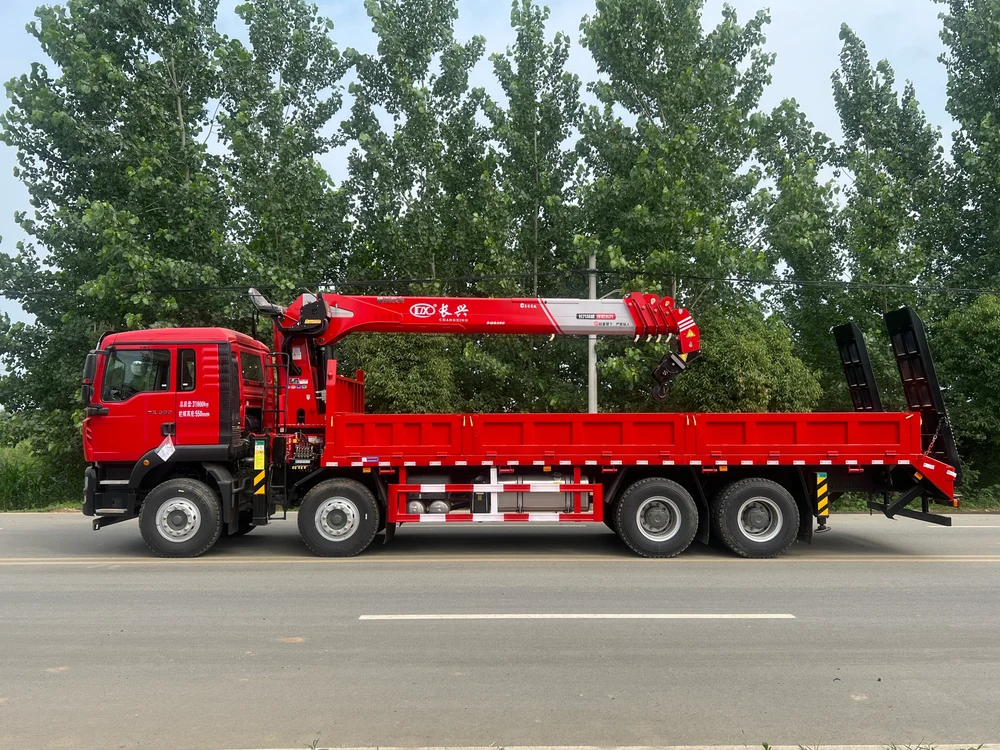

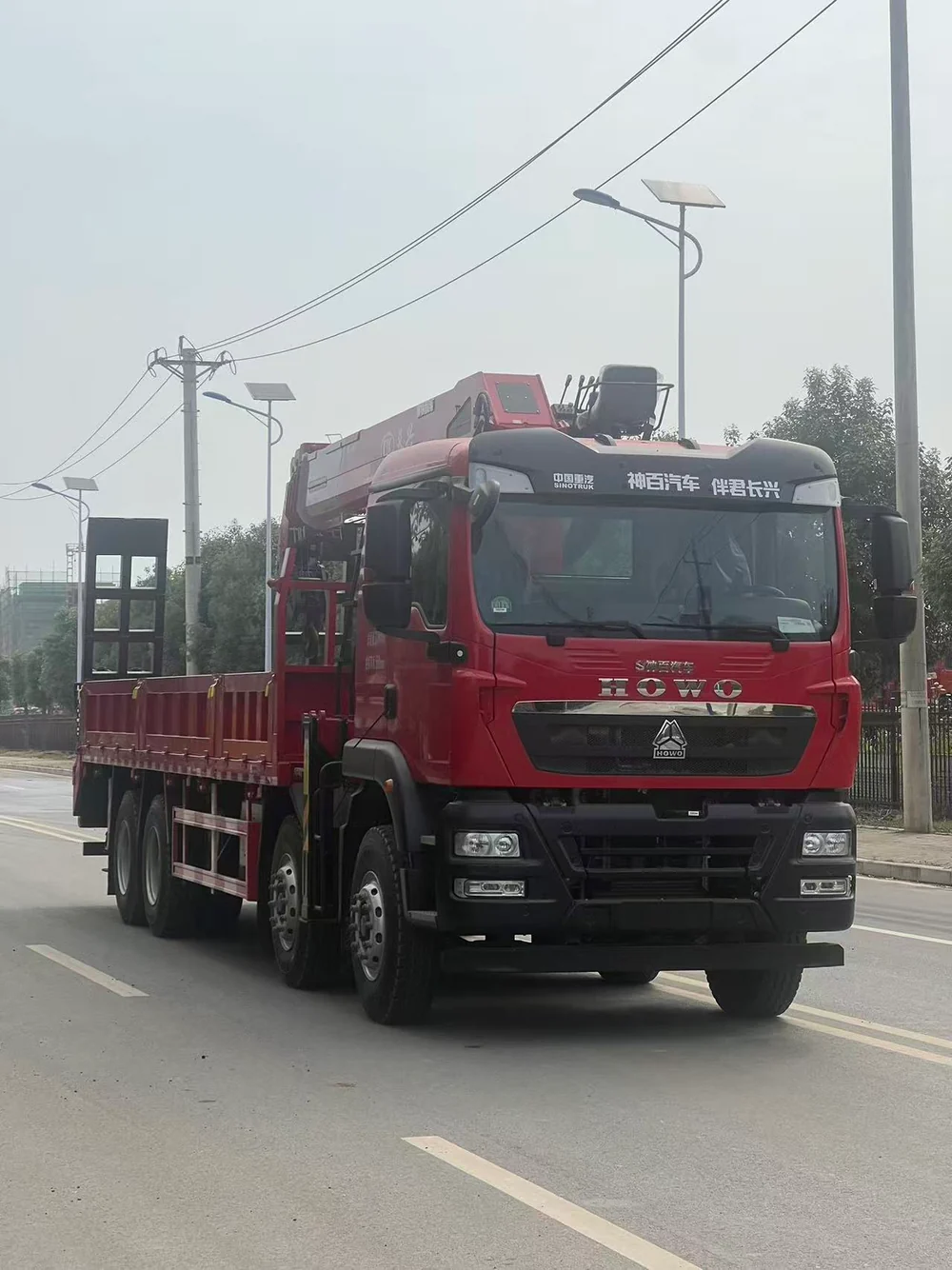

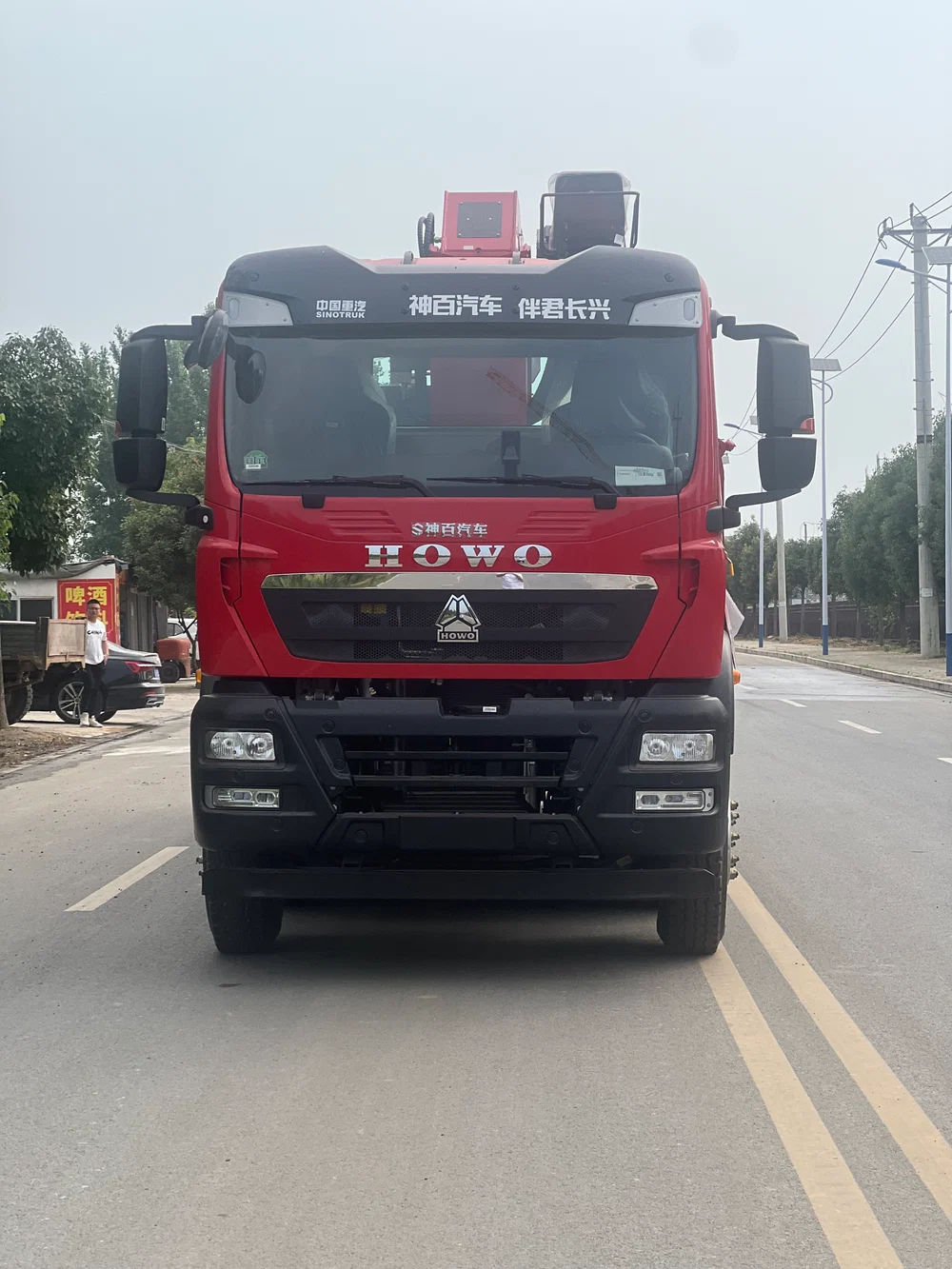

HOWO 8×4 Weichai 350HP - Changxing 14 Ton 5-Section truck mounted crane with Ladder

HOWO 8×4 Weichai 350HP - Changxing 14 Ton 5-Section truck mounted crane with Ladder
HOWO 8×4 Weichai 350HP - Changxing 14 Ton 5-Section truck mounted crane with Ladder
HOWO 8×4 Weichai 350HP - Changxing 14 Ton 5-Section truck mounted crane with Ladder
HOWO 8×4 Weichai 350HP - Changxing 14 Ton 5-Section truck mounted crane with Ladder
HOWO 8×4 Weichai 350HP - Changxing 14 Ton 5-Section truck mounted crane with Ladder
HOWO 8×4 Weichai 350HP - Changxing 14 Ton 5-Section truck mounted crane with Ladder
1 / 6
HOWO 8×4 Weichai 350HP - Changxing 14 Ton 5-Section truck mounted crane with Ladder
HOWO 8×4 Weichai 350HP - Changxing 14 Ton 5-Section truck mounted crane with Ladder
HOWO 8×4 Weichai 350HP - Changxing 14 Ton 5-Section truck mounted crane with Ladder
HOWO 8×4 Weichai 350HP - Changxing 14 Ton 5-Section truck mounted crane with Ladder
HOWO 8×4 Weichai 350HP - Changxing 14 Ton 5-Section truck mounted crane with Ladder
HOWO 8×4 Weichai 350HP - Changxing 14 Ton 5-Section truck mounted crane with Ladder
Category Item Specification
Chassis Configuration Chassis Model SINOTRUK HOWO TX 8×4 Four Front & Eight Rear, China VI b Emission Standard
Engine Weichai WP8.350E62 Inline 6-cylinder Diesel Engine, 350HP, 8.0L Displacement, Max Torque 1400N·m, China VI b Emission
Gearbox SINOTRUK HW13710L 10-speed Manual Gearbox with Synchronizer, Matched with Original Power Take-off
Cab TX-D Sleeper Cab, 4-point Suspension, Air Suspension Driver Seat, Original Automatic Air Conditioner, Multi-function Steering Wheel, Power Windows
Axle Setup 2×7.5T Front Axles, 2×16T Heavy-duty Engineering Rear Axles, Axle Ratio 4.875, with Wheel Reduction
Frame Structure 3-layer Straight Main Beam (8mm+5mm+5mm), Wheelbase Combination 1800+3050+1350mm, Total Wheelbase 6200mm
Tire & Fuel System 11.00R20 18PR All-steel Radial Tires, 300L Aluminum Alloy Fuel Tank, with Compliant Urea Tank
Cargo Box & Ladder 8500×2450×600mm Cold-riveted Engineering Cargo Box (3mm Side Plate / 5mm Bottom Plate), Original High-load Foldable Tail Ladder
Superstructure (Crane) Configuration Crane Model Changxing SQ1400Z5 14 Ton 5-section Telescopic Boom Truck Crane
Max Rated Lifting Capacity 14 Ton (Basic Boom, 3m Working Radius); Approx. 2.5 Ton (Full Extended Boom)
Boom Parameters 5-section Telescopic Boom, Full Extended Length 21.6m, Max Lifting Height 23.8m
Working Range Max Working Radius 22m, 360° Continuous Full Rotation, External-tooth Slewing Bearing
Outrigger System Double-section Composite H-type Front Outriggers (Max Span 8.2m), Matched with Double-section Rear Outriggers, with Hydraulic Lock
Hydraulic System Dual High-pressure Gear Pump, Temperature-controlled Hydraulic Radiator, 2nd Boom Single Extension Design, Supports Load-bearing Telescoping, System Pressure 21MPa
Control & Safety System Dual Control (Upper Operation Room + Wireless Remote Control), Standard Load Moment Limiter, Anti-winding Alarm, Anti-over-release Protection, Hydraulic Lock, Wire Rope Anti-grooving Device
Standard Accessories Main & Auxiliary Dual Hooks, Hydraulic Winch, Angle Sensor, Height Limiter
Whole Vehicle Core Parameters Overall Dimension Approx. 12000×2550×3950mm (Length×Width×Height)
Curb Weight Approx. 18.5 Ton
Rated Gross Weight 31 Ton (National Regulatory Limit for 8×4 Trucks)
Max Driving Speed 90km/h
Emission Level China VI b
Core Applications Large-scale Infrastructure Hoisting, Heavy Equipment Transportation & Installation, Bridge Engineering, Mining Equipment Handling, Large Seedling Transplanting, Municipal Emergency Repair
Reference Price (Jun 2026) Approx. 480,000-520,000 RMB (China VI Emission, with Original Ladder)
Core Advantages 1. Superior Power Performance Weichai 350HP 6-cylinder Large-displacement Engine + 10-speed SINOTRUK Gearbox, High Low-speed Torque, Excellent Overload Climbing & Complex Road Passability
2. Compliant Heavy Load Capacity 8×4 Four Front & Eight Rear Chassis, Dual 16T Engineering Rear Axles, 3-layer Straight Beam, 31 Ton Compliant Gross Weight, No Overload Under Heavy Load
3. Excellent Hoisting Performance Changxing 14 Ton 5-section Boom Crane, 21.6m Full Extended Boom, Wide Working Radius, Strong Load-bearing Telescoping Capacity, Meets Most Small & Medium Hoisting Needs
4. Multi-purpose & High Practicality Original Foldable Tail Ladder, Can Directly Transport Small Construction Machinery (Excavators/Loaders), Dual-purpose for Hoisting & Transportation, Greatly Improves Vehicle Utilization
5. Reliable Brand & High Resale Value HOWO Chassis & Changxing Crane are Domestic First-tier Brands, Nationwide After-sales Network, Easy Access to Spare Parts, Low Failure Rate, High Second-hand Resale Value
