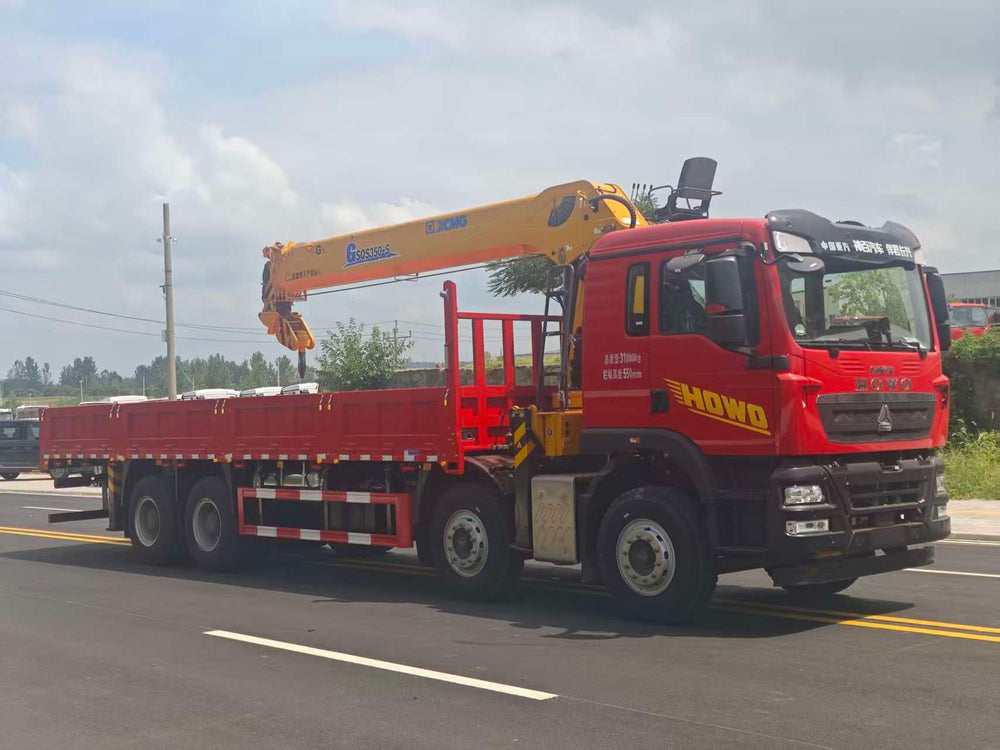

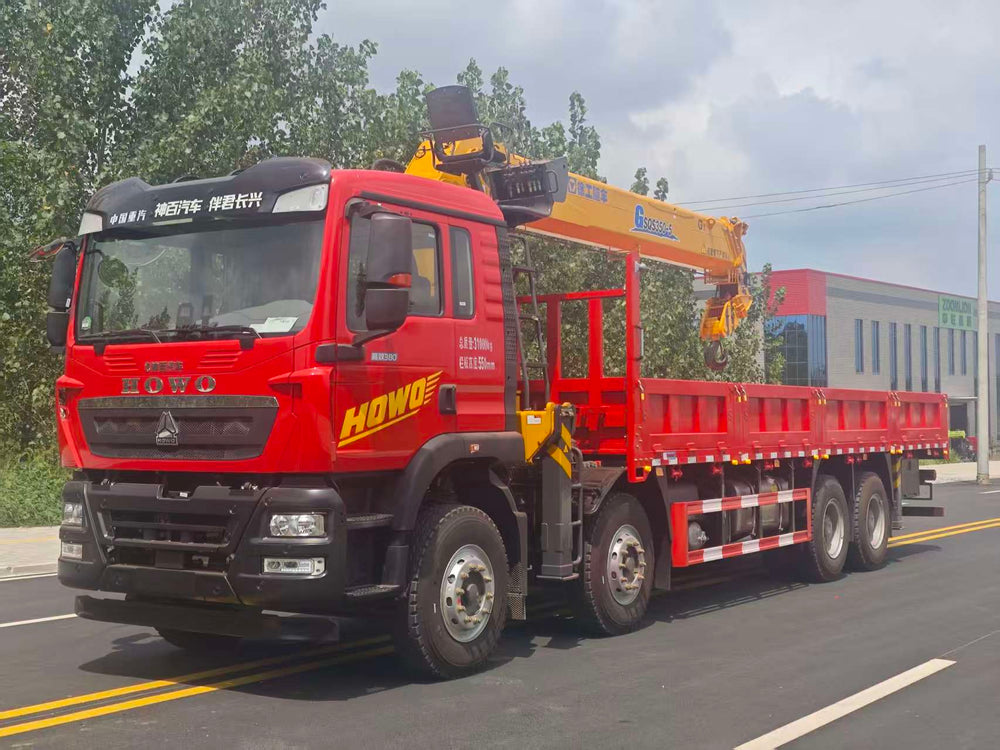

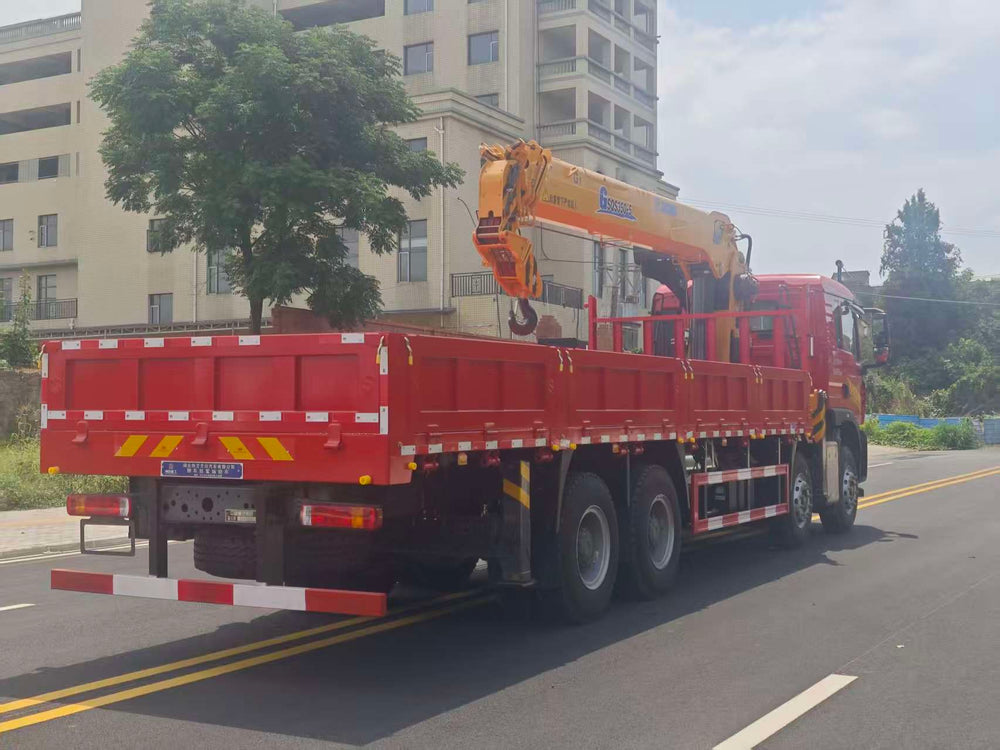

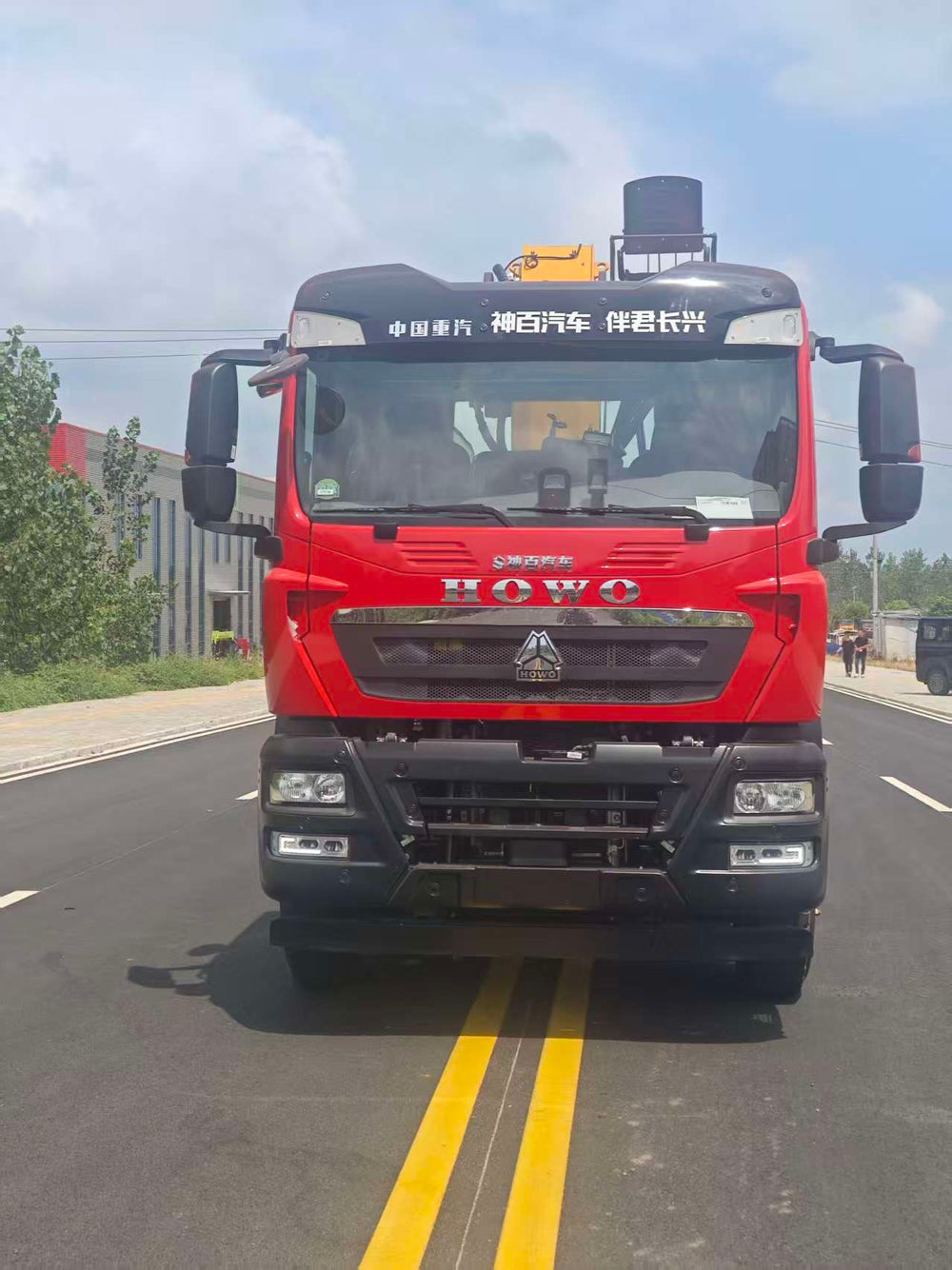

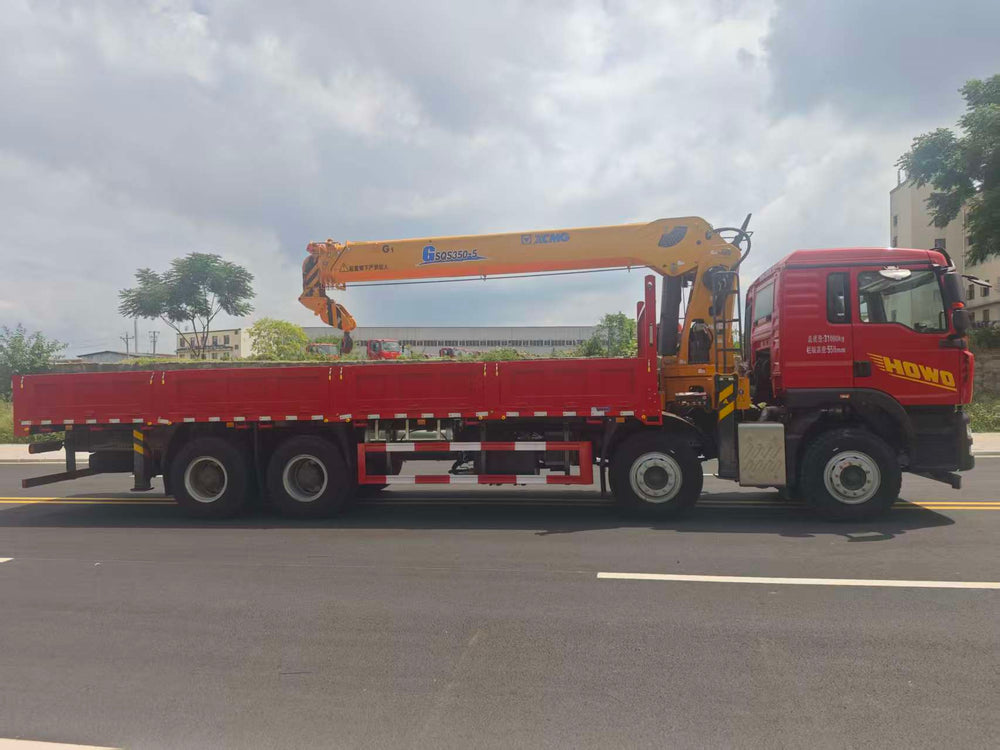

HOWO TX 8x4 Crane Truck with XCMG 14-Ton 5-Section Straight Boom Crane

HOWO TX 8x4 Crane Truck with XCMG 14-Ton 5-Section Straight Boom Crane
HOWO TX 8x4 Crane Truck with XCMG 14-Ton 5-Section Straight Boom Crane
HOWO TX 8x4 Crane Truck with XCMG 14-Ton 5-Section Straight Boom Crane
HOWO TX 8x4 Crane Truck with XCMG 14-Ton 5-Section Straight Boom Crane
HOWO TX 8x4 Crane Truck with XCMG 14-Ton 5-Section Straight Boom Crane
1 / 5
HOWO TX 8x4 Crane Truck with XCMG 14-Ton 5-Section Straight Boom Crane
HOWO TX 8x4 Crane Truck with XCMG 14-Ton 5-Section Straight Boom Crane
HOWO TX 8x4 Crane Truck with XCMG 14-Ton 5-Section Straight Boom Crane
HOWO TX 8x4 Crane Truck with XCMG 14-Ton 5-Section Straight Boom Crane
HOWO TX 8x4 Crane Truck with XCMG 14-Ton 5-Section Straight Boom Crane

Chassis Specifications

Brand HOWO TX New Generation — Front 4 Rear 8 (8x4)
Engine Weichai WP8T 380HP, 8.2L Displacement, Euro VI
Cab TX-K Extended Cab (1.5-row) — Woying Edition
Gearbox HW25712XSTL 12-Speed Transmission + HW70 Flange-type PTO
Front Axle VGD75 Self-adjusting Arm Front Axle (Drum Brake)
Rear Axle MAT16ZG / MCX16ZG Self-adjusting Arm Twin Rear Axles (Drum Brake) — 16-Ton Wheel-side Reduction Axle with Triple Differential Lock
Axle Ratio 4.803
Frame Triple-layer Frame (8+5+8 / 318mm)
Suspension Front & Rear Standard Multi-leaf Springs (11/11/12)
Tires 11.00R20 Mixed Tread / 18PR
Fuel Tank 400L
Safety AEBS + ABS (4S/4M) + ESC

Standard Equipment

  • Multi-function steering wheel
  • Electric heated rear-view mirrors
  • Driver airbag seat (aviation-grade air suspension) + co-pilot simplified seat + middle seat
  • 10.1-inch Full HD LCD center console (MP5)
  • High-position all-metal three-section bumper
  • Manual cab tilt
  • 4-point floating cab with international-standard collapsible safety technology
  • Optional under-cab start/stop switch
  • V-type thrust rod for optimal body stability

Key Advantages

  • Weichai 8T 380HP engine — powerful and fuel-efficient
  • HOWO 12-speed gearbox — engine, gearbox and axle integrated development for superior compatibility
  • Genuine German MAN-origin cab structure
  • Triple-layer frame (8+5+8/318) with engineering-grade leaf springs and 4-bolt saddle clamps — best-in-class torsional rigidity on complex terrain
  • SINOTRUK proprietary dual 16-ton wheel-side reduction rear axles with triple differential lock — handles all complex road conditions with ease
  • 4-point floating cab with collapsible safety technology for occupant protection in emergencies

Superstructure — XCMG 16TONS-5-Section Straight Boom Crane

  • Crane brand: Sany
  • Lifting capacity: 14 tons
  • Boom: 5-section straight telescopic boom, max length 19 meters
  • Upper cab operation
  • 2nd section single-extend boom
  • Double front outriggers (dual hydraulic cylinders)
  • OEM radiator plunger pump
  • Planetary slewing mechanism (plunger motor)
  • Winch (plunger motor)
