Vehicle Basic Technical Parameters
Parameter Value
Vehicle Overall Parameters
Overall Length (mm) 5495
Overall Width (mm) 1974
Overall Height (mm) 2450
Seating Capacity 7 Persons

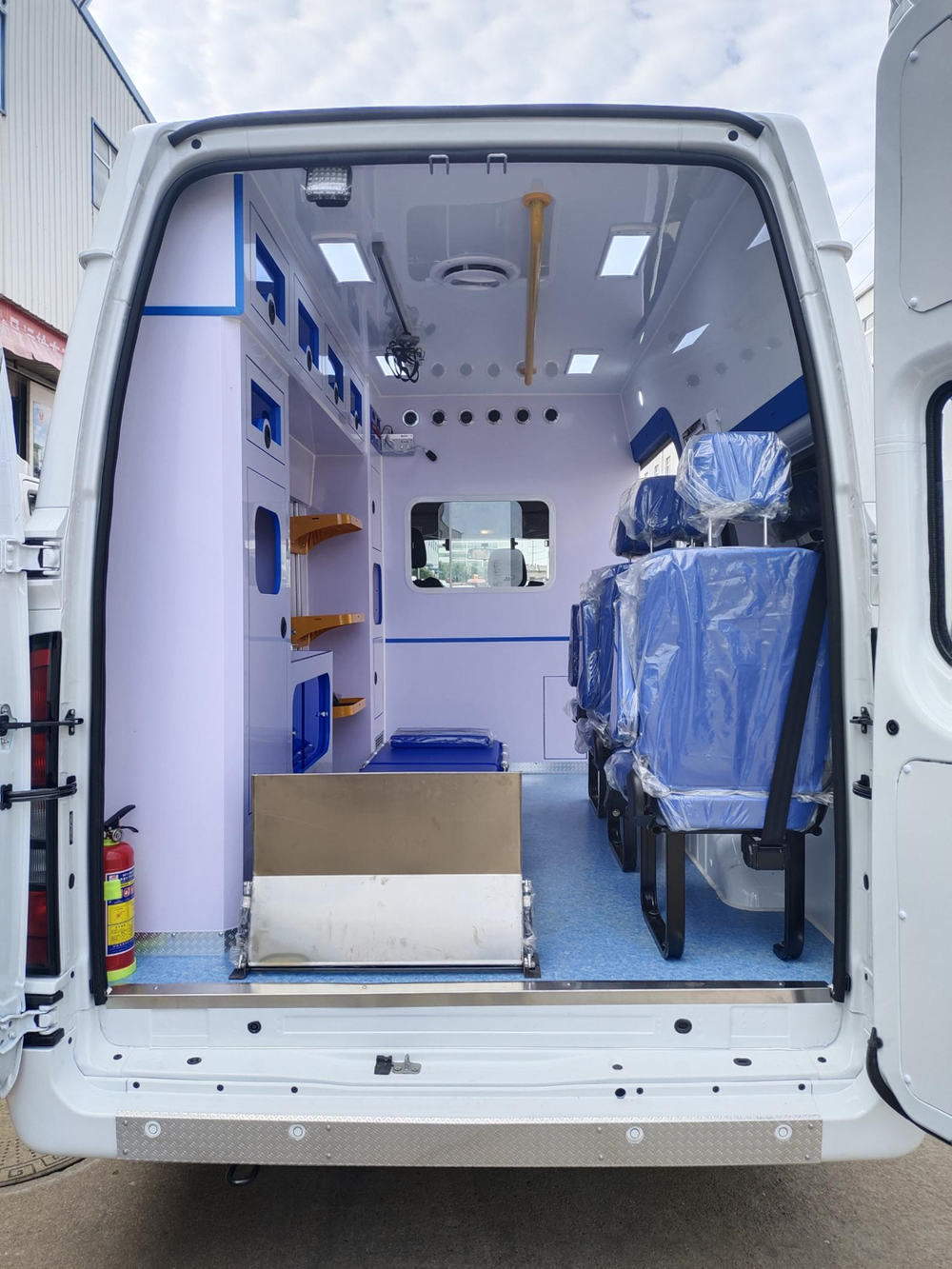

Medical Cabin Parameters
Cabin Length (mm) 2900
Cabin Width (mm) 1750
Cabin Height (mm) 1600
Engine
Engine Model JX4D20A6H National VI Engine
Power System 2.0T Turbocharged Diesel Engine
Power Output 107 kW
Horsepower 145 PS
Fuel Supply Method Direct Injection
Chassis Configuration
Transmission 6-speed Manual
Service Brake Front Disc/Rear Disc
Steering System Hydraulic Power Steering
Wheelbase (mm) 3360
Suspension System Front MacPherson Independent Suspension / Rear De Dion Suspension
Tires 215/75R16LT
Maximum Speed 160 km/h
Fuel Tank Capacity 80L
Air Conditioning System Independent Control
Parking Assist Reverse Parking Radar
Body Structure Load-bearing
Airbag Driver's Side Airbag
Braking System ABS Anti-lock Braking System, EBD/CBC Brake Force Distribution
Wheel Rim Material Steel Rim
Vehicle Key Remote Key
Headlight Halogen Lamp

Standard Equipment

Serial No. Function Category Configuration Name Unit Quantity Remarks
1 Stretcher and Equipment Automatic Loading Stretcher Set 1 Easy to operate
2 Folding Cloth Stretcher Set 1 Hung on the rear door
3 Stretcher Guide Rail and Guide Plate Set 1 For fixing the loading stretcher
4 Sliding Infusion Hanger Set 1 With 2 slidable hooks
5 Oxygen Supply Facilities Two 10L Oxygen Cylinders Set 1 Placed in the oxygen cabinet at the left rear of the medical cabin
6 Oxygen Pressure Reducing Valve Set 3 For controlling oxygen output pressure
7 Oxygen Terminal Piece 3 International standard
8 Humidification Bottle Piece 2 For adjusting oxygen humidity
9 Quick Connector Piece 1 Quick connector for ventilator
10 Exterior and Glass Film Exterior Color Stripes Set 1 Customizable according to customer requirements
11 Full dark solar film on left and right sides, semi-transparent frosted film on rear side Set 1 To protect patient privacy
12 Warning Lights Roof-mounted Three-hole Warning Light Set 1 Novel appearance, strong warning effect
13 4 Blue 2 White Strobe Lights installed on left and right sides of the vehicle body Piece 6 Novel appearance, strong warning effect

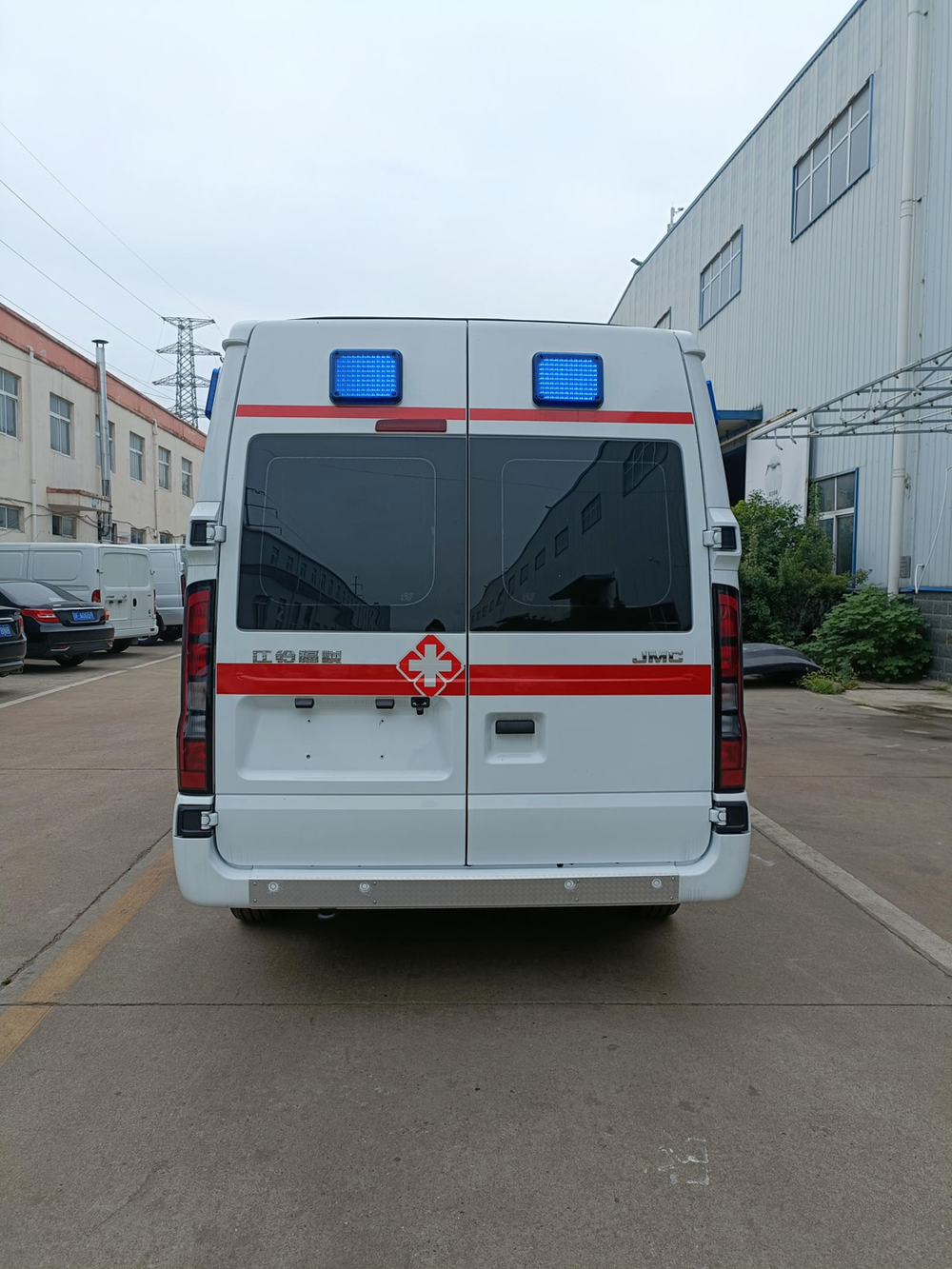

14 Blue Strobe Light installed above the rear door Piece 2 Novel appearance, strong warning effect
15 Alarm Control Handle installed in the cab Set 1 Easy to operate
16 Intelligent Power Management System 1000W Inverter Unit 1 Provides uninterruptible power supply
17 220V Socket Unit 4 Installed in the medical cabin
18 12V Socket Unit 1 Installed in the medical cabin
19 Rear Cabin Air Conditioning and Heating System Set 1 Central air conditioning
20 Control Panel Set 1 Integrated control panel for vehicle electrical circuit
21 Multi-function Ventilation Fan Set 1 Capable of air intake and exhaust
22 LED Lighting Lamp Set 1 Environmentally friendly and energy-saving
23 LED Rear Lighting Lamp Unit 2 Environmentally friendly and energy-saving
24 UV Disinfection Lamp Unit 1 Capable of sterilization
25 Door Control Lamp Unit 1 Environmentally friendly and energy-saving

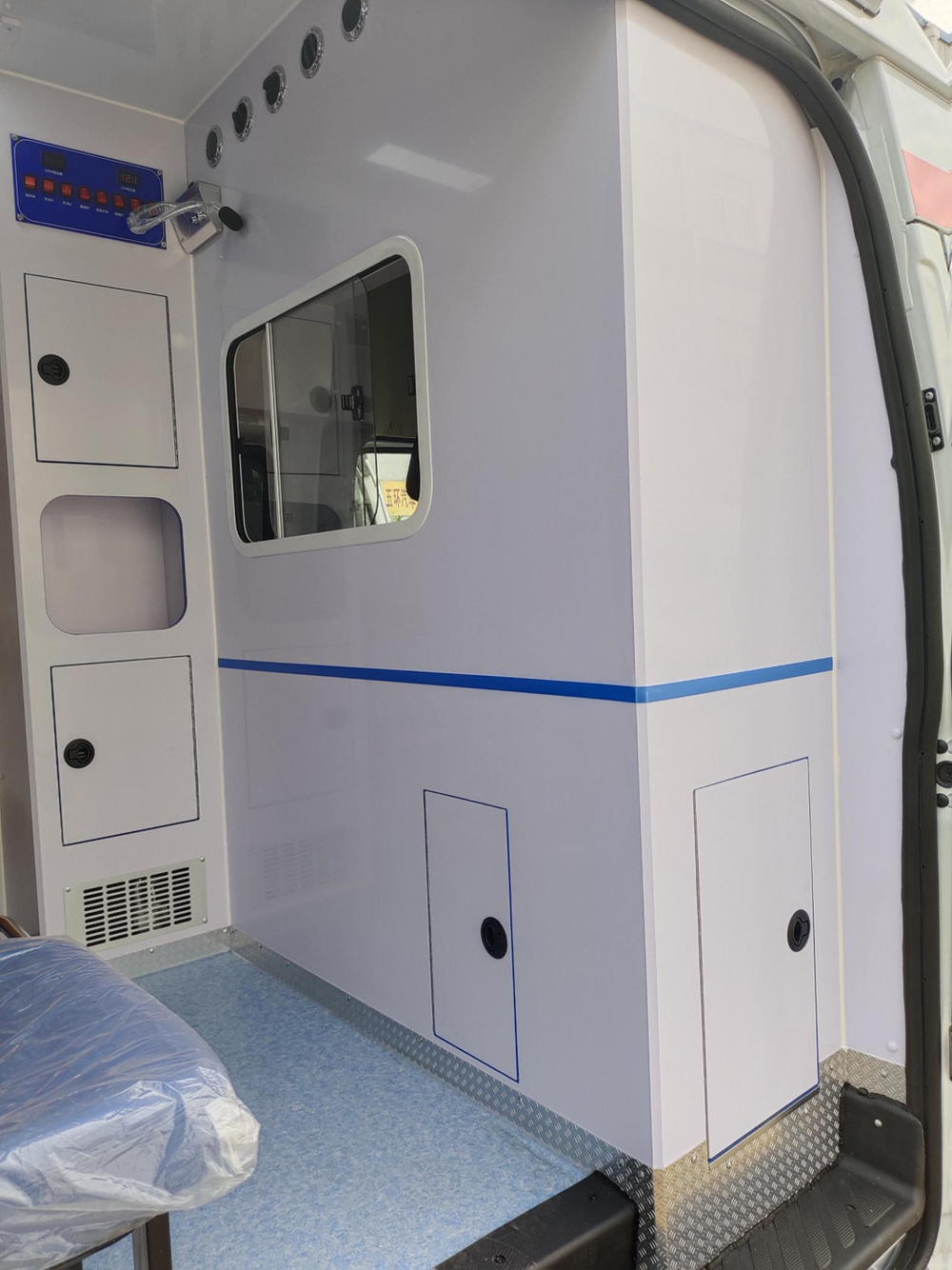

26 Medical Cabin Seat and Cabinet System Partition Assembly between Cab and Medical Cabin Set 1 With sliding window
27 Storage Cabinet at Left Front of Medical Cabin Set 1 For storing medical supplies
28 Medical Cabinet Level with Window in Medical Cabin Set 1 With medical equipment platform
29 Oxygen Cabinet at Left Rear of Medical Cabin Set 1 Can hold 2 pieces of 10L oxygen cylinders
30 Long Wall Cabinet at Upper Left of Medical Cabin Set 1 For storing medical drugs

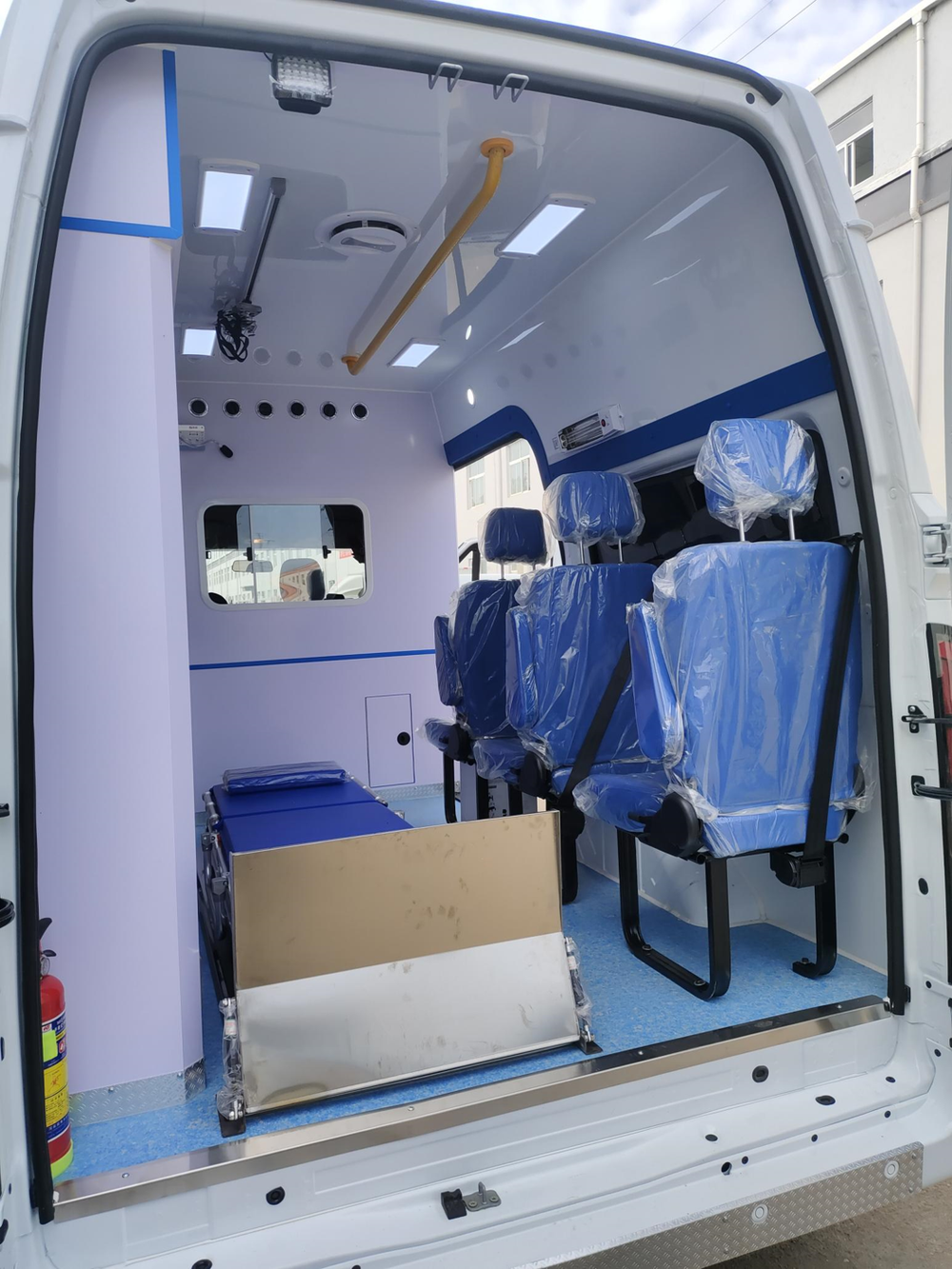

31 Independent Seat + Long Bench Seat on the Right Side Set 1 For medical staff and patient's family members to sit
32 Aluminum-plastic Panel Interior Ceiling Set 1 Beautiful appearance, easy to clean
33 Three-layer Adjustable Equipment Rack Set 1 For placing and fixing medical equipment
34 Medical Special Floor Leather Set 1 Waterproof, anti-corrosion, wear-resistant, antibacterial
35 Peripheral Wrapping of Medical Cabin Set 1 Beautiful, anti-collision, easy to clean
36 Auxiliary Equipment Roof-mounted Handrail Unit 1 Yellow painted
37 Loading Handrail Unit 1 Yellow painted
38 Medical Waste Bin Unit 1 Pedal type
39 Medical Cabin Fire Extinguisher Unit 1 2KG
