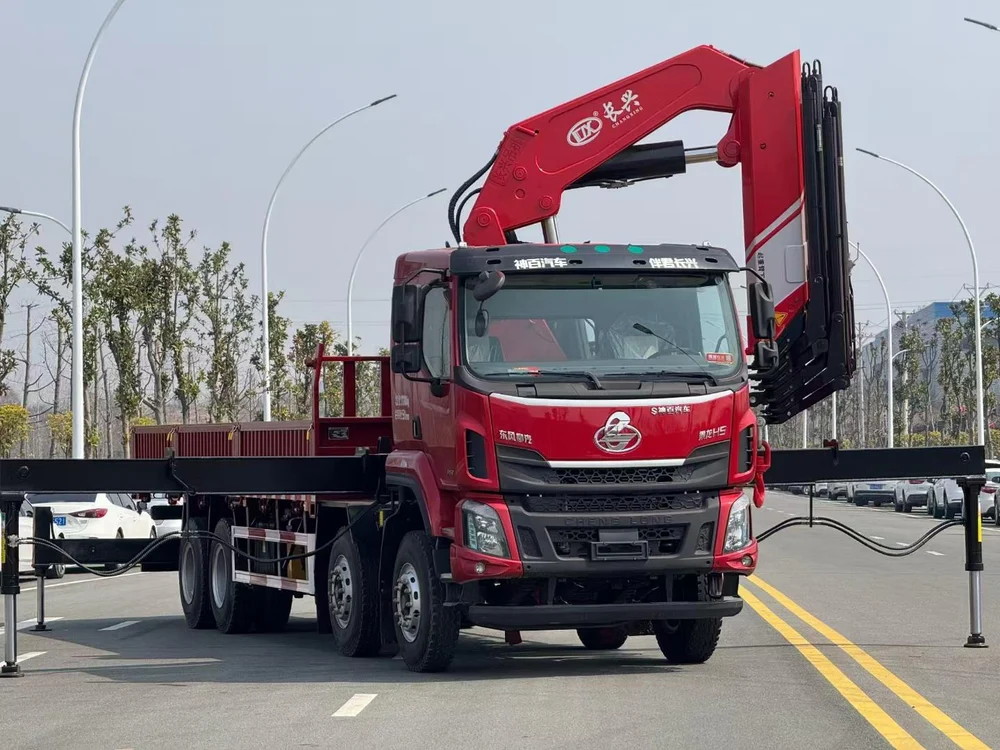

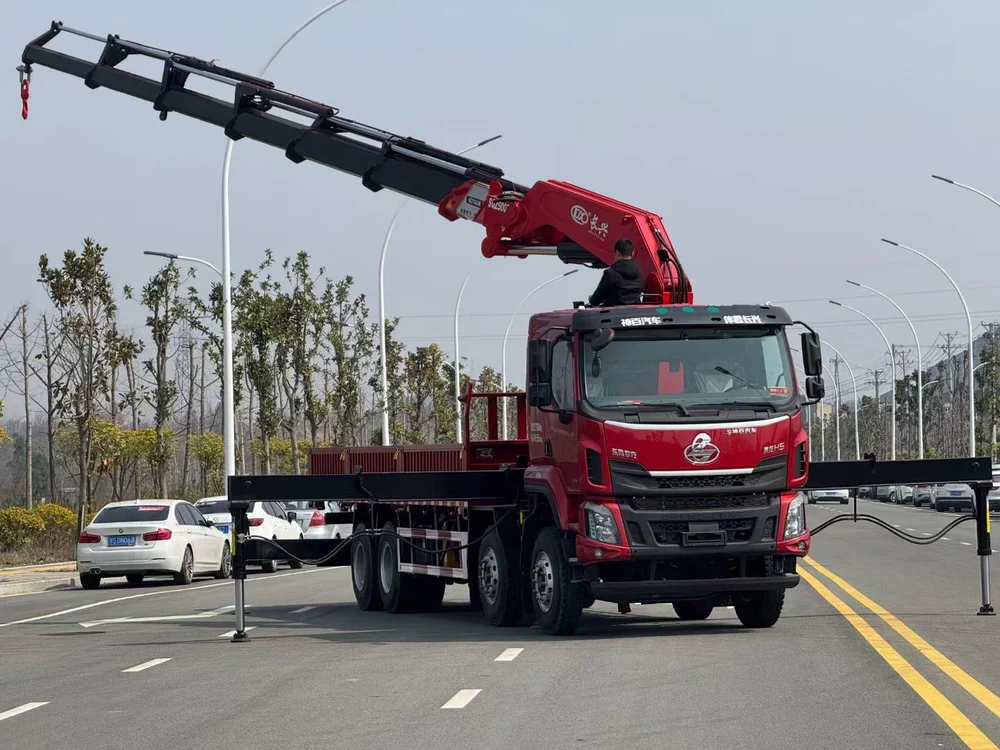

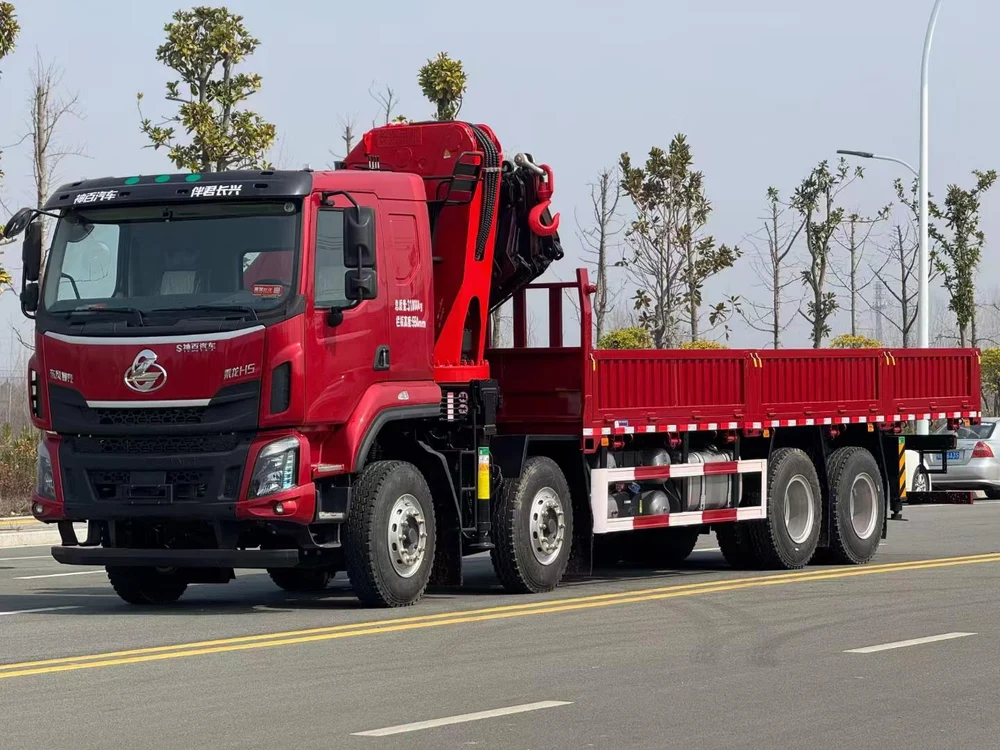

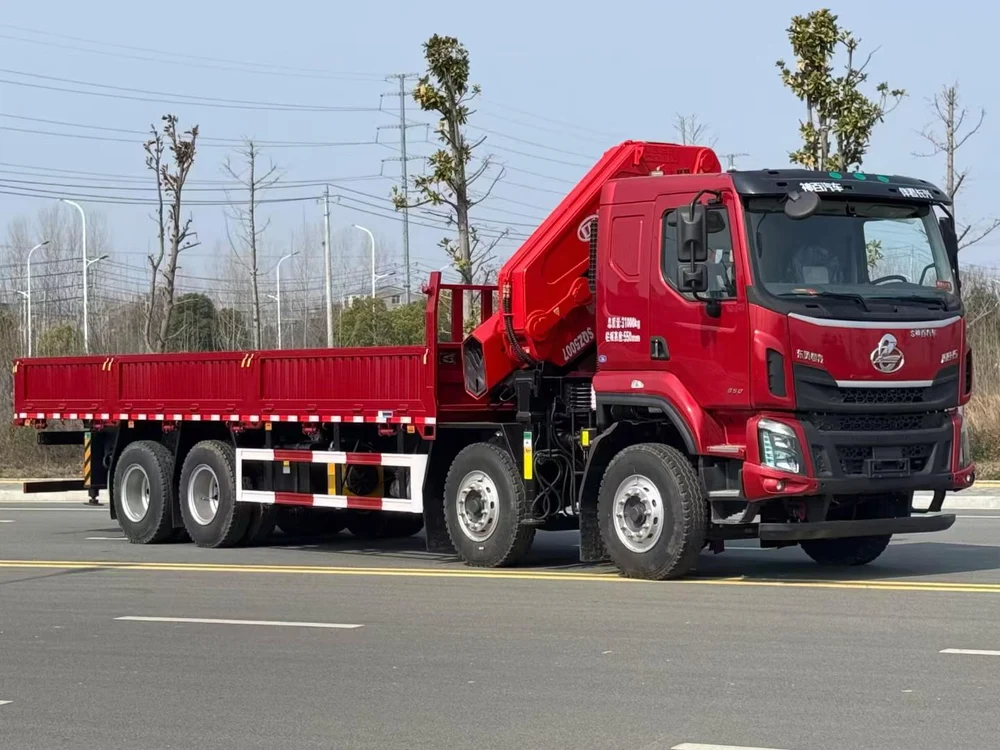

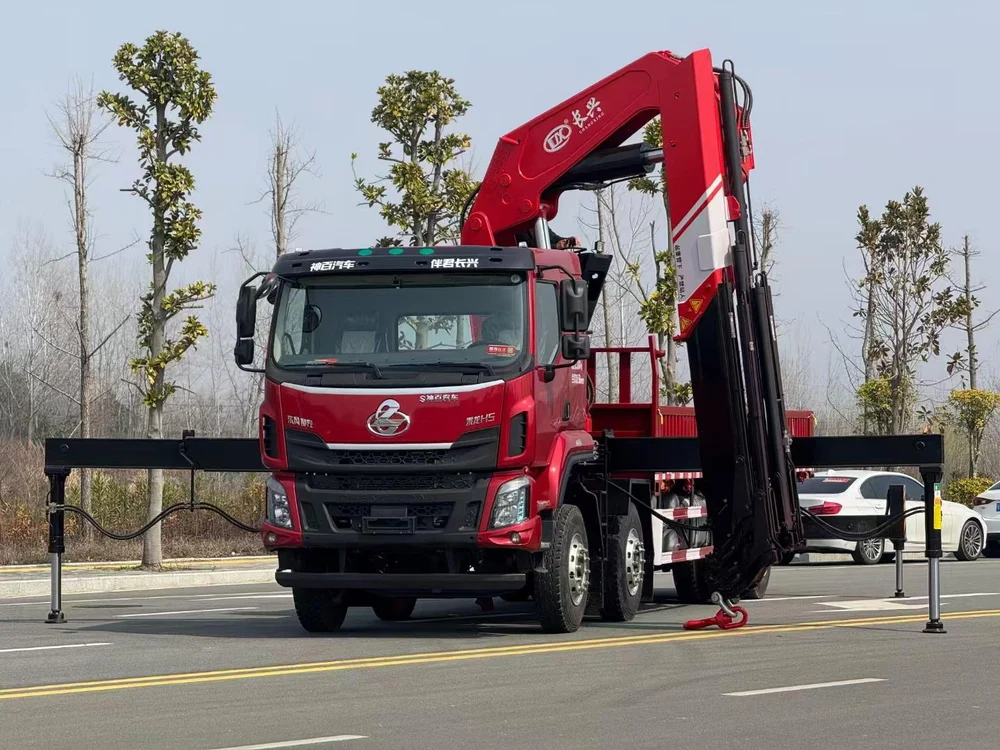

Liuzhou Motor changxing 8×4 25-ton 7-section folding boom truck crane Liuzhou Motor changxing 8×4 25-ton 7-section folding boom truck crane
Request a Quote Now
Liuzhou Motor changxing 8×4 25-ton 7-section folding boom truck crane
Overall vehicle size and performance |
|
Chassis Brand |
Liuzhou Motor |
Driving type |
8x4 left-hand drive |
Total vehicle weight |
31 tons |
curb weight |
20.2 tons |
Rated effective load |
10.6 tons |
Overall vehicle dimensions |
12000×2500×3990 mm |
Cargo box dimensions |
7600×2500×550 mm |
Chassis parameters |
|
engine |
Weichai 350HP Engine |
horsepower |
350 horsepower |
Speed gearbox |
HW25712XSTL |
wheelbase |
2100+4300+1350mm |
axis |
7.5 ton/16 ton |
Emission standards |
Euro 6 |
Tire type and size |
11.00R20 18PR |
fuel tank |
400 liters |
Top speed |
90 km/h |
other |
Wide-body single/row-up seats, four-point suspension, factory air conditioning, central locking, power windows, ABS anti-lock braking system, air brakes, dashcam. |
Crane parameters |
|
Crane Model |
Changxing CXSQZ520 25-ton folding boom crane |
Maximum lifting capacity |
25 tons |
Maximum working radius |
14.5 meters |
Maximum lifting height |
18 meters |
boom type |
7-section folding arm |
Rotation angle |
360° rotation |
Crane weight |
5.6 tons |
Hydraulic oil tank |
150 liters |
Hydraulic system |
Dual pump confluence, imported multi-way valve + high-pressure oil pump, equipped with radiator |
Outboard support configuration |
Front outrigger: Two-section composite square leg (large span); Rear outrigger: Single cavity |
Operation Function |
Aerial work seat + aerial remote throttle, one-button start/stop, automatic hook retraction, wireless remote control optional. |
Optional configuration |
|
Crane Additional Configuration |
Wireless remote control, radiator, weighing instrument, brick clamp, wood grabber, work basket |
Application scenarios |
Municipal emergency repairs, seedling transplantation, building material hoisting, power/street lighting projects, equipment handling |
