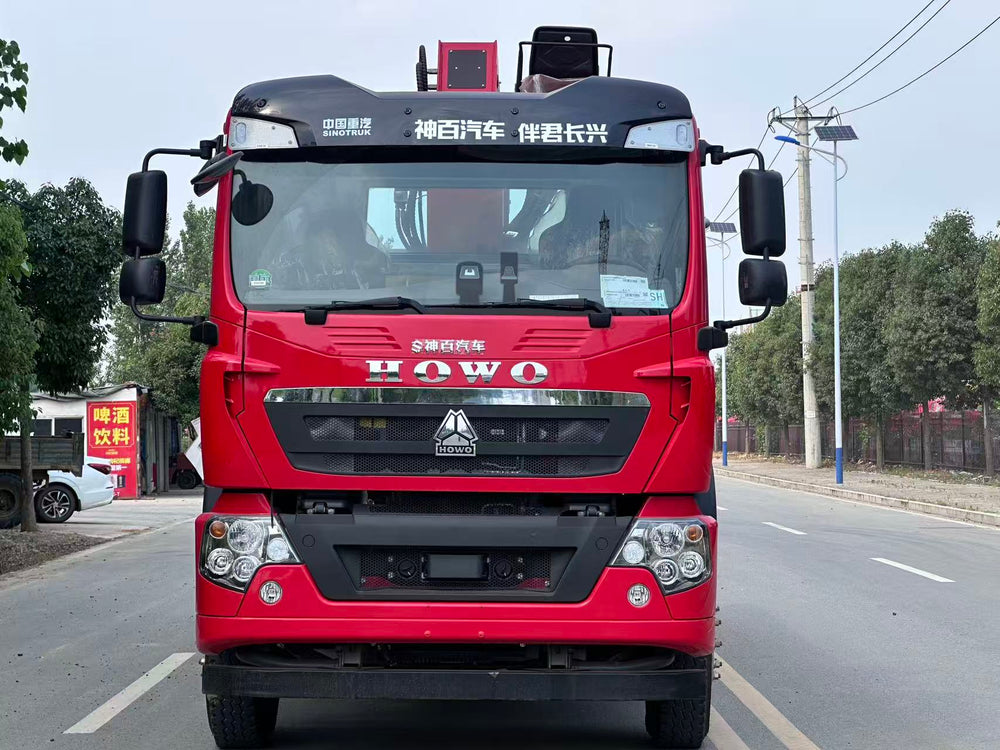

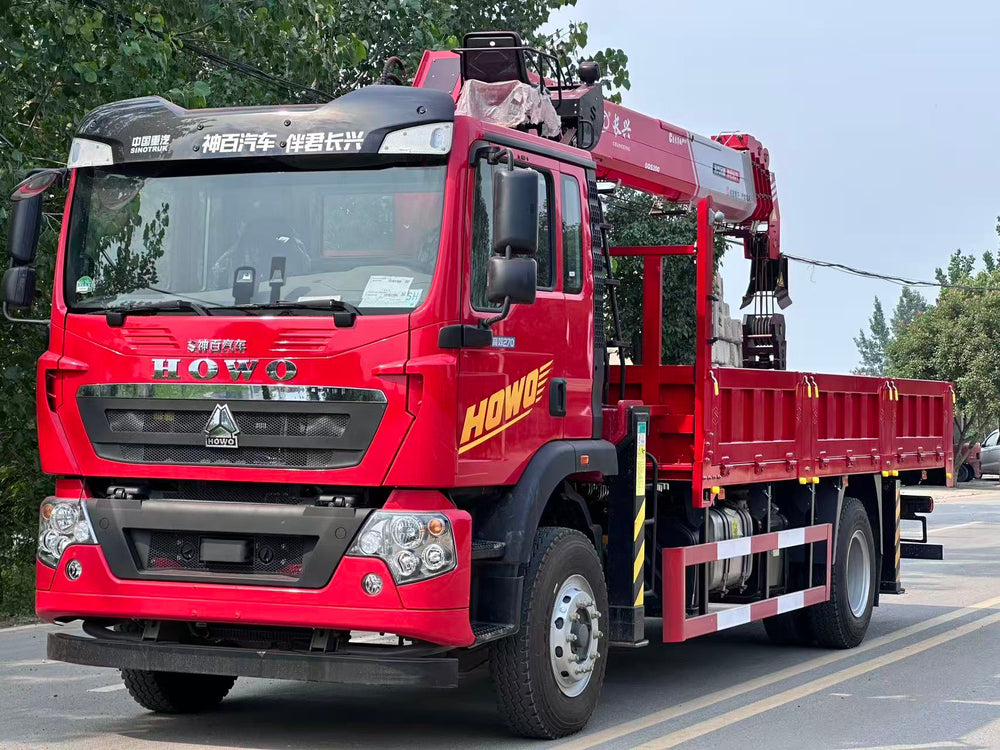

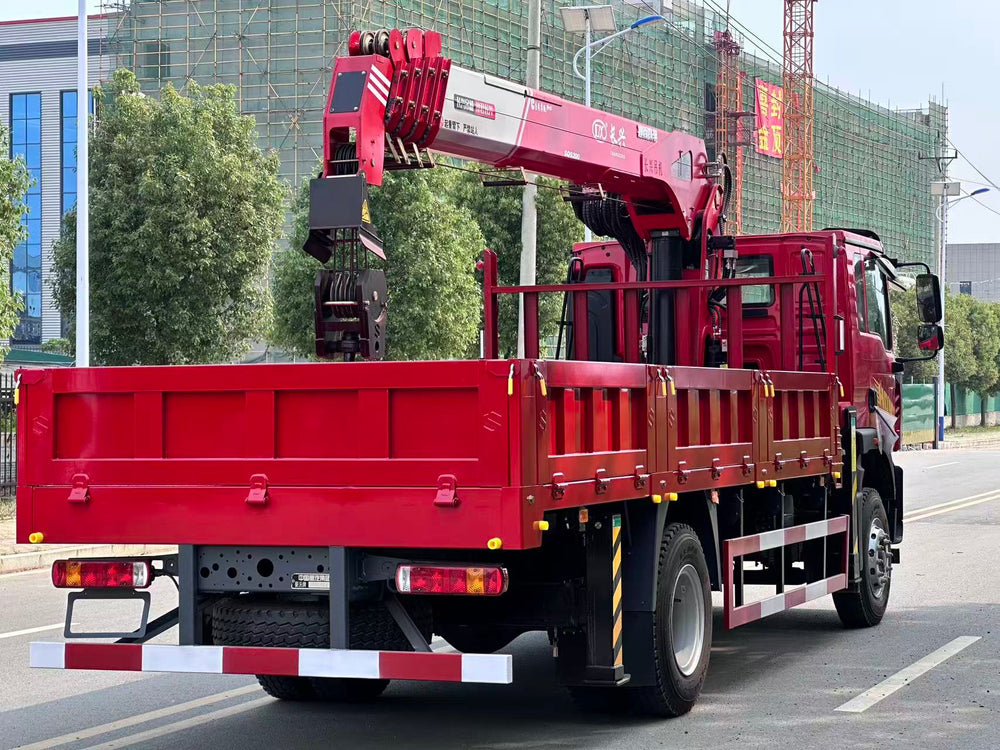

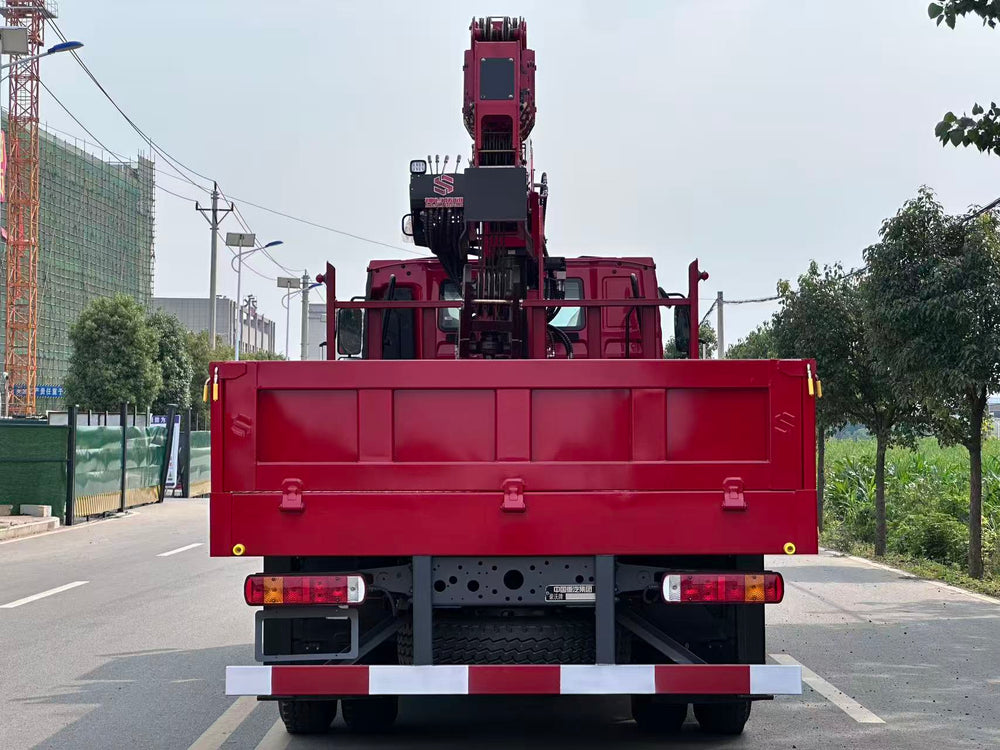

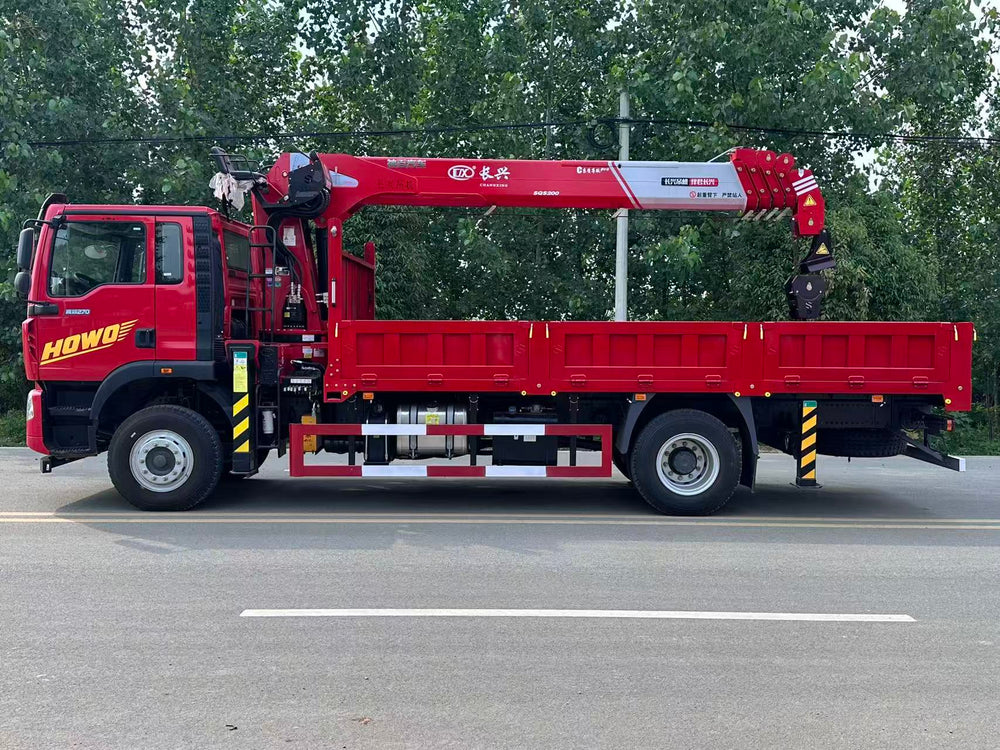

New HOWO TX Single-Bridge Crane Truck — Weichai 270HP · Changxing 8T 5-Section Boom

Announcement Information

  • Vehicle Announcement No.: ABC5186JSQZZ6
  • Chassis Announcement No.: ZZ1187K501GF1

Chassis Core Specifications

  • Engine: Weichai WP7H270E62, 270HP, 6.8L displacement
  • Gearbox + PTO: HW95508STC2 gearbox + HW45ZC flange-type PTO
  • Wheelbase: 5000mm / 4500mm (optional)
  • Axle Ratio: 5.29
  • Front Axle: HOWO 7.5T front axle
  • Rear Axle: 13T engineering-grade rear axle
  • Frame: Three-layer frame (8+4+4 / 300mm)
  • Leaf Springs: Front 11/9-leaf, Rear 8-leaf
  • Tires: 10.00R20 (mixed tread / 18PR)

Cab Configuration

  • TX-D cab (extended sleeper) — Woying Edition
  • Multi-function steering wheel
  • Electric heated rear-view mirrors
  • Driver airbag + co-driver basic seat
  • Middle seat in cab
  • 10.1-inch full HD LCD infotainment screen (MP5)
  • Center bumper (full metal)
  • Sun visor
  • AEBS + ABS (4S/4M) + ESC active safety systems
  • 200L fuel tank
  • Manual lift
  • Optional: under-cab start/stop switch

Upper Structure — Changxing Crane

  • Brand: Changxing
  • Rated Lifting Capacity: 8 tonnes
  • Boom Sections: 5-section (2nd section single-extension)
  • Max Boom Length: 18.5 m
  • Max Lifting Height: 19.8 m
  • Rotation: Double rotation
  • Outriggers: Double-section outriggers
  • Winch: Cycloid motor winch
  • Main Beam: Full-through beam

Cargo Box

  • 5.9 m side-three bottom-five cold-riveted engineering cargo box
