Sinotruk HOWO TX7 350HP 8×4 Flammable Liquid Tanker

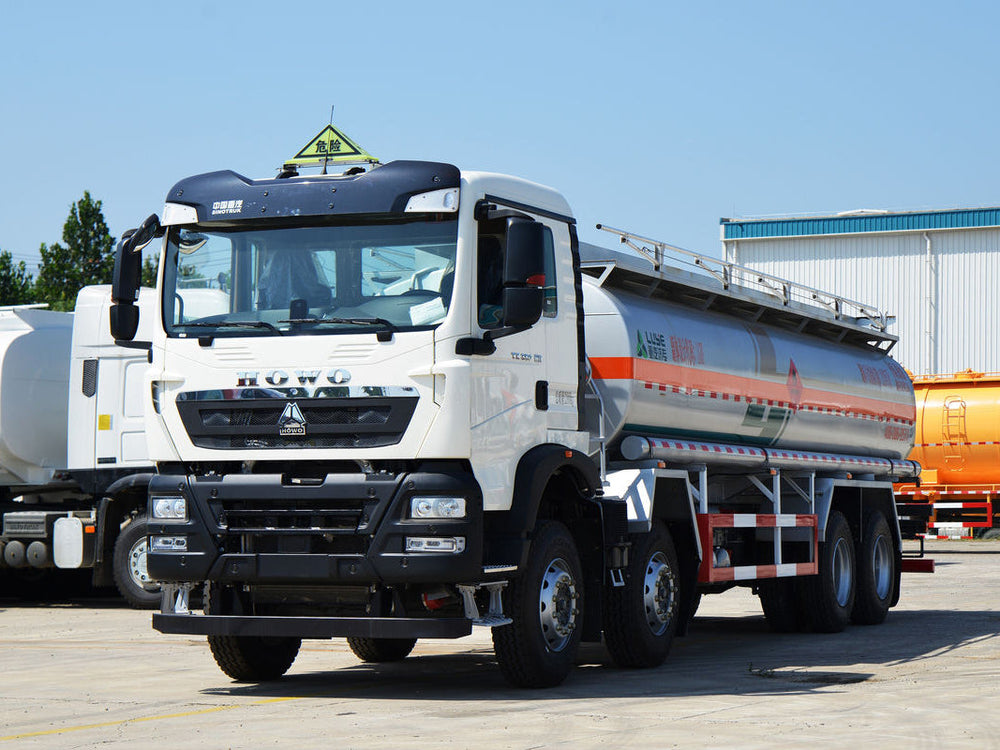

SINOTRUK HOWO TX7 350HP 8x4 Fuel Tanker Truck - Front Quarter View

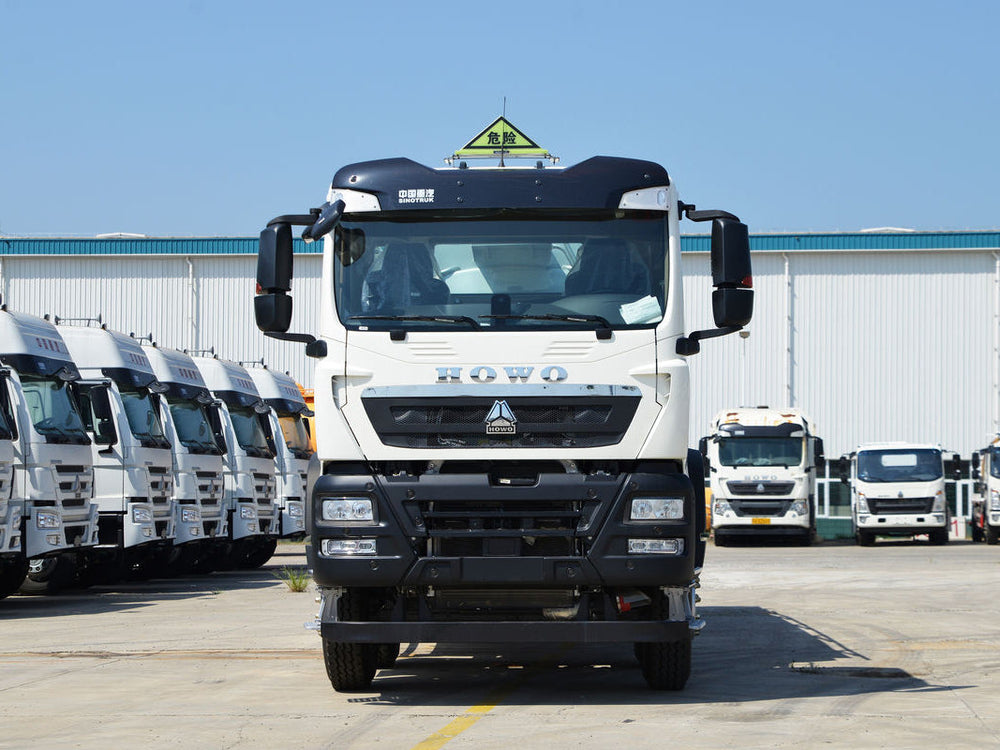

SINOTRUK HOWO TX7 350HP 8x4 Fuel Tanker Truck - Rear Side View

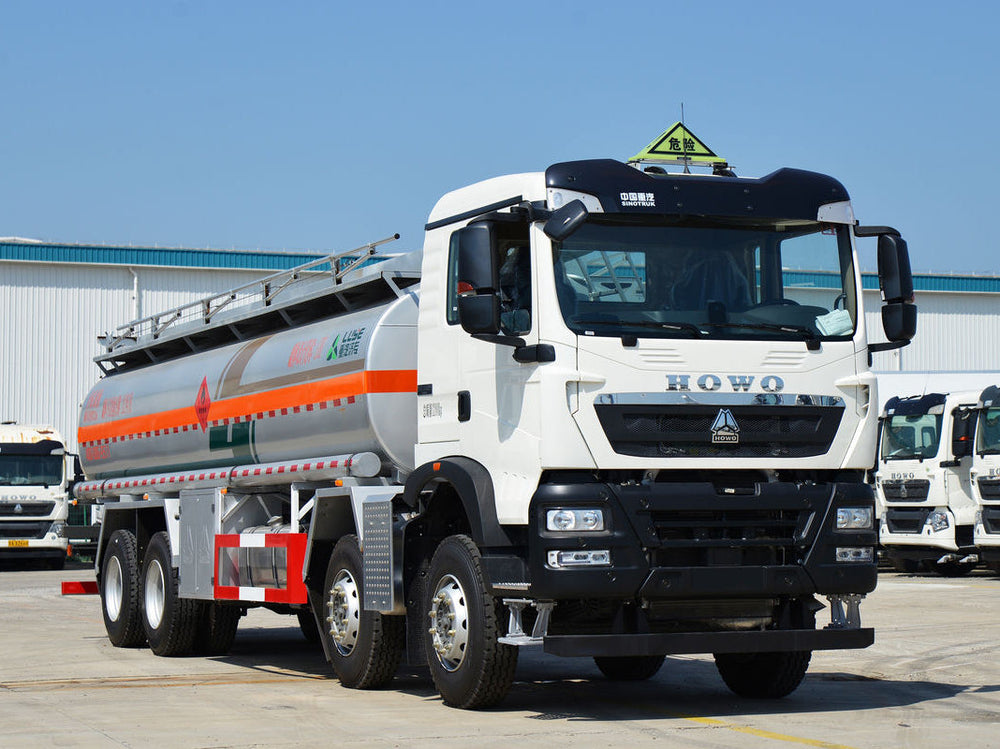

SINOTRUK HOWO TX7 350HP 8x4 Fuel Tanker Truck - Rear View

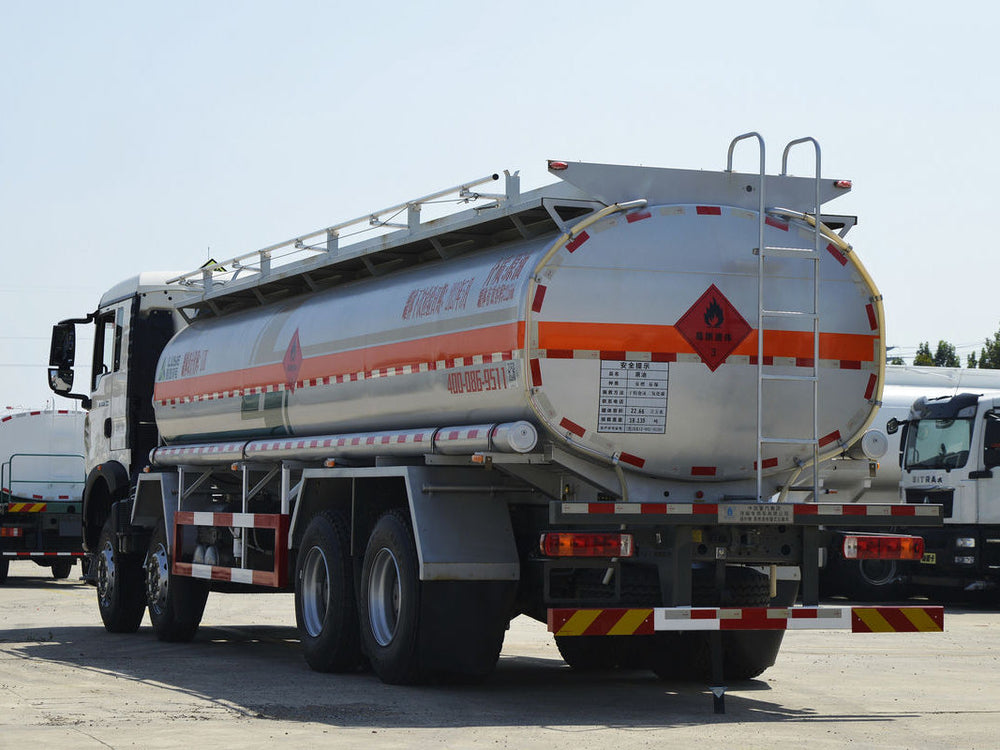

SINOTRUK HOWO TX7 350HP 8x4 Fuel Tanker Truck - Front View

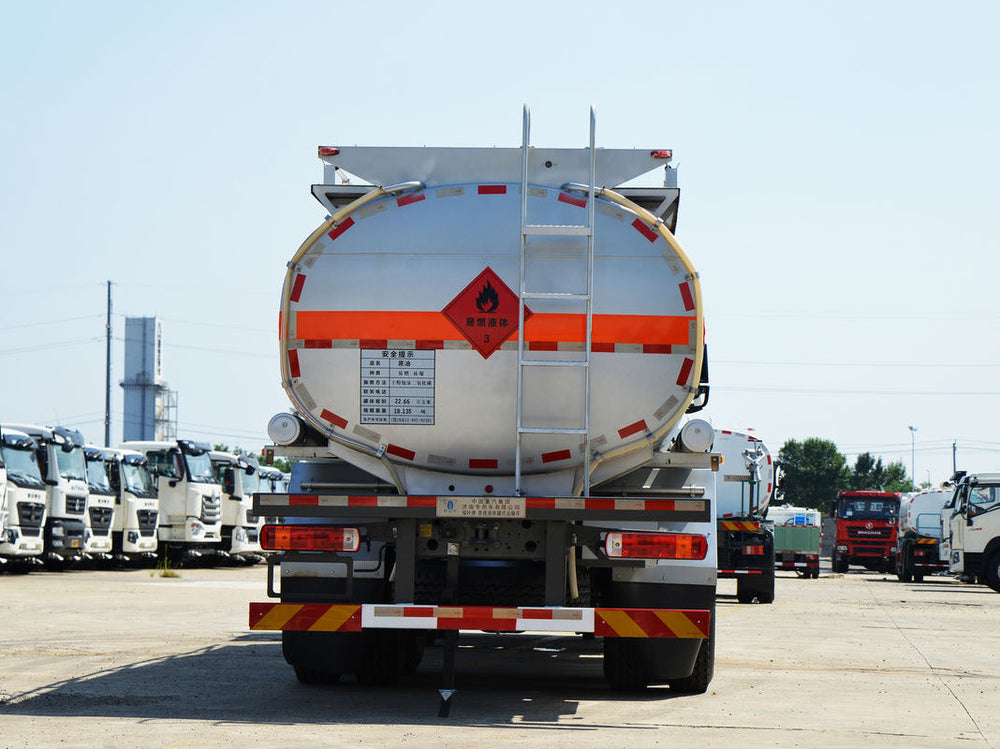

SINOTRUK HOWO TX7 350HP 8x4 Fuel Tanker Truck - Front Side View
1 / 5
SINOTRUK HOWO TX7 350HP 8x4 Fuel Tanker Truck - Front Quarter View
SINOTRUK HOWO TX7 350HP 8x4 Fuel Tanker Truck - Rear Side View
SINOTRUK HOWO TX7 350HP 8x4 Fuel Tanker Truck - Rear View
SINOTRUK HOWO TX7 350HP 8x4 Fuel Tanker Truck - Front View
SINOTRUK HOWO TX7 350HP 8x4 Fuel Tanker Truck - Front Side View
Category Item Specification Remarks
Chassis Configuration Chassis Brand & Model Sinotruk HOWO TX7 8×4 Heavy-duty Dangerous Goods Special Chassis 4 axles, 8×4 drive, for hazardous material transportation
Engine Model Sinotruk MC11.35-50 Diesel Engine 350HP, Max Torque 1800N·m, Euro V/Euro VI emission standard optional
Transmission HW19710 10-Speed Manual Transmission Full synchromesh, optimized for heavy load operation
Drive Type 8×4 (2 front steering axles, 2 rear driving axles) Superior carrying capacity and driving stability
Wheelbase 1800+4500+1350mm Customizable upon request
Tire Specification 12R22.5 Tubeless Tires, 12 Units Heavy-duty radial tires for long-distance transportation
Cabin HOWO TX7 Flat Roof / High Roof Double Berth Dangerous Goods Special Cabin Equipped with central door lock, power windows, heating & cooling air conditioning
Brake System Dual-circuit Pneumatic Brake System Standard with ABS, ASR, Exhaust Brake
Steering System Hydraulic Power Steering Lightweight and precise control
Tank Body Configuration Tank Material 5052 Aluminum Alloy / High Quality Carbon Steel Corrosion-resistant, optional material based on transported medium
Tank Volume 22.55m³ Customizable volume, multi-compartment design available for different media
Applicable Medium Class 3 Flammable Liquids (Gasoline, Diesel, Crude Oil, etc.) Compliant with UN dangerous goods transportation standards
Tank Structure Oval Cross-section, Reinforced Anti-wave Baffles Anti-impact, effectively prevent liquid sloshing during driving
Manhole & Inlet Standard European-style Manhole Cover with Breathing Valve Anti-overflow, automatic pressure relief function
Loading & Unloading System Submarine Emergency Shut-off Valve, Pneumatic Oil Discharge Valve, Oil Delivery Hose Fast loading/unloading, emergency cut-off function for safety
Tank Accessories Top Safety Guardrail, Climbing Ladder, Operation Platform, Mechanical Liquid Level Gauge Convenient for daily operation and maintenance
Safety & Explosion-proof System Hazard Identification Full Set of Class 3 Flammable Liquid Reflective Markings, Warning Triangles Compliant with GB 13392 and UN dangerous goods transport regulations
Explosion-proof Configuration Explosion-proof Electrical System, Spark Arrester, Static Grounding Strap Prevent static spark, eliminate fire and explosion risks
Emergency Devices Emergency Shut-off Valve, Emergency Pressure Relief Device, 4kg Dry Powder Fire Extinguisher x2 Standard for hazardous material emergency response
Protection Devices Front/Rear Anti-collision Buffer Device, Side Protection Fence, High-visibility Reflective Strips Meet road transportation safety requirements
Standard Equipment Cabin Interior Central Door Lock, Power Windows, Heating & Cooling Air Conditioning, Multi-function Steering Wheel Standard factory configuration
Lighting System Full LED Headlights, Hazard Warning Lights, Clearance Lights, Side Marker Lights Meet global road lighting requirements
Tank Standard Accessories Manhole Cover, Breathing Valve, Liquid Level Gauge, Oil Discharge Valve, Oil Delivery Hose, Static Grounding Strap Standard factory configuration
Safety Standard Configuration ABS, ASR, Exhaust Brake, Fire Extinguisher, Warning Triangle, Full Set of Hazardous Goods Markings Standard factory configuration
Optional Upgrades Tank Material Upgrade 304 Stainless Steel Lining, Titanium Alloy Anti-corrosion Coating For special corrosive flammable media
Loading/Unloading System Upgrade High-flow Oil Pump, Digital Flow Meter, Automatic Fueling Hose Reel Improve loading and unloading efficiency
Safety System Upgrade Tire Pressure Monitoring System (TPMS), Lane Departure Warning System (LDWS), Forward Collision Warning (FCWS) Meet higher global safety certification requirements
Cabin Upgrade High Roof Double Berth, Leather Seats, GPS Navigation, Reverse Camera Improve long-distance driving comfort
Global Customization Right-hand Drive (RHD) Modification, Overseas Emission Standard Adaptation, Custom Tank Volume, Multi-compartment Design For global market export, full export documents support
